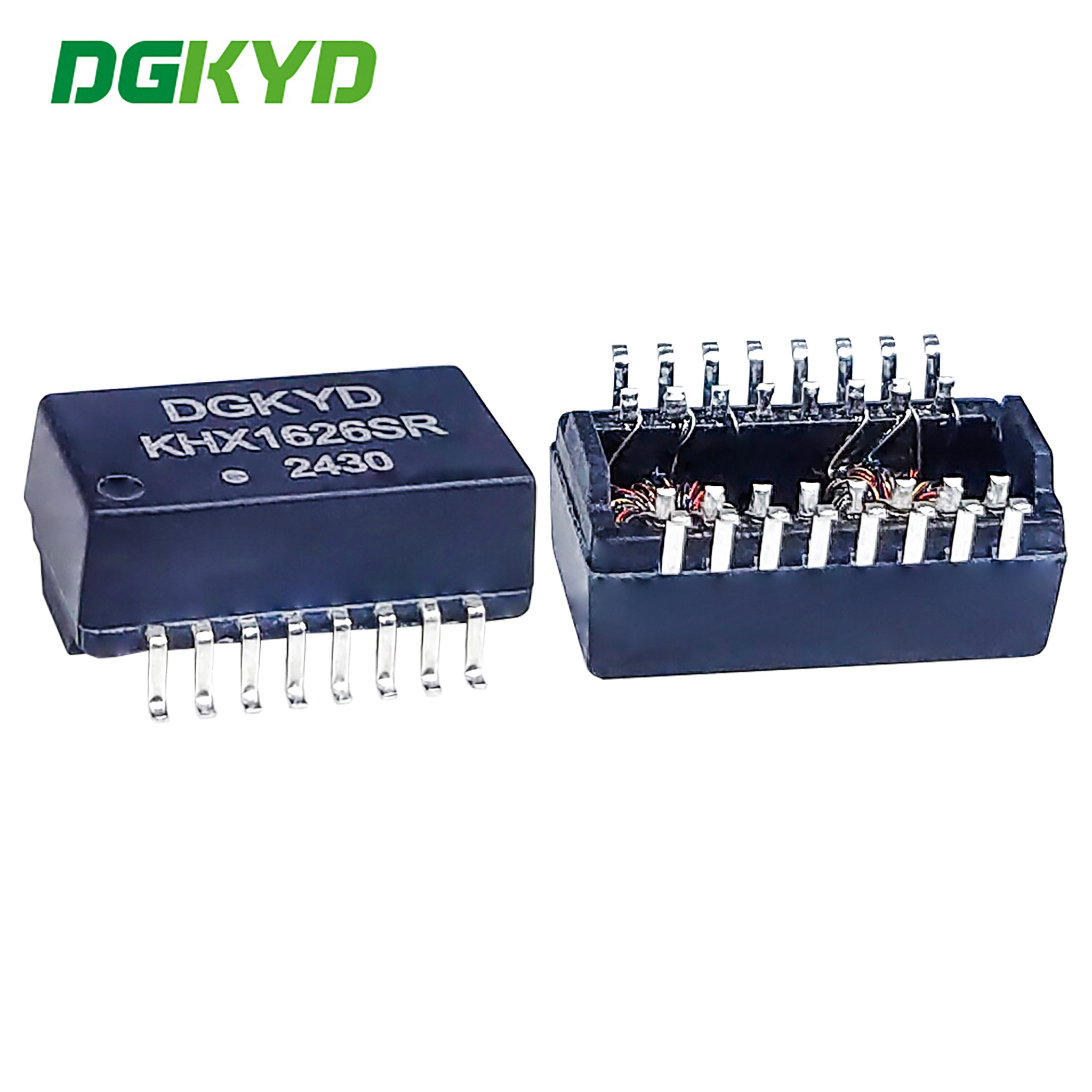

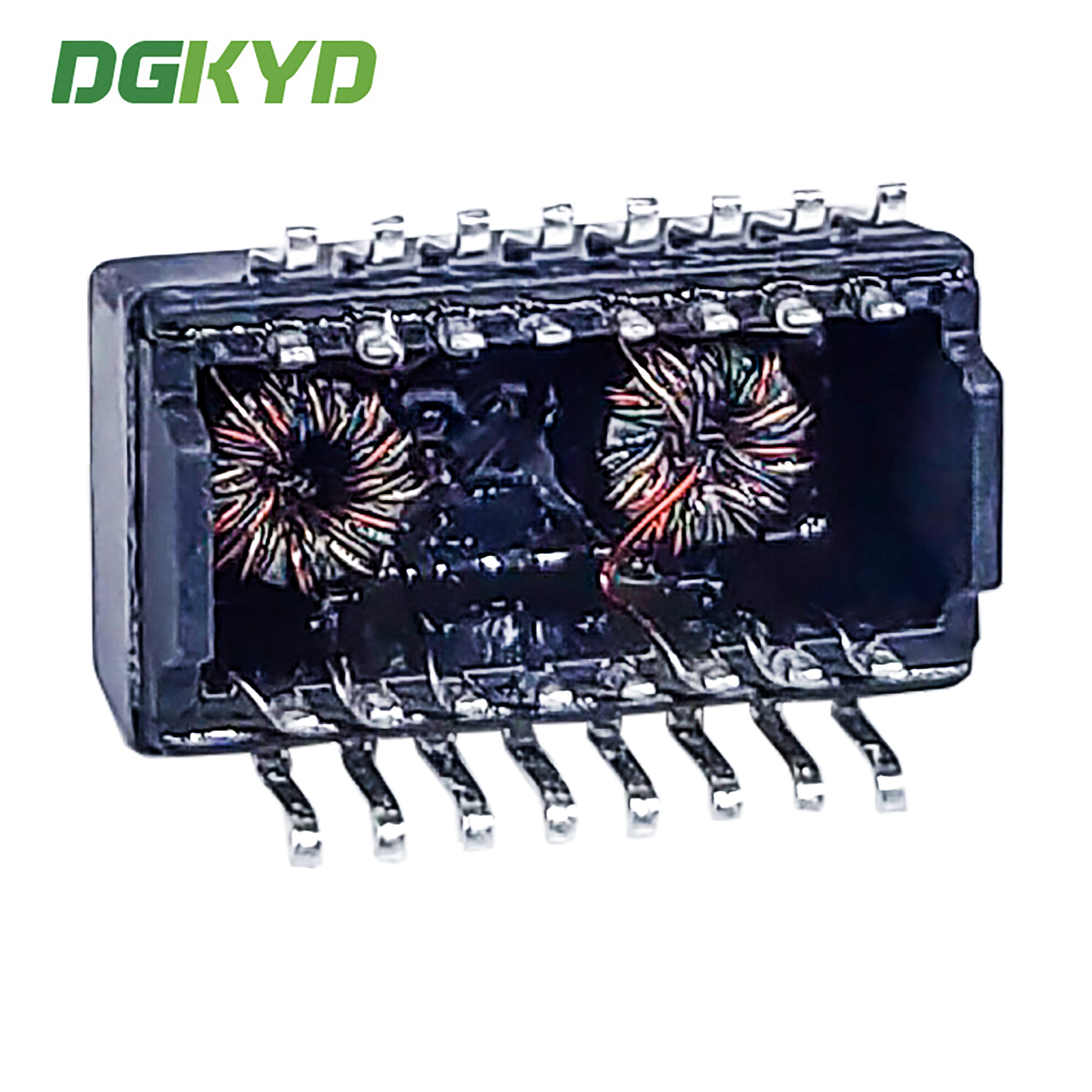

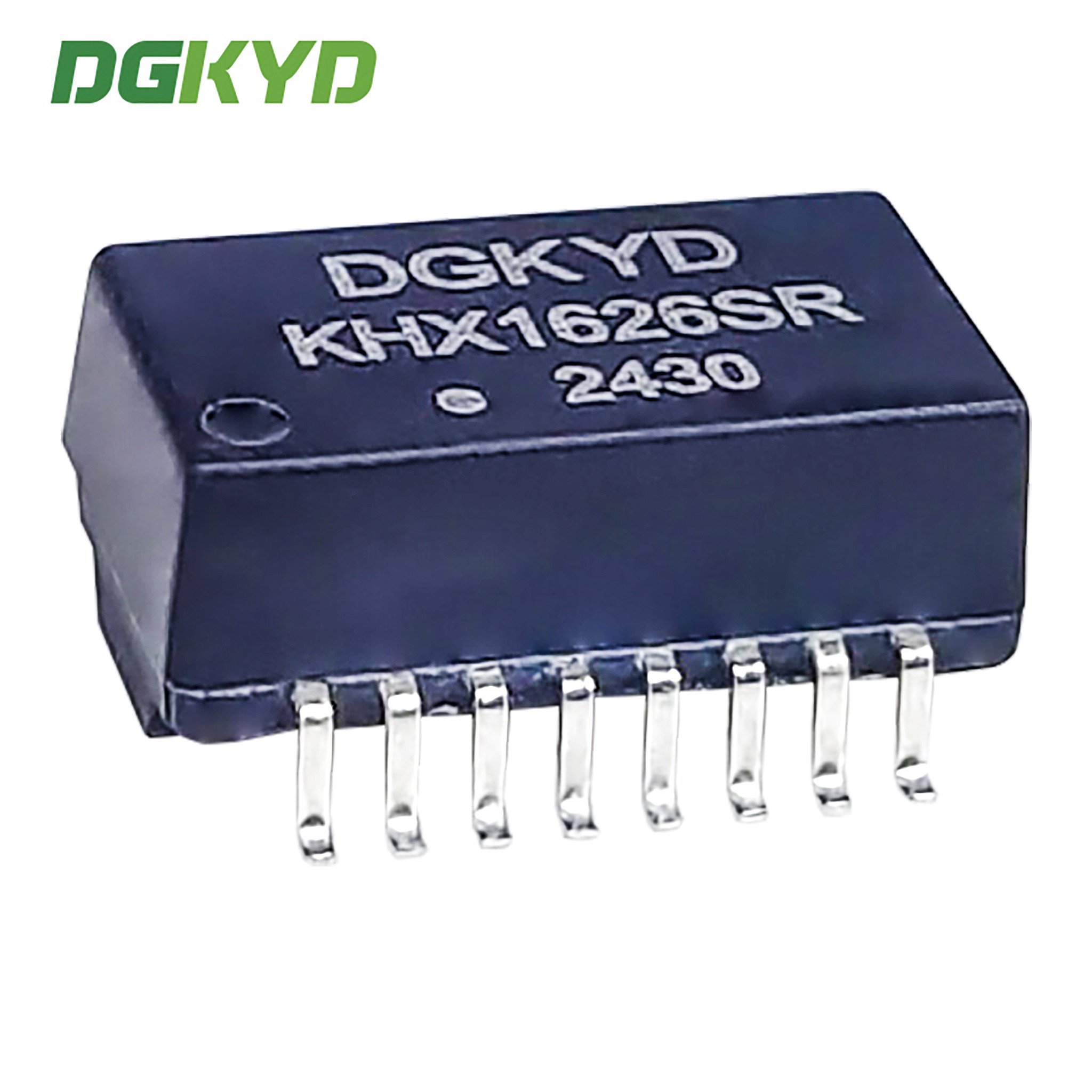

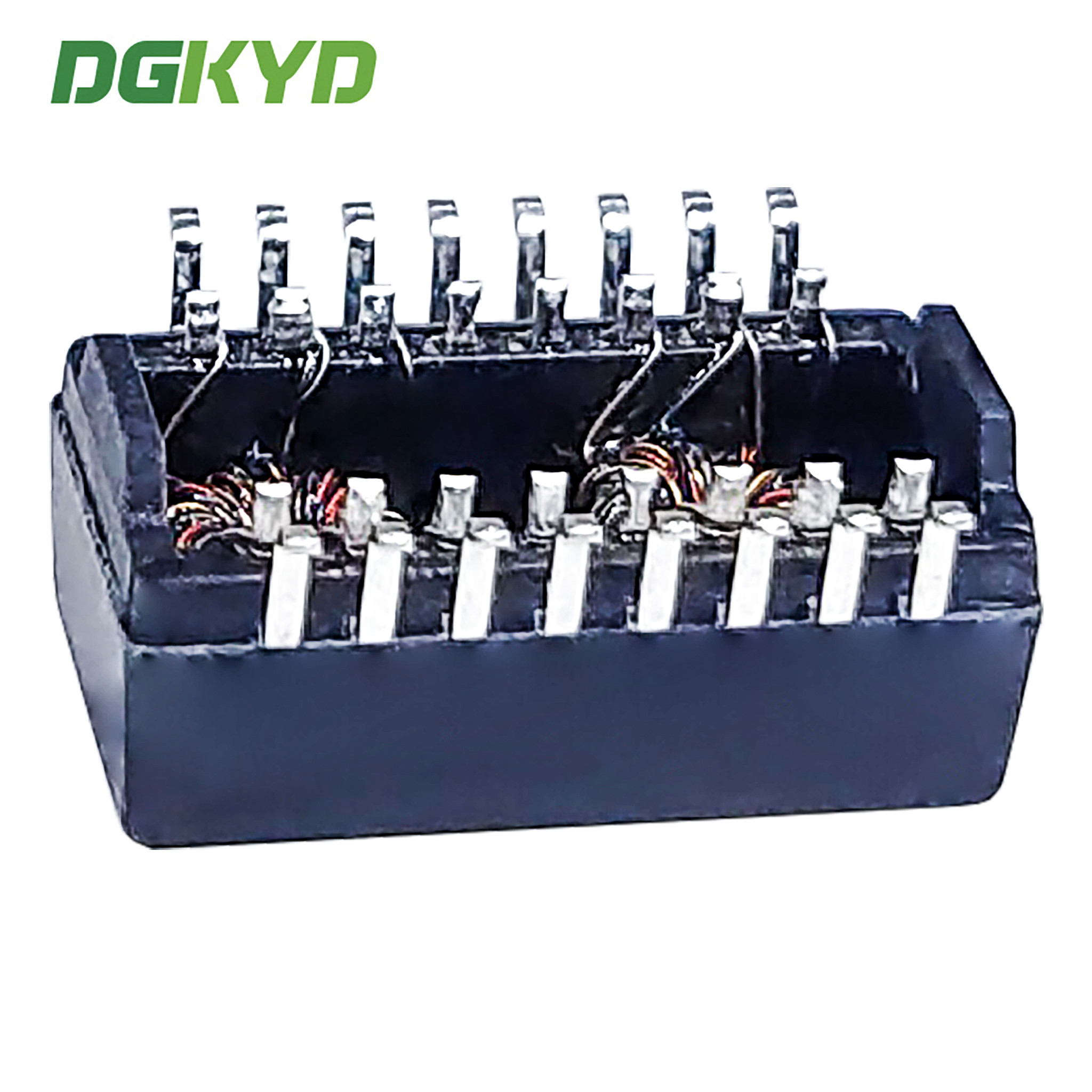

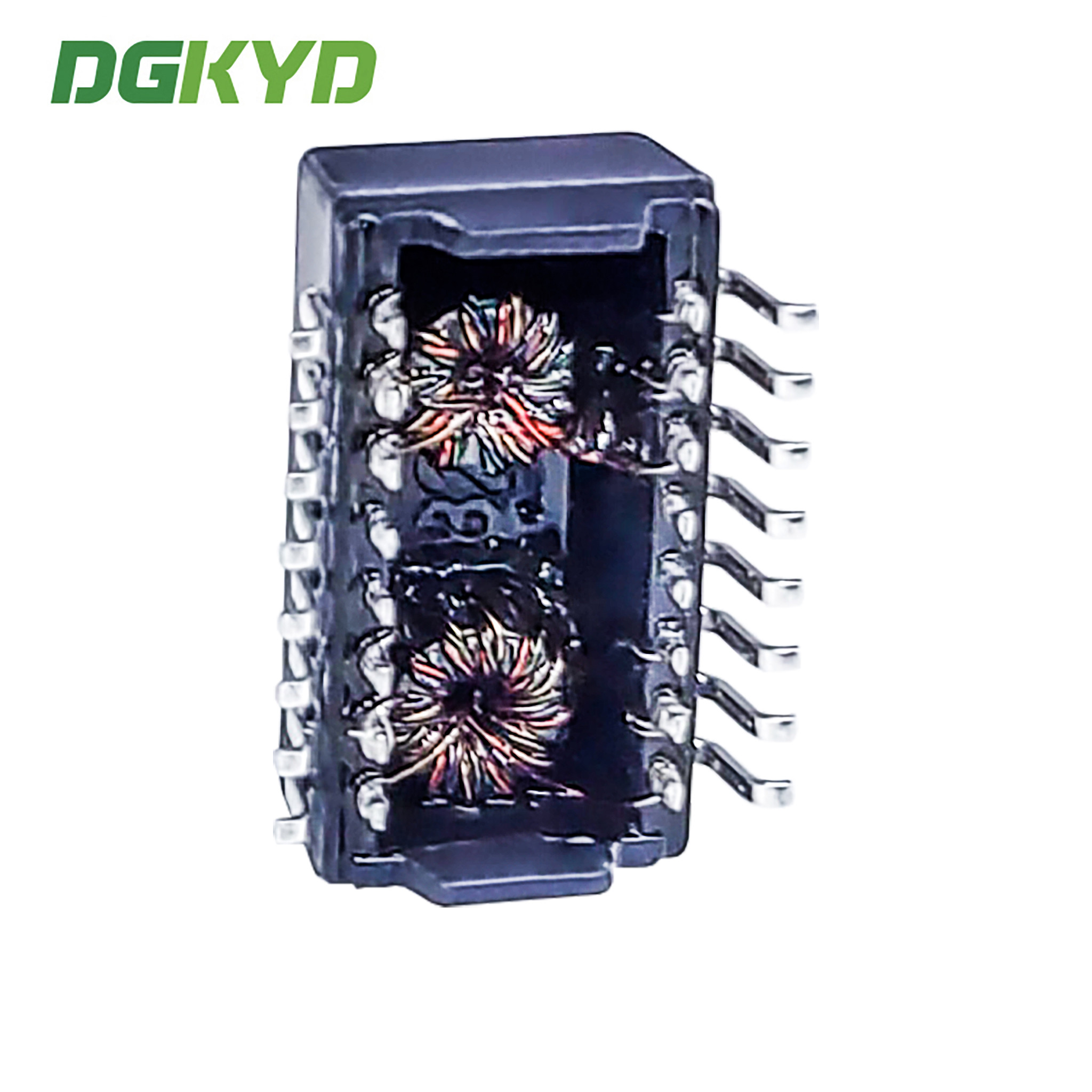

KHX1626SR 100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD

Contactar ahora

KHX1626SR 100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD

Cantidad de orden mínima :	Negociación	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	Bandeja en cartón	Tiempo de entrega :	10 días
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacidad de la fuente :	100K piezas/día

Lugar de origen:	Dongguan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	Se trata de un sistema de control de las emisiones de gases de escape.

Información detallada
Tipo de producto:	Transformador de Ethernet	Método de la encapsulación:	Empaquetado de la cinta del rollo
Estilo del soporte del PWB:	El SMD	Forma de las piezas:	Rectángulo
Cantidad del PIN:	16 PERNOS	LAN Transformer Speed:	100 BASE-TX
Temperatura de funcionamiento:	-40~+85°C opcional	Cantidad de la base:	2 juegos
Resaltar:	Transformador Ethernet SMD , Transformador de red de filtro de aislamiento Ethernet , Transformador de red KHX1626SR

Descripción de producto

KHX1626SR100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD

Product Specification Document

KHX1626SR.pdf

Parameters

Part Number	KHX1626SR	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type	Transformer Modular	Transformer Style	Discrete Transformer
Core Quantity	2 pairs	PIN quantity	16
Lan Transformer Speed	10/100 BASE-TX	Mounting Type	SMD

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω
