RJ45 Ethernet Connector 8P8C Single Port with LED 6u Gold Plating

Cantidad de orden mínima :	1	Precio :	$0.19-0.32

Lugar de origen:	Guangdong, China	Número de modelo:	En el caso de las personas que se encuentran en una situación de riesgo, la autoridad competente deb

Información detallada
Tipo de conector:	RJ45	Género:	Femenino
Material de alojamiento:	PA46	Contactor:	Ouro 6 u/15 u/30 u/50 u
Material del escudo:	Aleación de cobre preplated con el níquel	Color LED:	Verde y amarillo
Estilo del cierre:	Arriba	Número de contactos:	8
Ángulo del soporte del PWB:	Entrada lateral	Estilo del soporte:	A través del agujero
Velocidad del funcionamiento:	10/100/1000 base-T	Configuración de puerto:	soltero
Jack Configuration:	1 x 1	Terminales por puerto:	8
Material base de contacto:	Bronce de fósforo
Resaltar:	RJ45 Ethernet Connector 8P8C single port , RJ45 connector with LED indicator , gold plated RJ45 single port

Descripción de producto

High Quality 1x1 Single-Port 8P8C RJ45 Ethernet Connector LED Strip Shielding Plug & Jack Communication Interface with No Filter

Premium quality shielded RJ45 modular jack connector with LED indicators, designed for high-performance network applications. Features 8P8C configuration, panel grounding options, and gold-plated contacts for reliable connectivity.

Product Specifications

Part Number	KRJ-56S8P8C1X1YGENL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	Without Filter
LED Option	With LED
LED Color	Green & Yellow
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

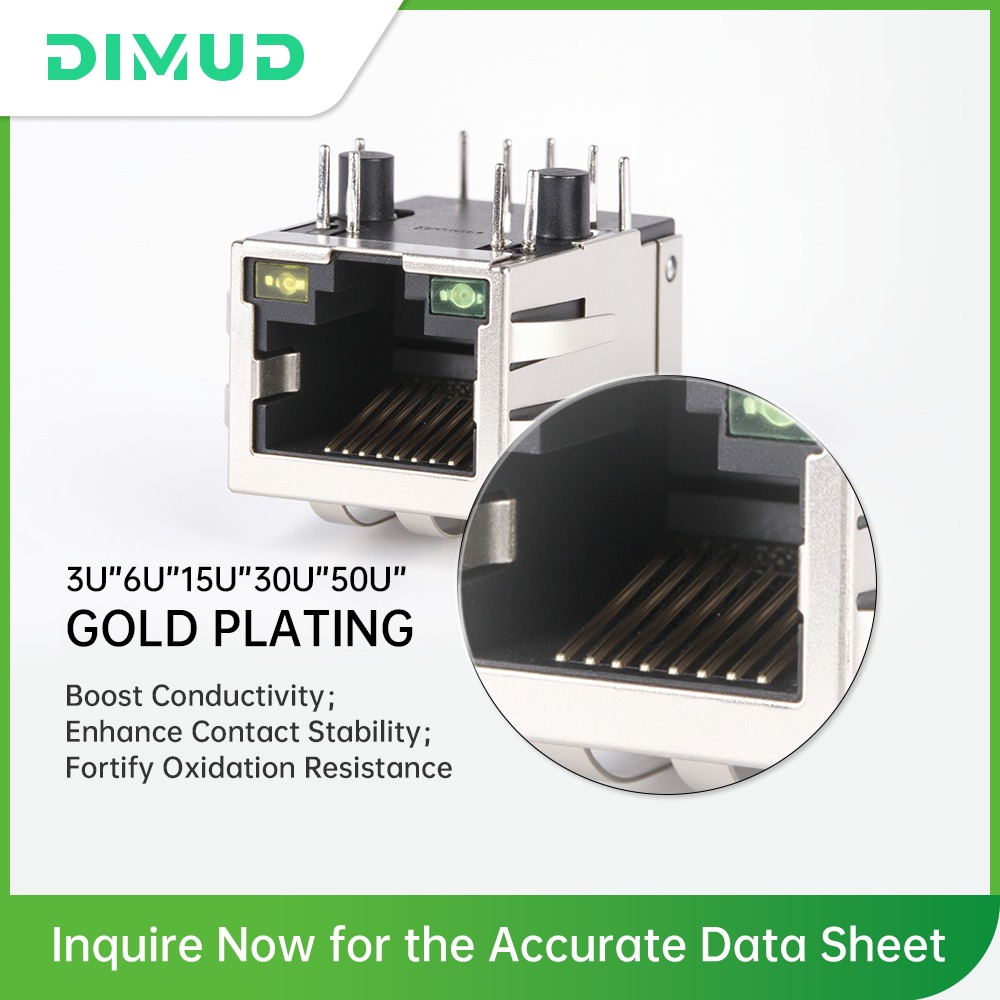

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA46
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

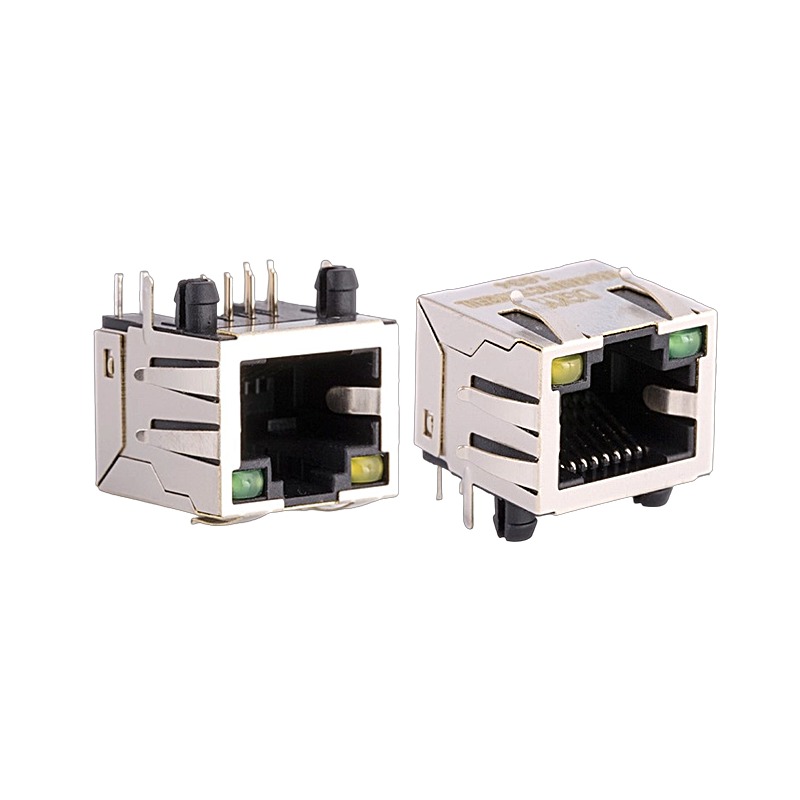

Product Images
