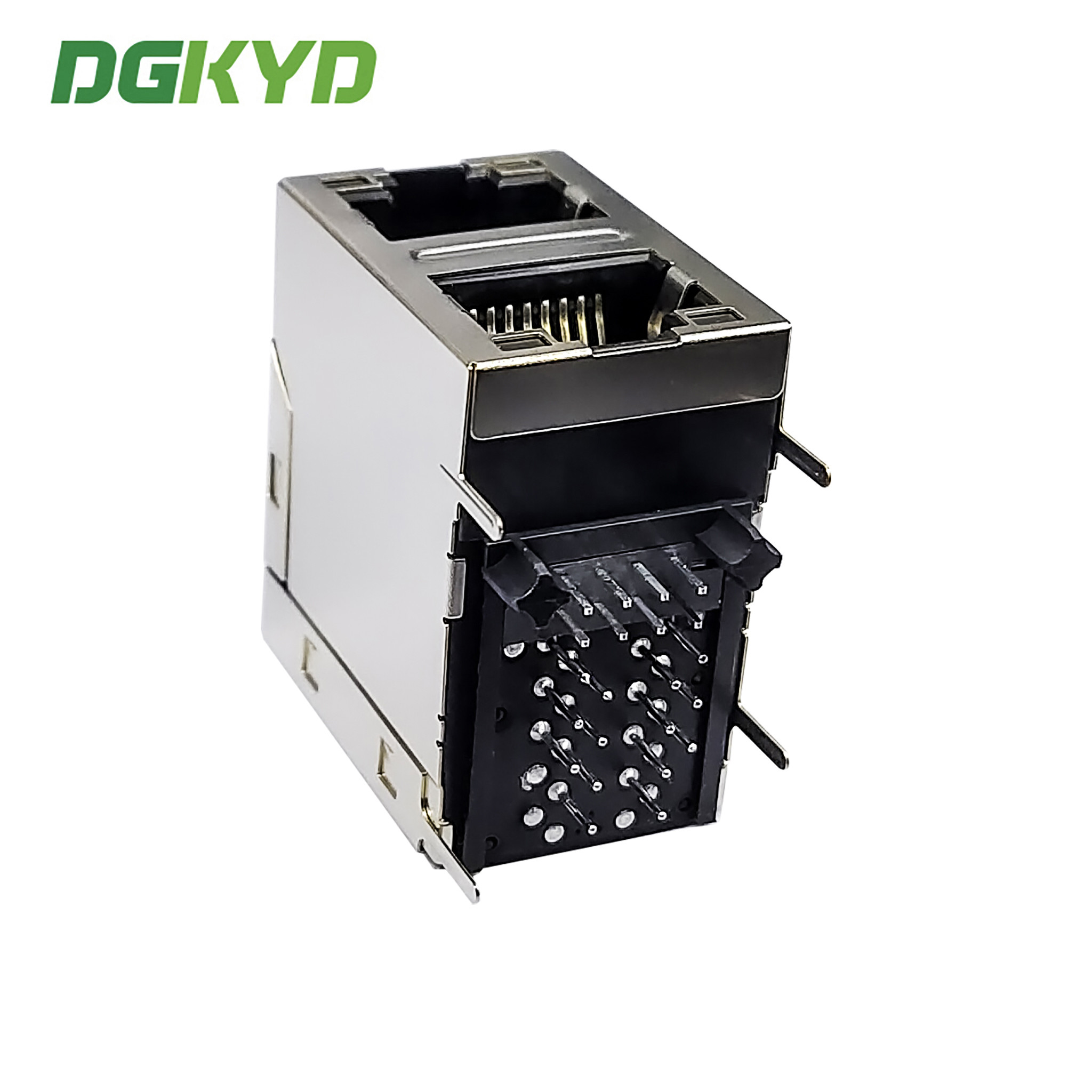

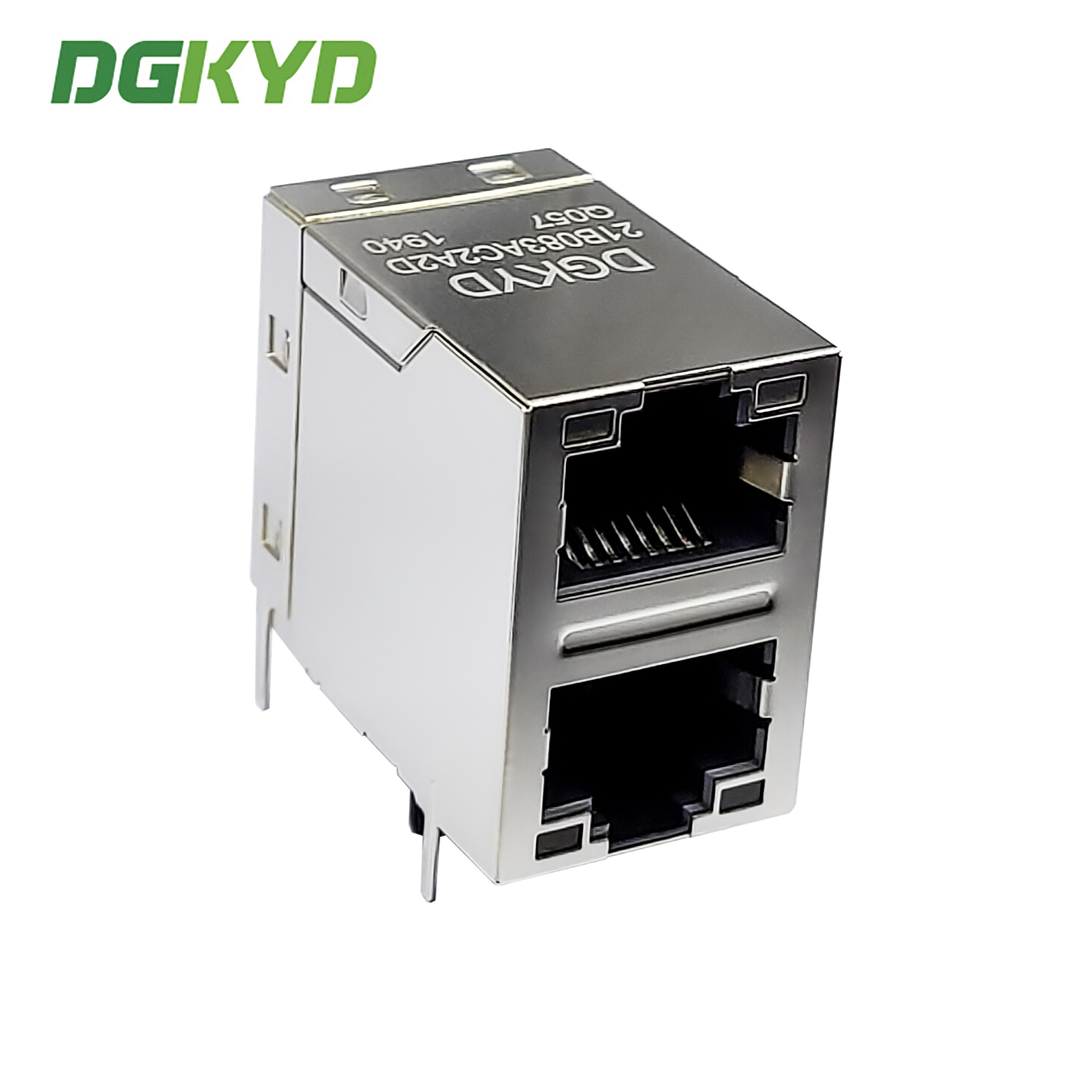

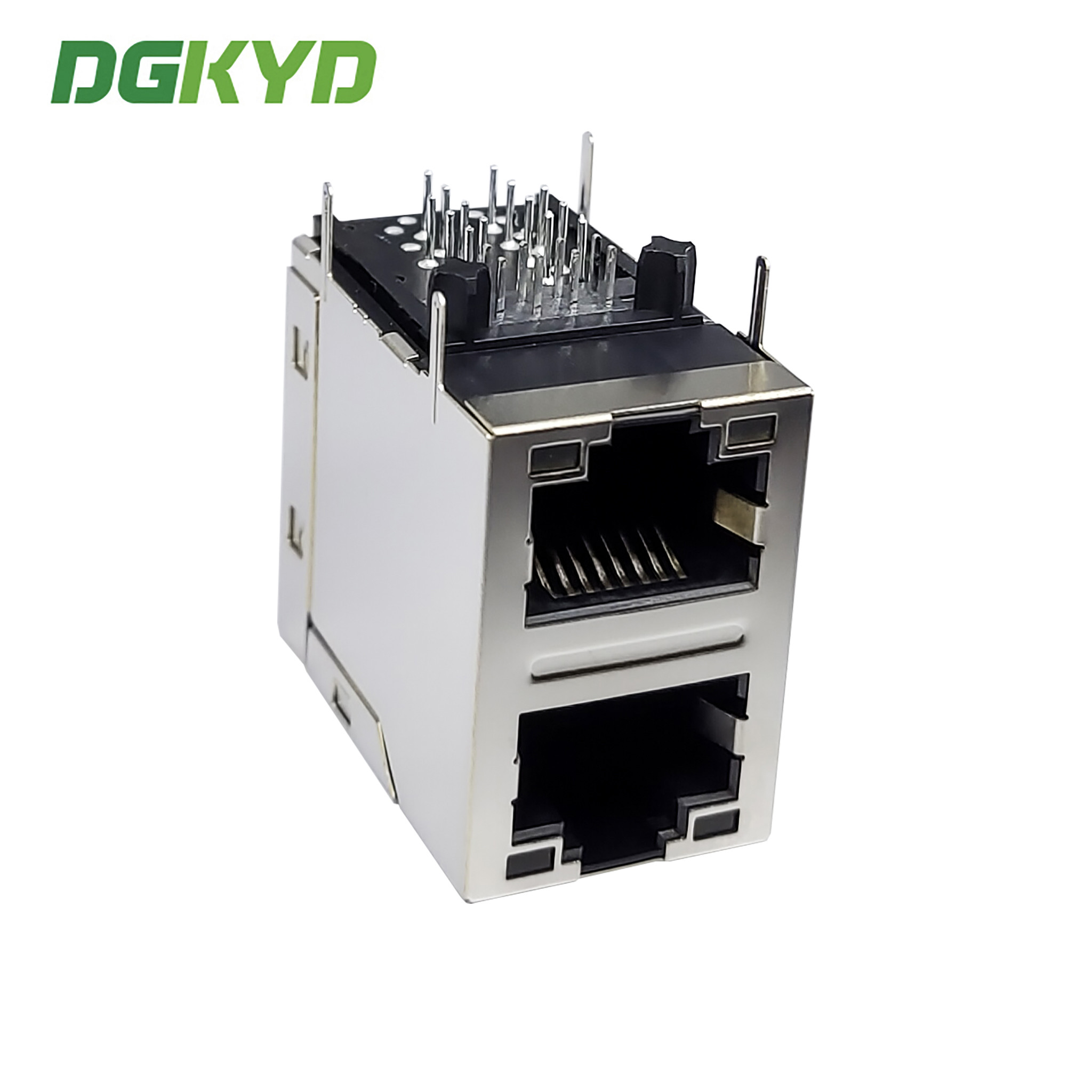

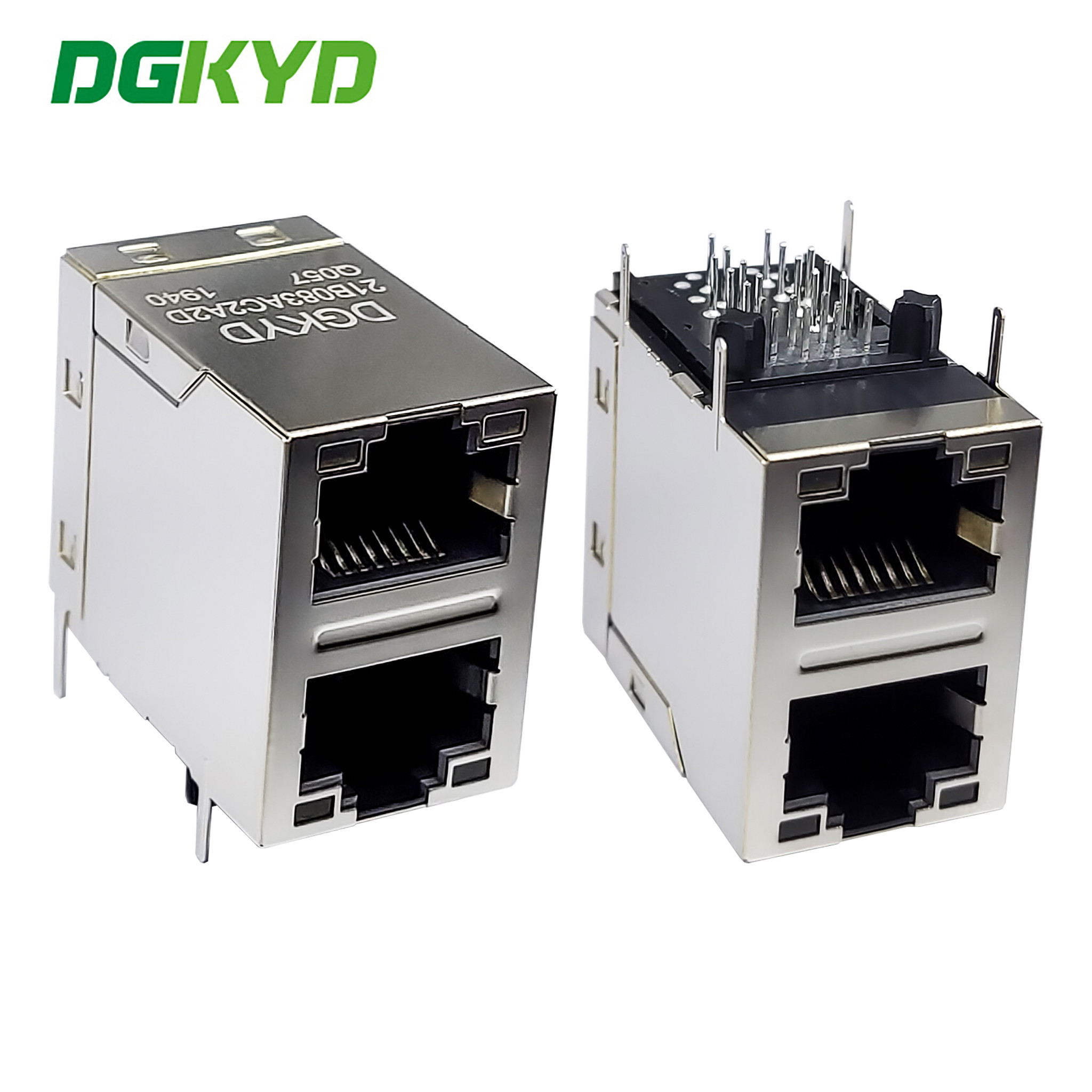

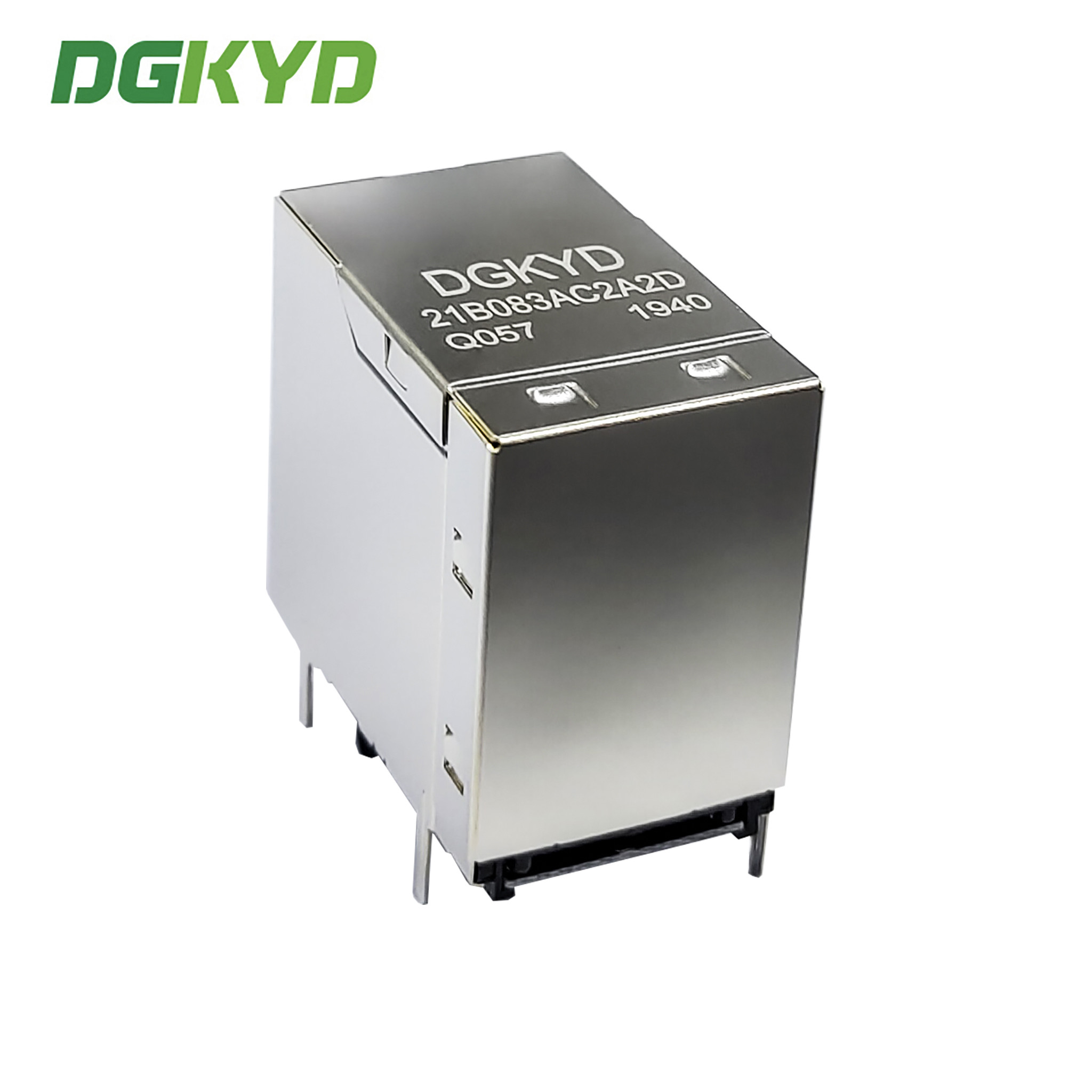

Multi port Ethernet filter RJ45 8P7C 100Mbps connector 6U 2X1 modular socket RJ45 network port connection DGKYD21B083AC2A2DQ057

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	bandeja en cartón	Tiempo de entrega :	10 días
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacidad de la fuente :	100 000 piezas por día

Lugar de origen:	DongGuan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	El objetivo de las medidas de seguridad es garantizar la seguridad de los vehículos.

Información detallada
Jack modular y tipo de interfaz del enchufe:	RJ45 con transformador	Configuración portuaria:	Puerto doble
Estilo del conector:	¿ Qué pasa?	Sexo:	Mujeres
Escondido:	- ¿ Qué?	Materiales para la vivienda:	PA66 Poliéster
Indicador de situación:	Verde/amarillo	Control por voz:	Asistente de Google, Alexa de Amazon
El color:	Negro	Categoría:	Las conexiones telefónicas
El material:	El PA66	Terminado:	El DIP
Temperatura de funcionamiento:	-40°C~+85°C	Conexión Ethernet:	100 BASE-T/TX
Tipo de Insetion:	Entrada lateral	El tipo:	RJ45
Resaltar:	RJ45 2X1 modular socket , 100Mbps RJ45 modular socket , Multi port 2X1 RJ45 connector

Descripción de producto

Product Specification Document

DGKYD21B083AC2A2DQ057.pdf

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

Parameters

Part Number	DGKYD21B083AC2A2DQ057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	With Filter	LED Option	With LED
LED Color	Grenn-Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/ BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Double Ports	Number of Positions	7
Jack Configuration	2X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA66 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
