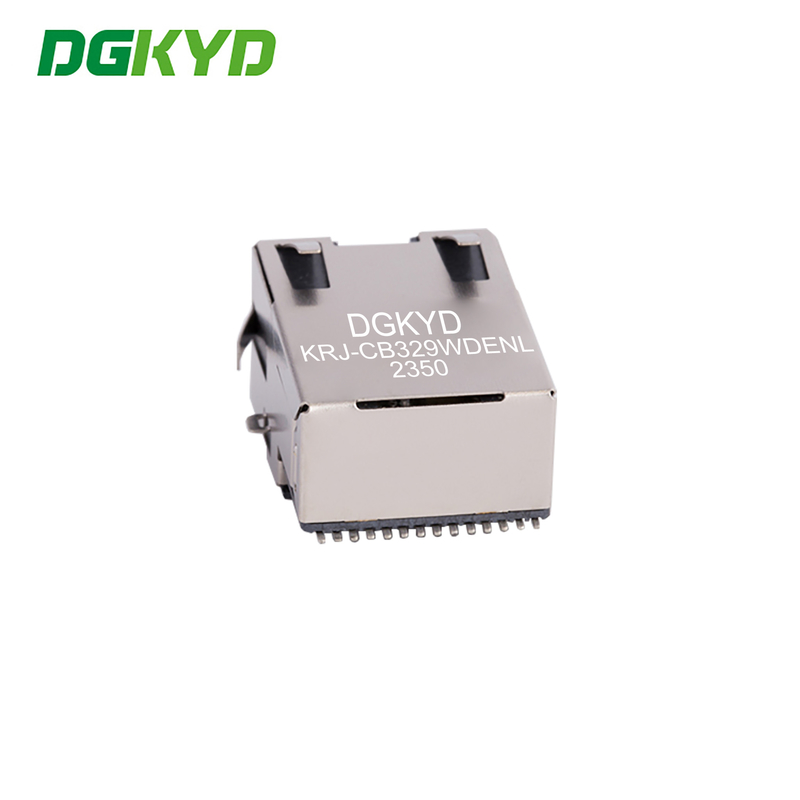

KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	bandeja en cartón	Tiempo de entrega :	10 días
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacidad de la fuente :	100 000 piezas por día

Lugar de origen:	DongGuan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	Se trata de un sistema de control de las emisiones de gases.

Información detallada
Altura de Rroduct:	11.35m m	Nombre del producto:	conector adicional del perfil bajo rj45
Aplicación:	Los PCB	Sexo:	Mujeres
Color del LED:	No incluido	Plastificación de contacto:	Glod que platea 6u/15u/30u/50u
Material de la carcasa:	Negro de LCP	filtro:	Con el filtro
El cierre:	TAB arriba	Escudo:	Escudo del metal
El pin:	10 pines
Resaltar:	SMD RJ45 pcb connector , Gigabit Integrated RJ45 pcb connector , Gigabit Integrated rj45 Ethernet connector

Descripción de producto

KRJ-CB329WDENL Sink Plate RJ45 Connector Gigabit Integrated Ethernet Filter SMD

Product Specification Document

Parameters

Part Number	KRJ-CB329WDENL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Descriptions:

Quick detail:

1X1 Heavy plate rj45 Tab-down

Rj45 with transformer and contact area with”6U”Gold

SMD RJ45 without led and connector board of high is 8.85mm

Length: 21.5mm

90degree
