Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB

Cantidad de orden mínima :	Negociable	Precio :	Negociable
Detalles de empaquetado :	bandeja en cartón	Tiempo de entrega :	7-14 días
Condiciones de pago :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Capacidad de la fuente :	60000 piezas por día

Lugar de origen:	DongGuan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Número de modelo:	El número de unidades de seguridad de las unidades de seguridad de las unidades de seguridad de las

Información detallada
Nombre del producto:	RJ45 conector Jack With Shield	Tipo de conector:	¿ Qué pasa?
Aplicación:	PC, enrutador, red de hub USB RJ45 etc.	Sexo:	Mujeres
Transformador:	RJ45 sin el transformador	PERFIL DE LA ALTURA:	perfil bajo adicional
Resaltar:	Countersunk 4.2 SMT RJ45 Connector , RJ45 Connector Jack With Shield , Single RJ45 Connector Jack

Descripción de producto

RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c

Paramters

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NONE
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	SMT
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	L-Yellow / R-Green
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	LCP UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Drawing

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 0

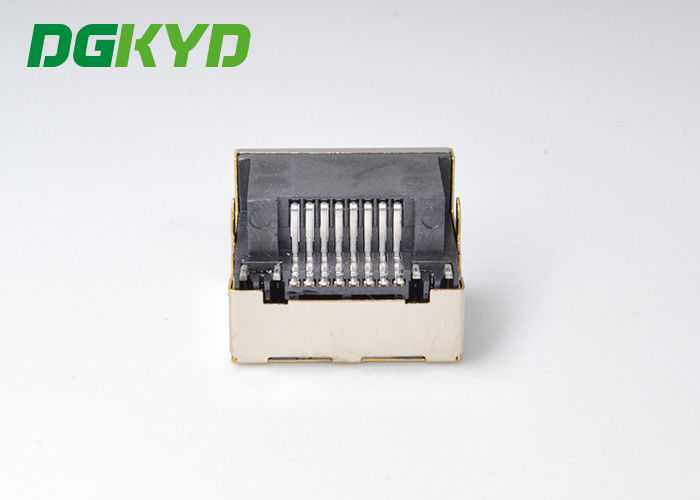

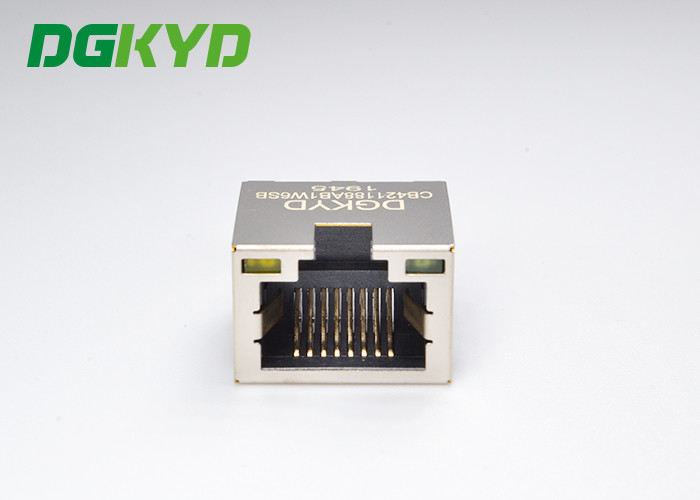

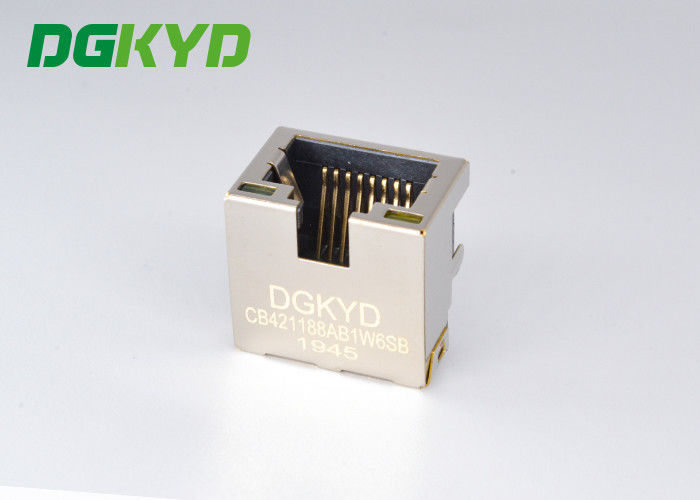

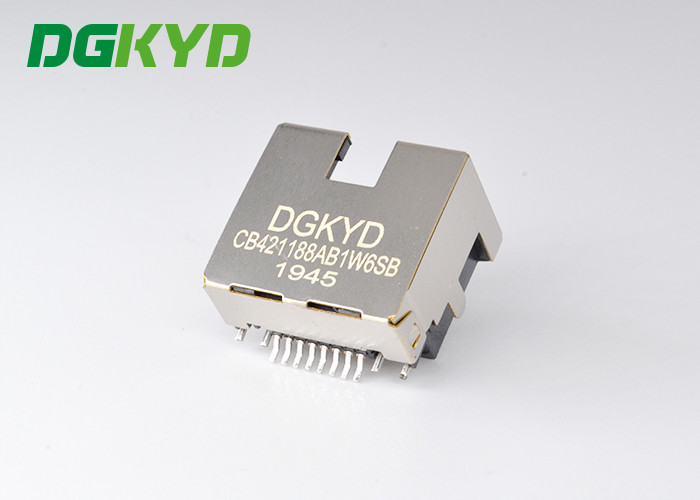

Pictures

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 1
