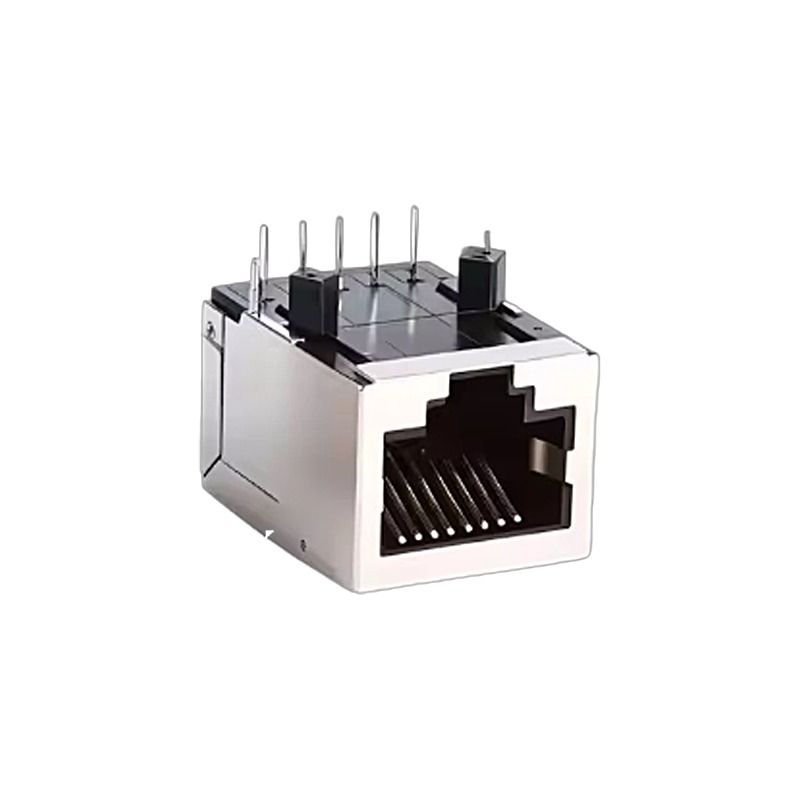

DGKYD RJ45 Connector 8P Single Port Shielded with Transformer

Cantidad de orden mínima :	1	Precio :	$0.45-0.70

Lugar de origen:	Guangdong, China	Número de modelo:	Dgkyd111b044gwa1d

Información detallada
Tipo de conector:	RJ45	Tipo de instalación:	A través del agujero
Material de contacto:	Bronce de fósforo	Protector:	Sí
Número de puertos:	1	Terminado el contacto:	6U/15U30U
Orientación:	lado	Número de filas:	1
Patas:	8p	Material de alojamiento:	NEGRO DE PBT
Contactor:	Oro 6U ''/ 15U "/ 30U"/ 50U "	Escudo del metal:	FÓSFORO ESTAÑADO BROZNE
Opción LED:	Sin llevado	Estilo del cierre:	Abajo
Número de contactos:	8
Resaltar:	shielded RJ45 connector with transformer , single port RJ45 connector , 8P shielded Ethernet connector

Descripción de producto

Premium 1x1 Single Port RJ45 Ethernet Connector Jack

PCB Mount Shielded Transformer with LED Indicator for reliable network connections. Designed for professional applications requiring stable Ethernet performance.

Product Specifications

Part Number	DGKYD111B044GWA1D
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certifications	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard (Down)
Filter	With Filter
LED Option	Without LED
Shielded	Yes
Performance Speed	100 BASE-T
Port Configuration	Single (1x1)
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
Contact Plating	Gold 6μ
Housing Material	PBT Polyester (Black, UL 94V-0 rated)
PCB Mounting	Through Hole (Side Entry/Right Angle)
