Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Cantidad de orden mínima :	1	Precio :	$0.51-0.85

Lugar de origen:	Guangdong, China	Nombre de la marca:	DGKYD
Número de modelo:	KRJ-406CNL

Información detallada
Tipo:	RJ45	Género:	Femenino
Material de alojamiento:	NEGRO DE PBT	Contactor:	Oro 6U ''
Material del escudo:	Aleación de cobre preplated con el níquel	Opción LED:	con LED
Color LED:	Verde y amarillo	Número de contactos:	8
Opción del transformador:	Con el transformador	Velocidad del funcionamiento:	10/100 Base-T
Configuración de puerto:	soltero	Método de terminación:	A través de agujeros-presión-fit
Estilo de montaje:	A través del agujero	Orientación de montaje:	Entrada lateral (ángulo recto)
Grado de la inflamabilidad de la UL:	UL 94V-0
Resaltar:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

Descripción de producto

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel

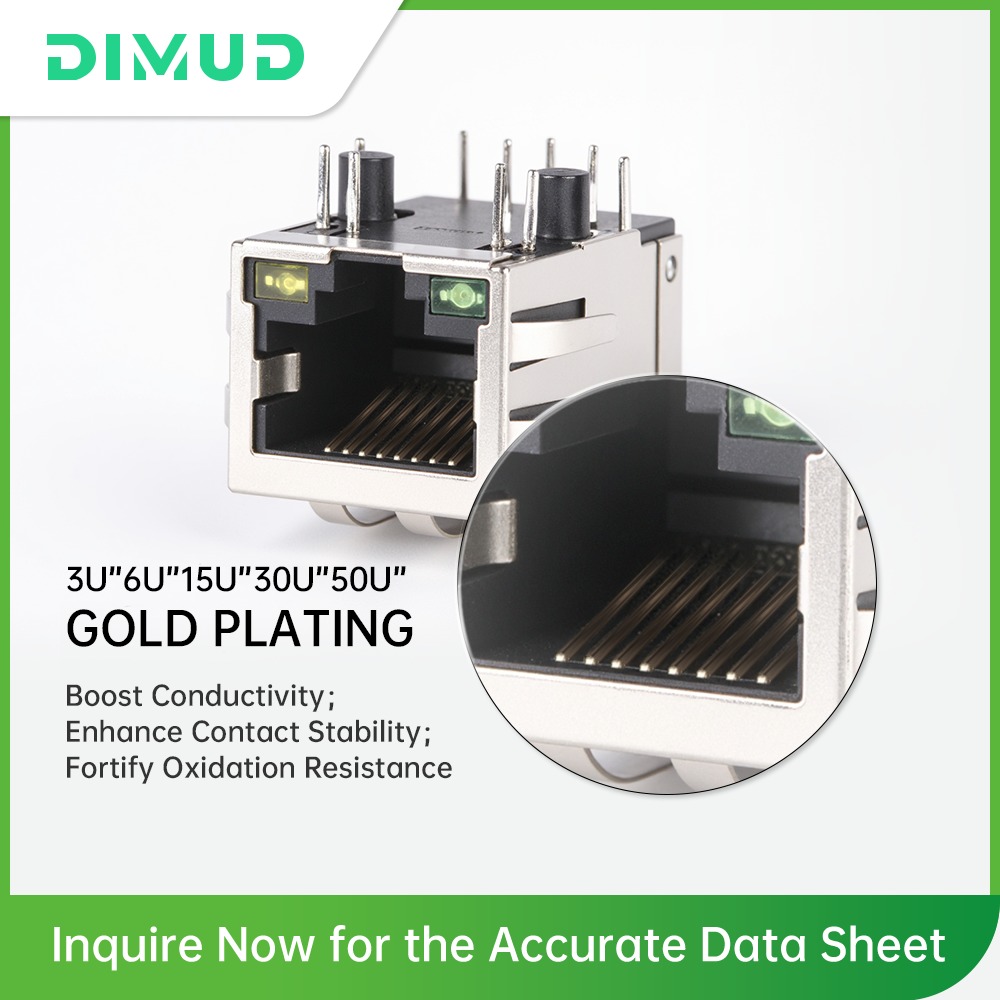

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0

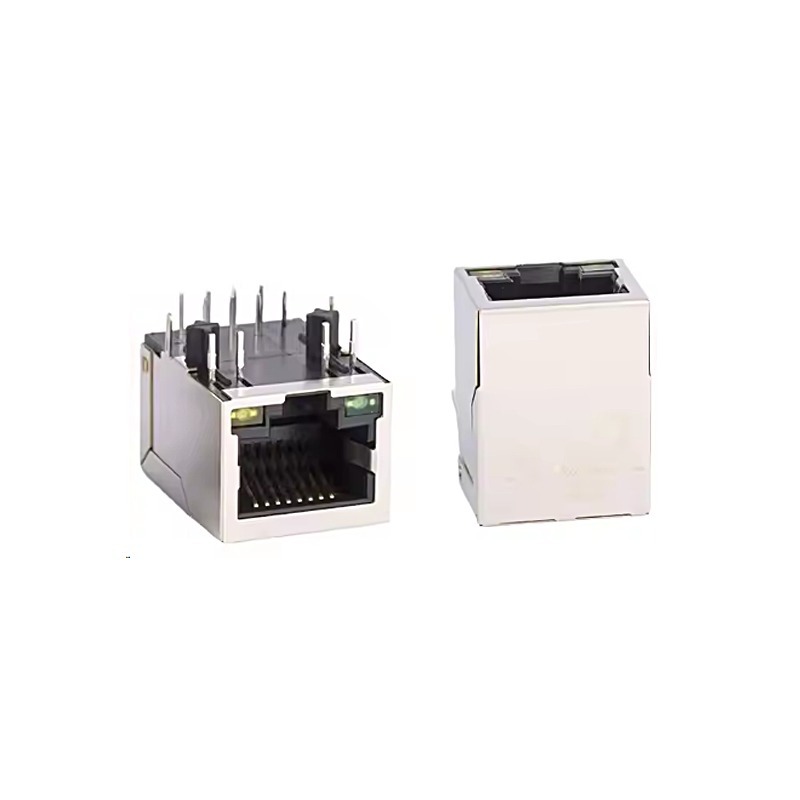

Product Images
