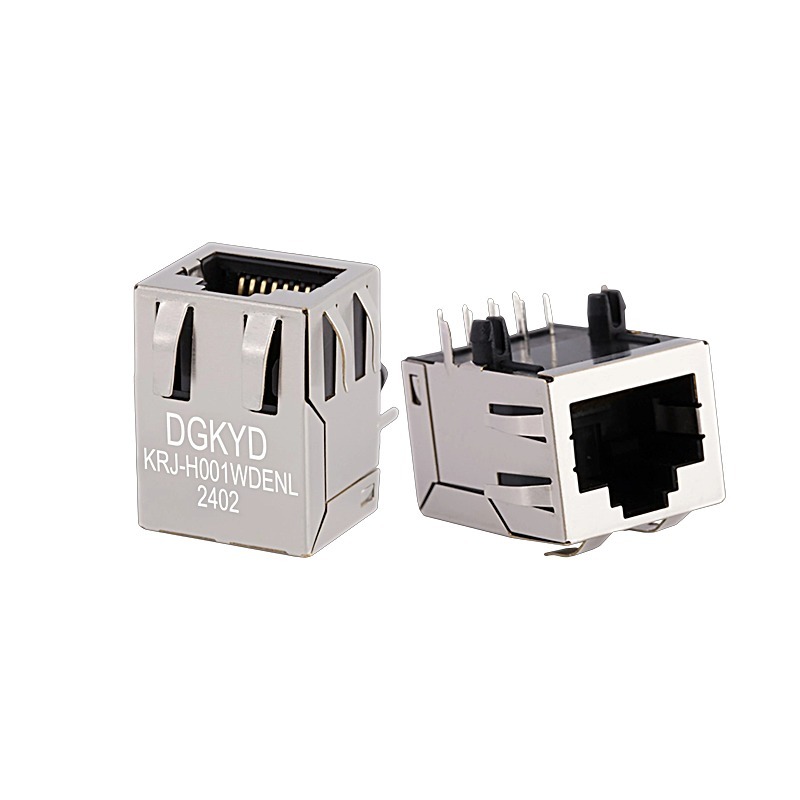

DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount

Cantidad de orden mínima :	1	Precio :	$0.47-0.78

Lugar de origen:	Guangdong, China	Número de modelo:	Se trata de un sistema de control de las emisiones de gases de escape.

Información detallada
Tipo:	RJ45	Embalaje:	ADEREZO
Género:	Femenino	Material de alojamiento:	NEGRO PA66
Opción LED:	Sin llevado	Pestillo:	Arriba
Número de puertos:	1	Número de contactos:	8
Ángulo del soporte del PWB:	Entrada lateral	Estilo del soporte:	A través del agujero
Velocidad:	gato5	Velocidad del funcionamiento:	10/100 Base-T
Protegido:	Sí	Material del escudo:	Aleación de cobre preplated con el níquel
Material de enchapado de contacto:	Ouro 6 u/15 u/30 u/50 u
Resaltar:	shielded RJ45 single port connector , side entry PCB mount RJ45 , 100M RJ45 connector with warranty

Descripción de producto

Single-Port 100M RJ45 Network Port Socket Connector Transformer Shielded Non-LED Ethernet Connectors

Product Specifications

Part Number	KRJ-H001WDENL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	Without LED
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA66
Housing Color	Black
UL Flammability Rating	UL 94V-0

Key Features

Single-port RJ45 connector with transformer for 100M Ethernet networks
Shielded design for enhanced EMI protection
Non-LED version for applications where indicator lights aren't required
Through-hole PCB mounting with right-angle orientation

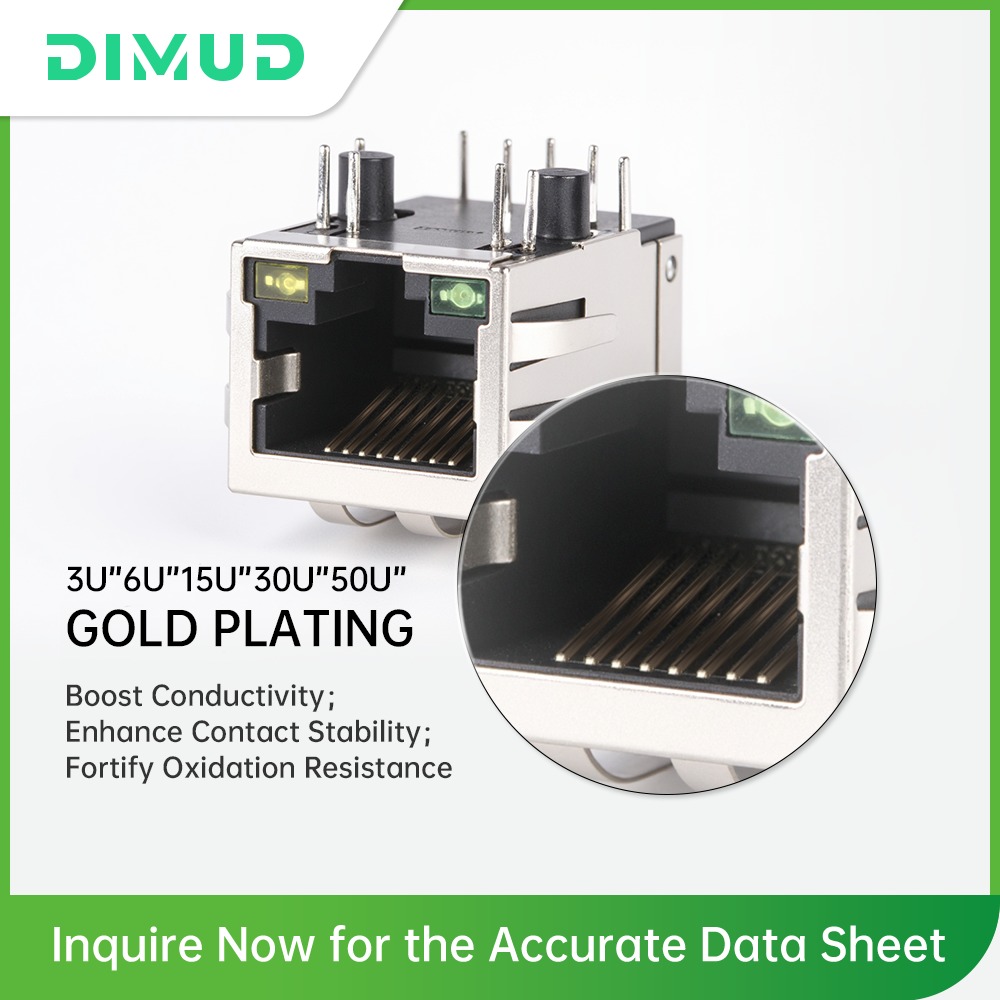

High-quality gold-plated contacts for reliable connections
Compliant with multiple international certifications including CE, UL, and RoHS
