1-Port RJ45 Connector 10P PBT with Filter and Shielding

Cantidad de orden mínima :	1	Precio :	$0.60-1.80

Lugar de origen:	Guangdong, China	Nombre de la marca:	DGKYD
Número de modelo:	DGKYD111Q066HWA1D

Información detallada
Tipo de conector:	RJ45	Protector:	Sí
Número de puertos:	1	Terminado el contacto:	6U/15U/30U
Orientación:	lado	Número de filas:	1
Patas:	10 peniques	Material de contacto:	Bronce de fósforo
Material de alojamiento:	Poliéster de PBT	Filtrar:	Con el filtro
Velocidad del funcionamiento:	10/100/1000 base-T	Configuración de puerto:	soltero
Terminales por puerto:	8	Orientación del montaje del PWB:	Entrada lateral (ángulo recto)

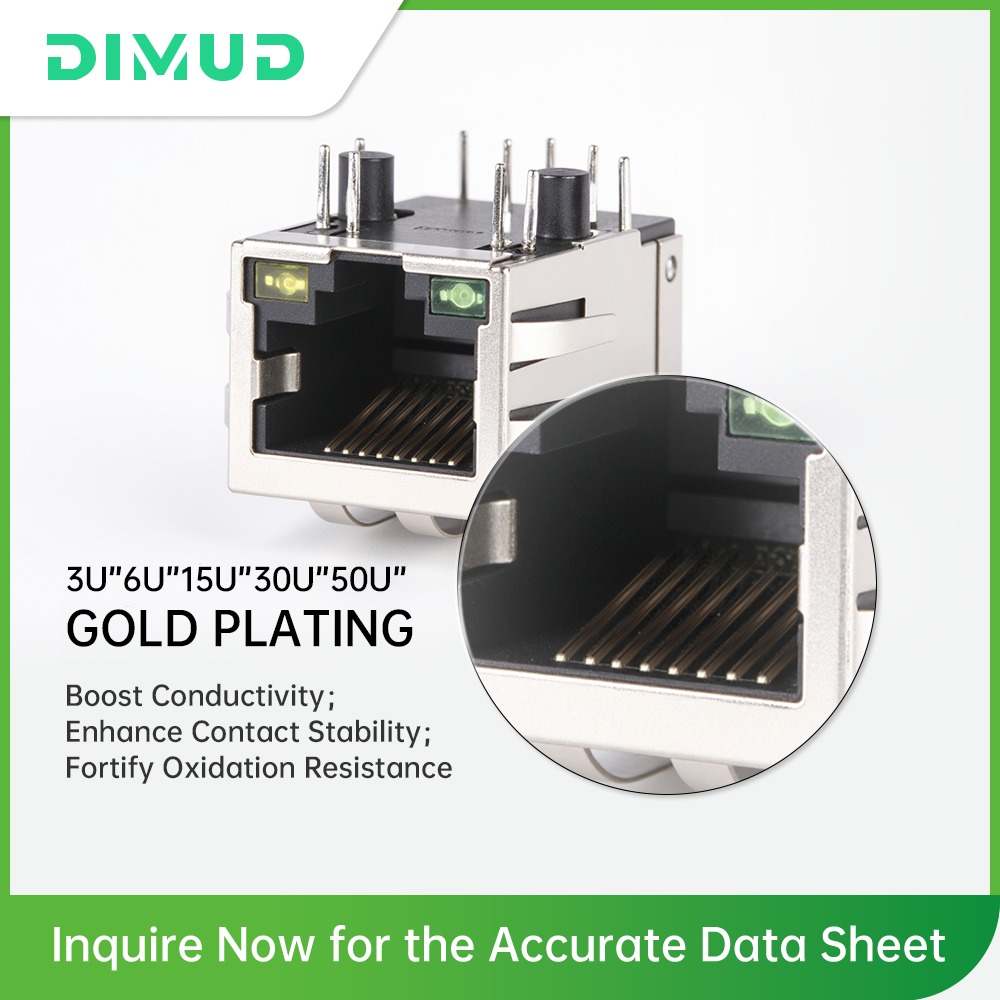

Enchapado de apareamiento de contacto:	Ouro 6 u/15 u/30 u/50 u
Resaltar:	1-port RJ45 connector with filter , shielded RJ45 single port connector , PBT RJ45 connector with shielding

Descripción de producto

High-Speed 1x1 Single-Port Gigabit Network Connector

10PIN PBT Material Integrated Filtering Shielding Non-Lit for RJ45

Product Specifications

Technical Details

Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
UL Flammability Rating	UL 94V-0

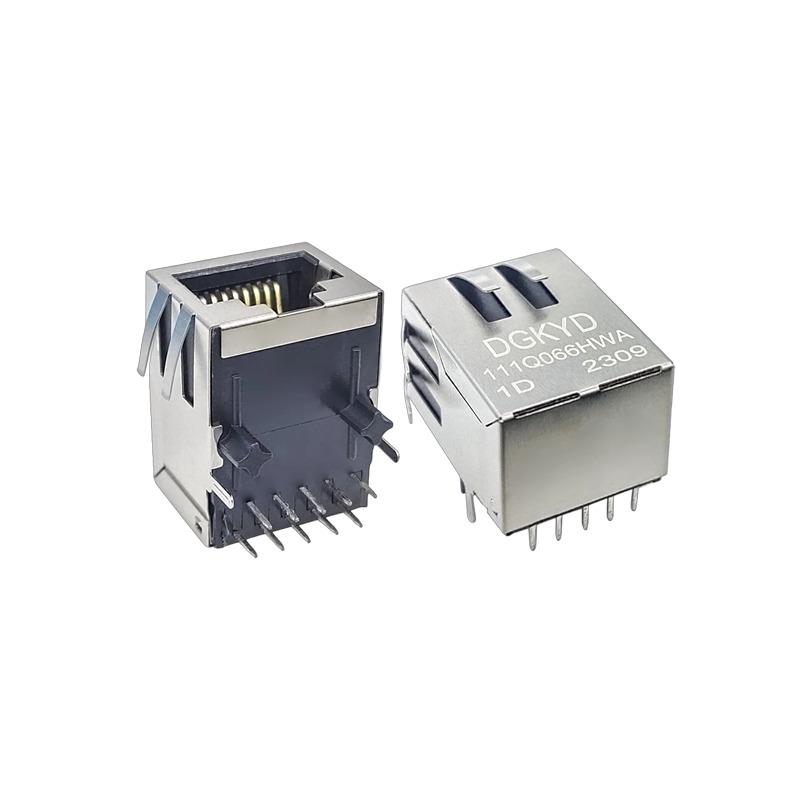

Product Images

Key Features

etiqueta:

1-port RJ45 connector with filter
