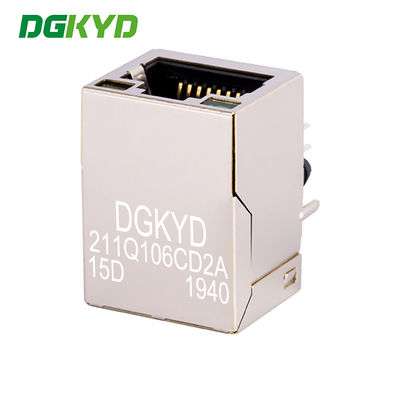

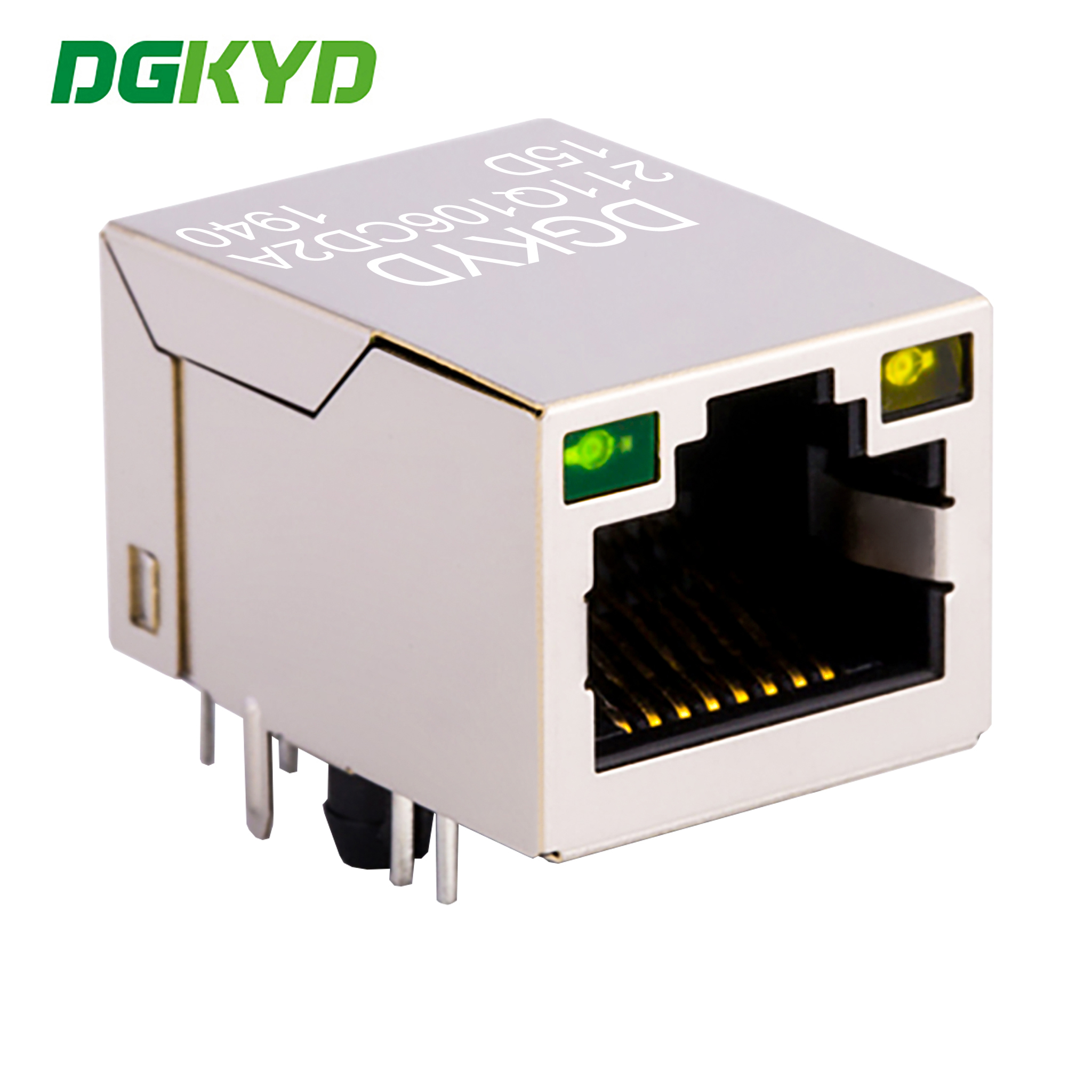

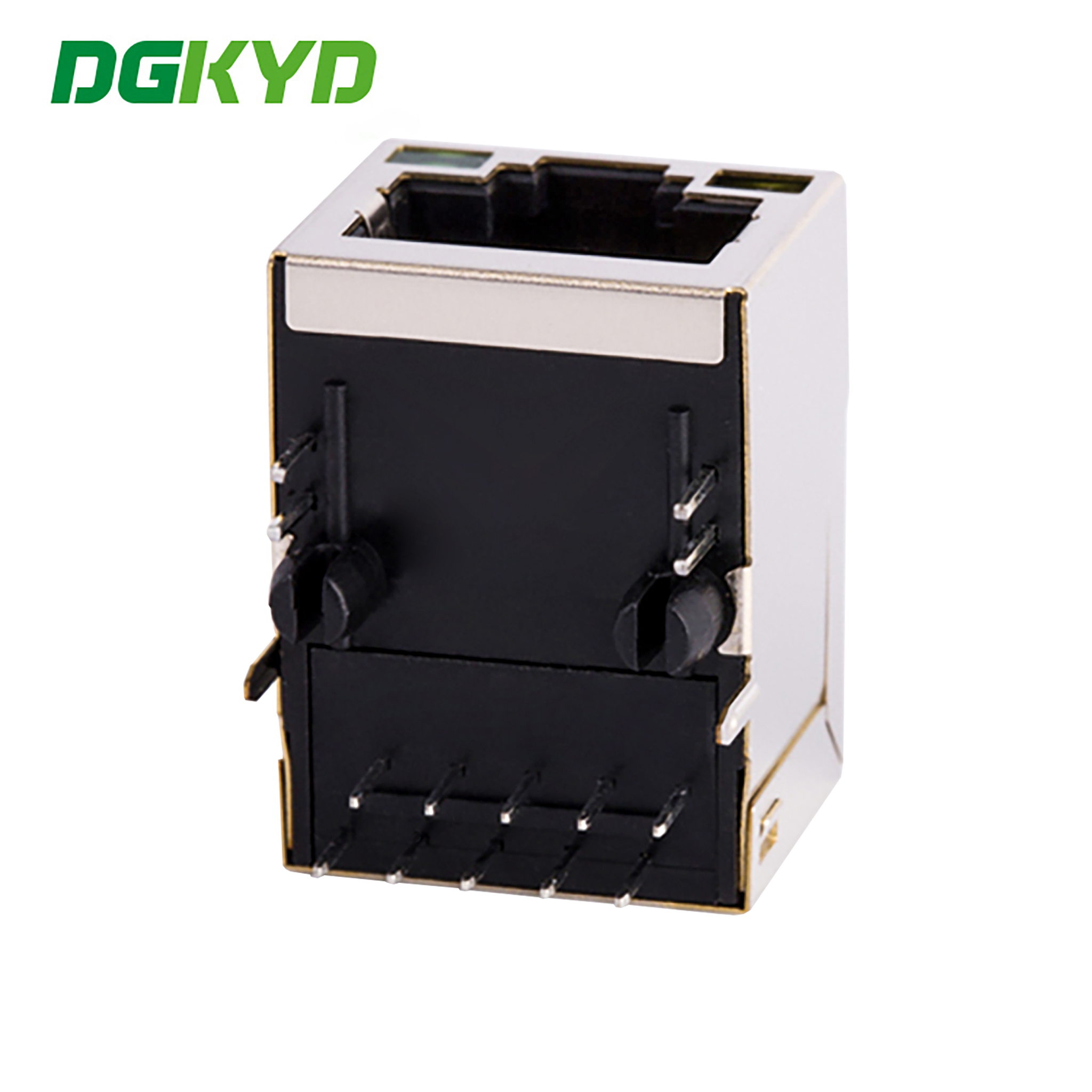

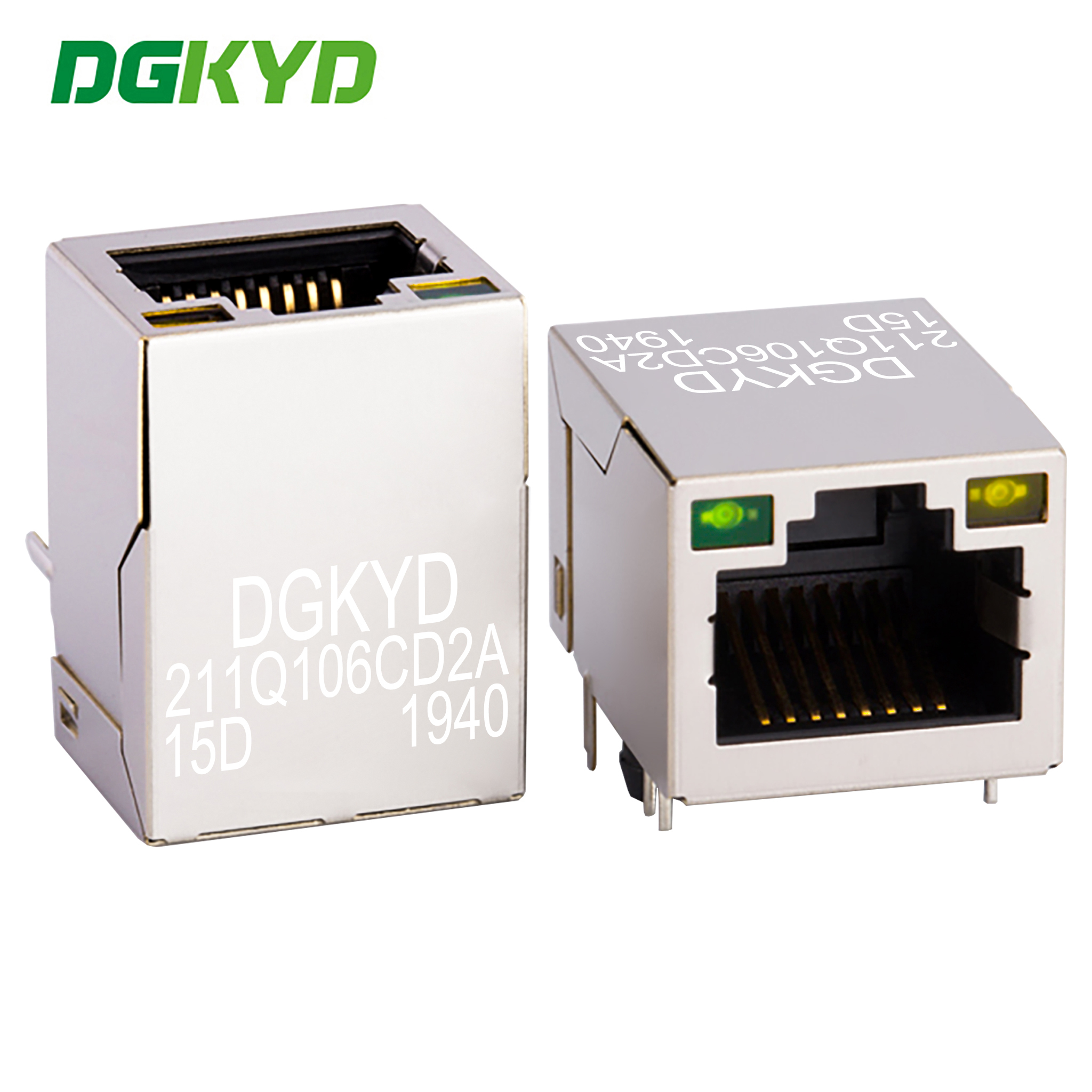

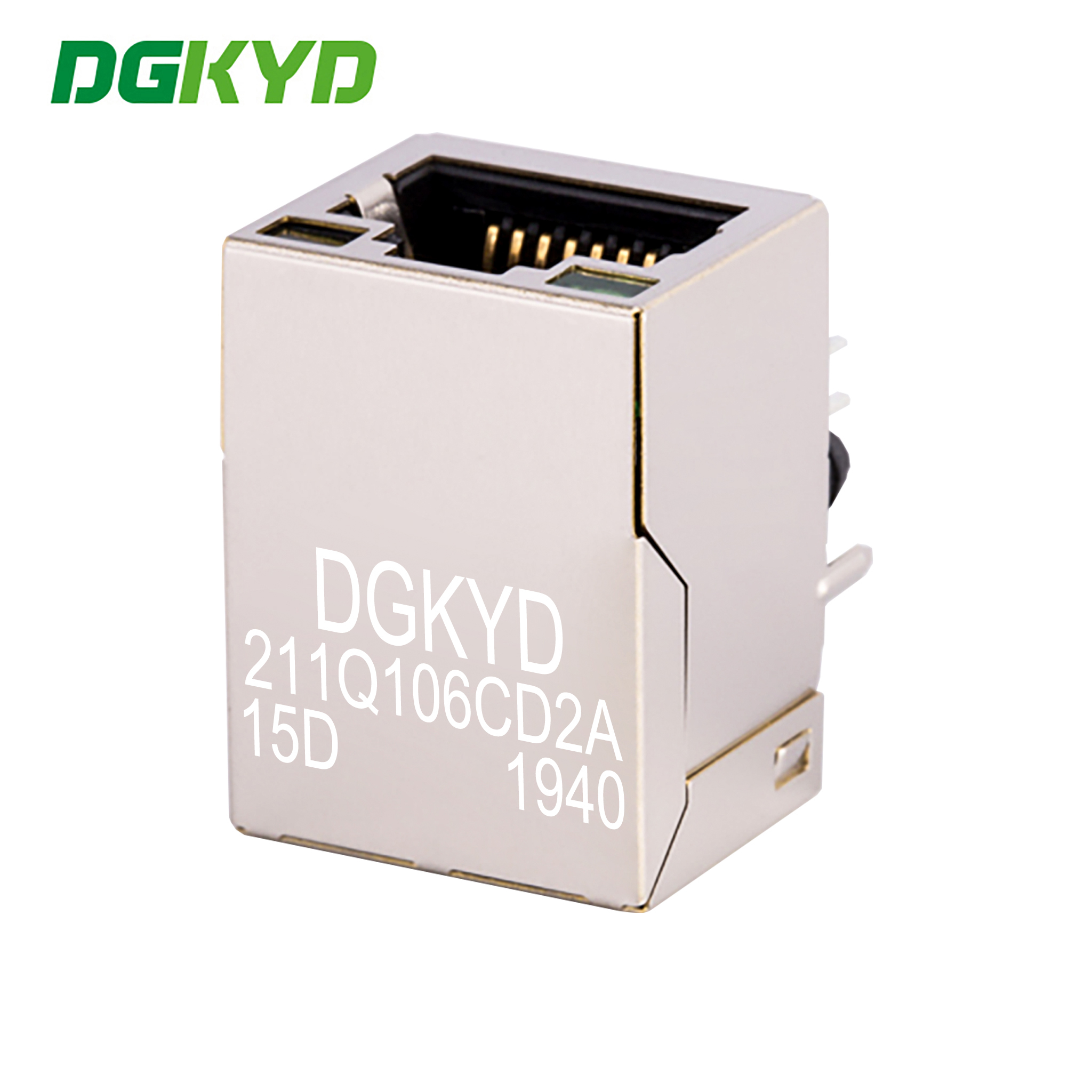

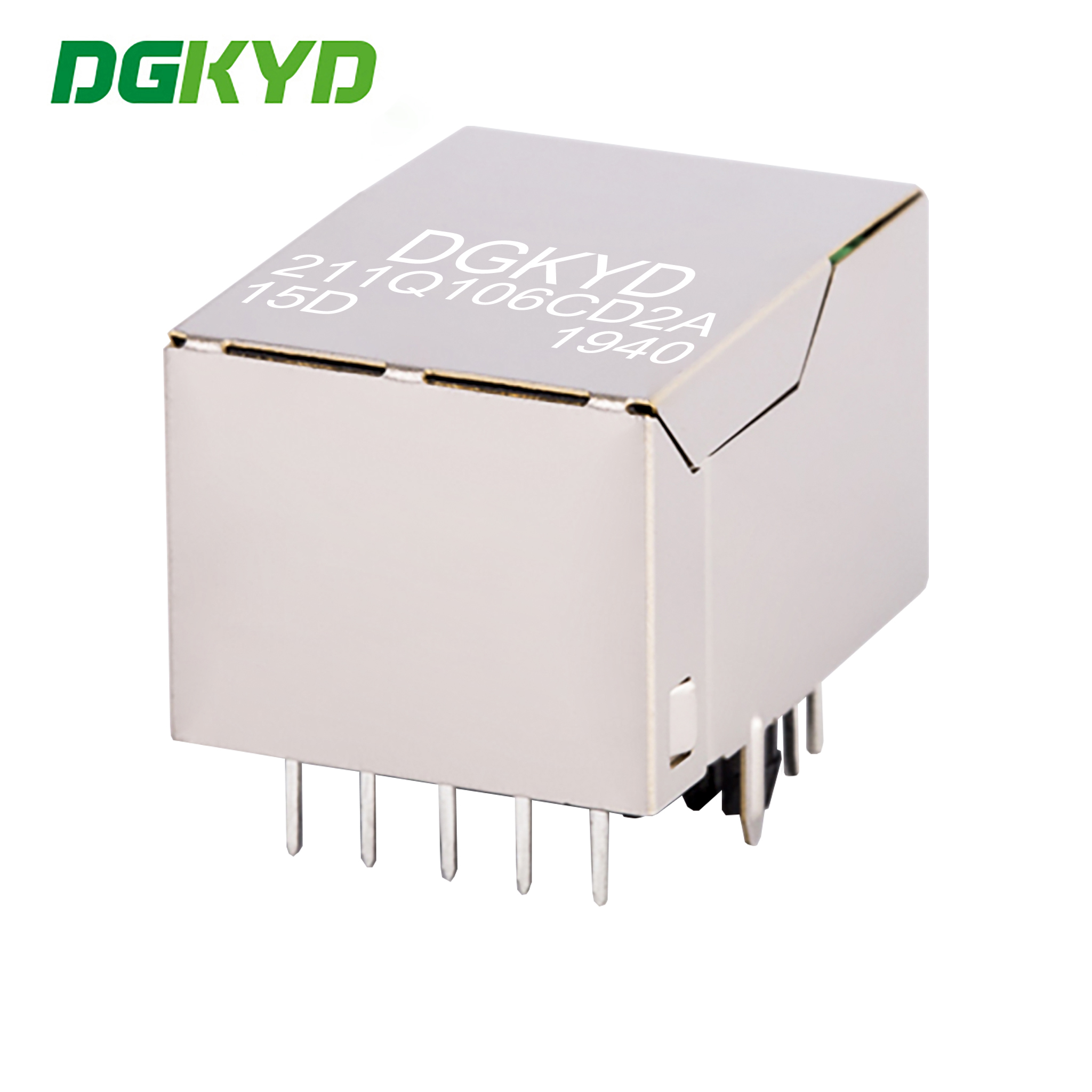

Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D
Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D
Contactar ahora

Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D

Cantidad de orden mínima : 1 pieza Precio : Please contact us to get the latest price.
Detalles de empaquetado : Bandeja en cartón Tiempo de entrega : 10 días
Condiciones de pago : T/T, D/P, D/A, L/C, Western Union, Moneygram Capacidad de la fuente : 100k PC/día
Lugar de origen: Dongguan de China Nombre de la marca: DGKYD
Certificación: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Número de modelo: DGKYD211Q106CD2A15D

Información detallada
Nombre del producto: Jack modular RJ45 Género: receptáculo RJ45
Tipo: Toma magnética rj45 de múltiples pines Solicitud: fibra óptica, cámara IP, DVR, DSL, módem, wifi, etc.
Característica: Puerto de red RJ45 blindado OEM/ODM: Sí
Enchapado de oro en alfileres de contacto: 6U Temperatura de funcionamiento: -40 ° C ~+85 ° C
Temperatura de almacenamiento: -40 ° C ~+85 ° C Número de posiciones/contactos: 10P8C (RJ45, Ethernet)
Blindaje: fosfor de cobre níquel
Resaltar:

Single port RJ45 connector with transformer

,

Gigabit Ethernet RJ45 modular socket

,

RJ45 female jack with built-in filter

Descripción de producto

Single Port RJ45 Connector Modular Block Socket with Built-in Transformer
Product Description

Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D.

Product Specification Document

DGKYD211Q106CD2A15D.pdf

Parameters
Part Number DGKYD211Q106CD2A15D Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Ports Number of Positions 10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PA9T Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 0 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 1
Our Strengths
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

FAQ
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 2 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 3 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 4 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 5 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 6 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 7 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 8 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 9
