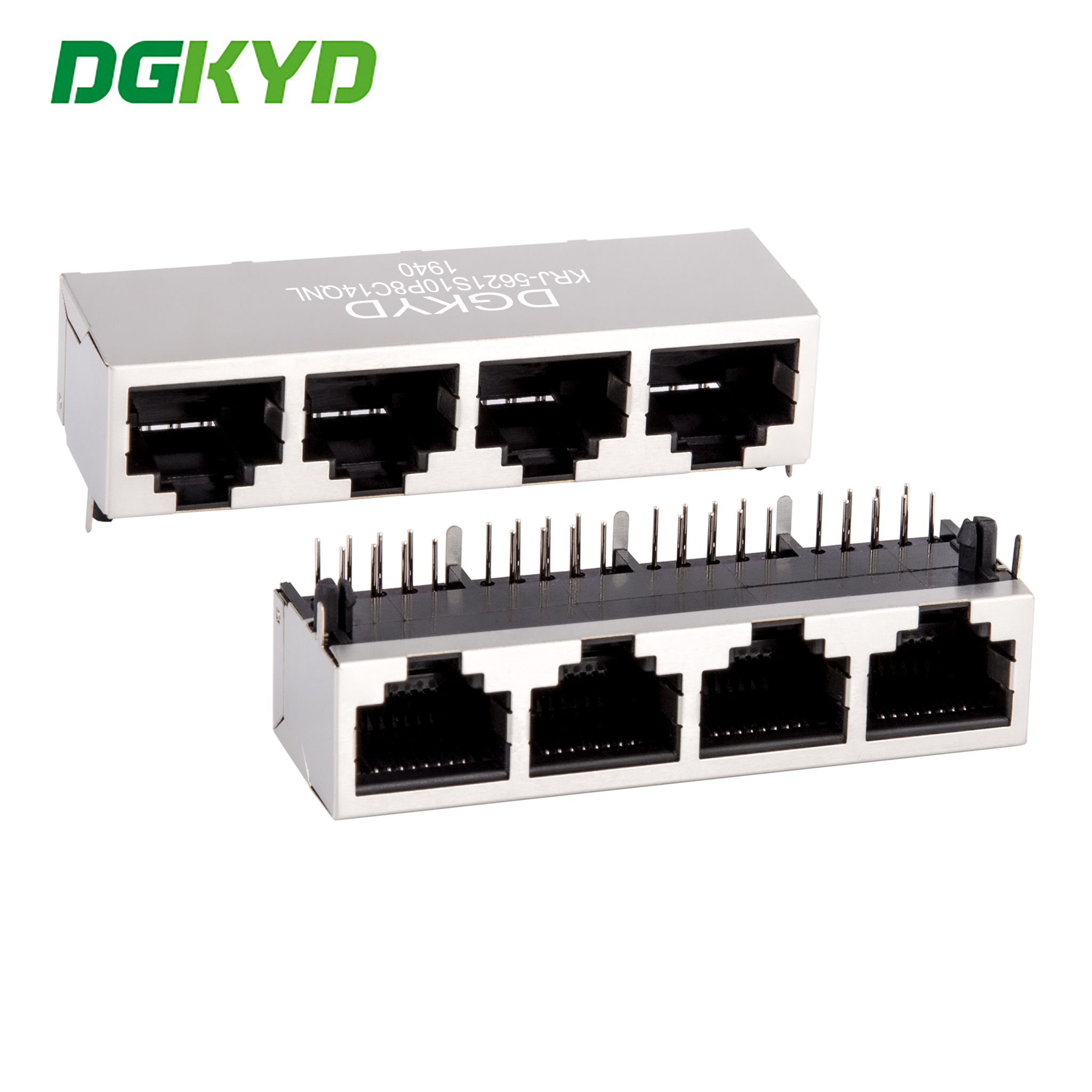

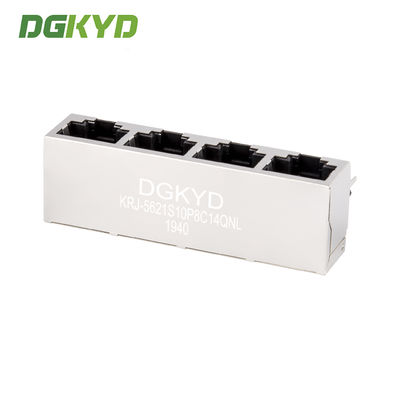

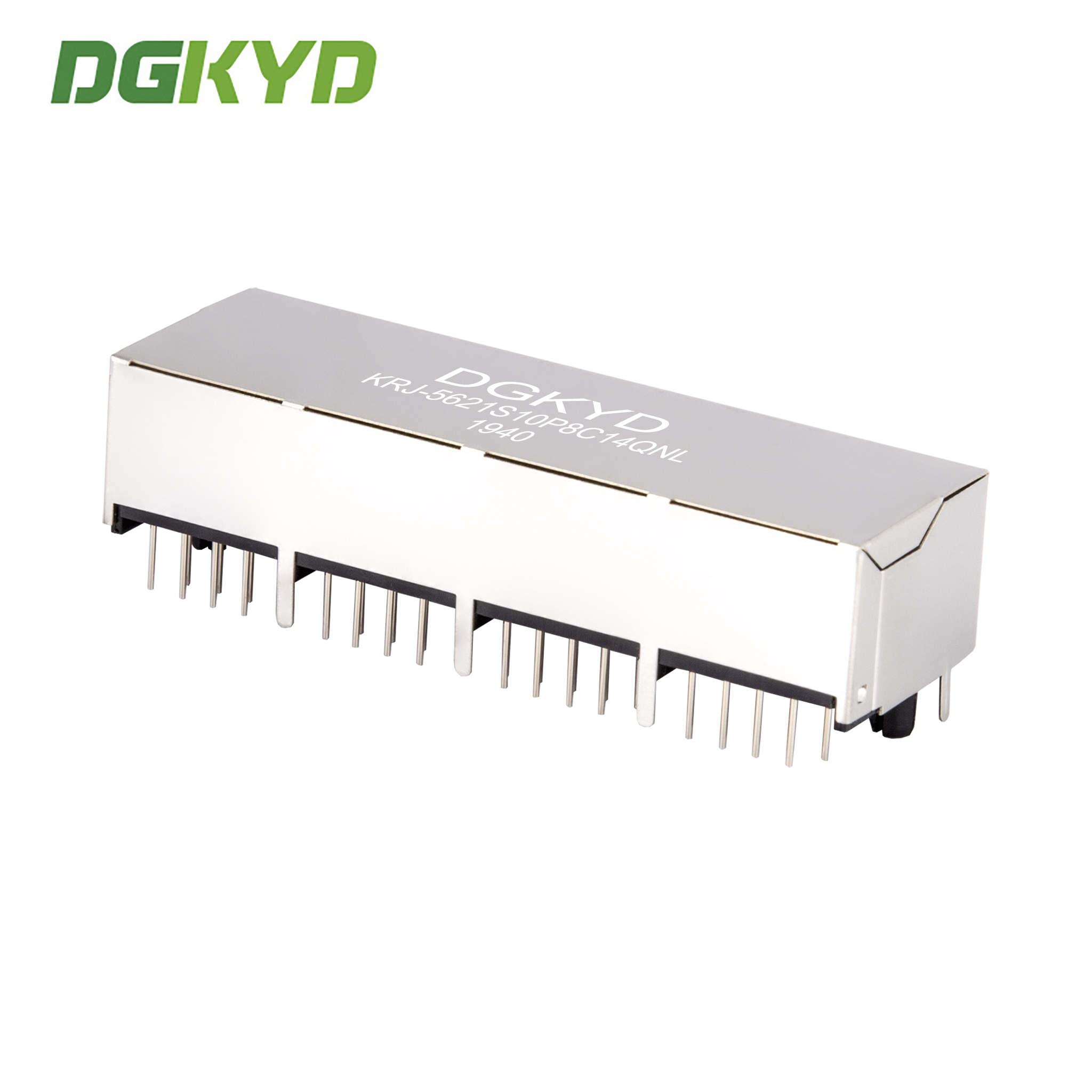

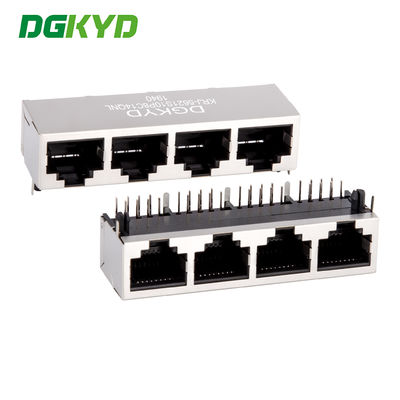

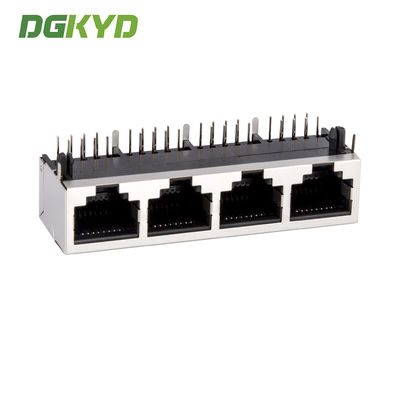

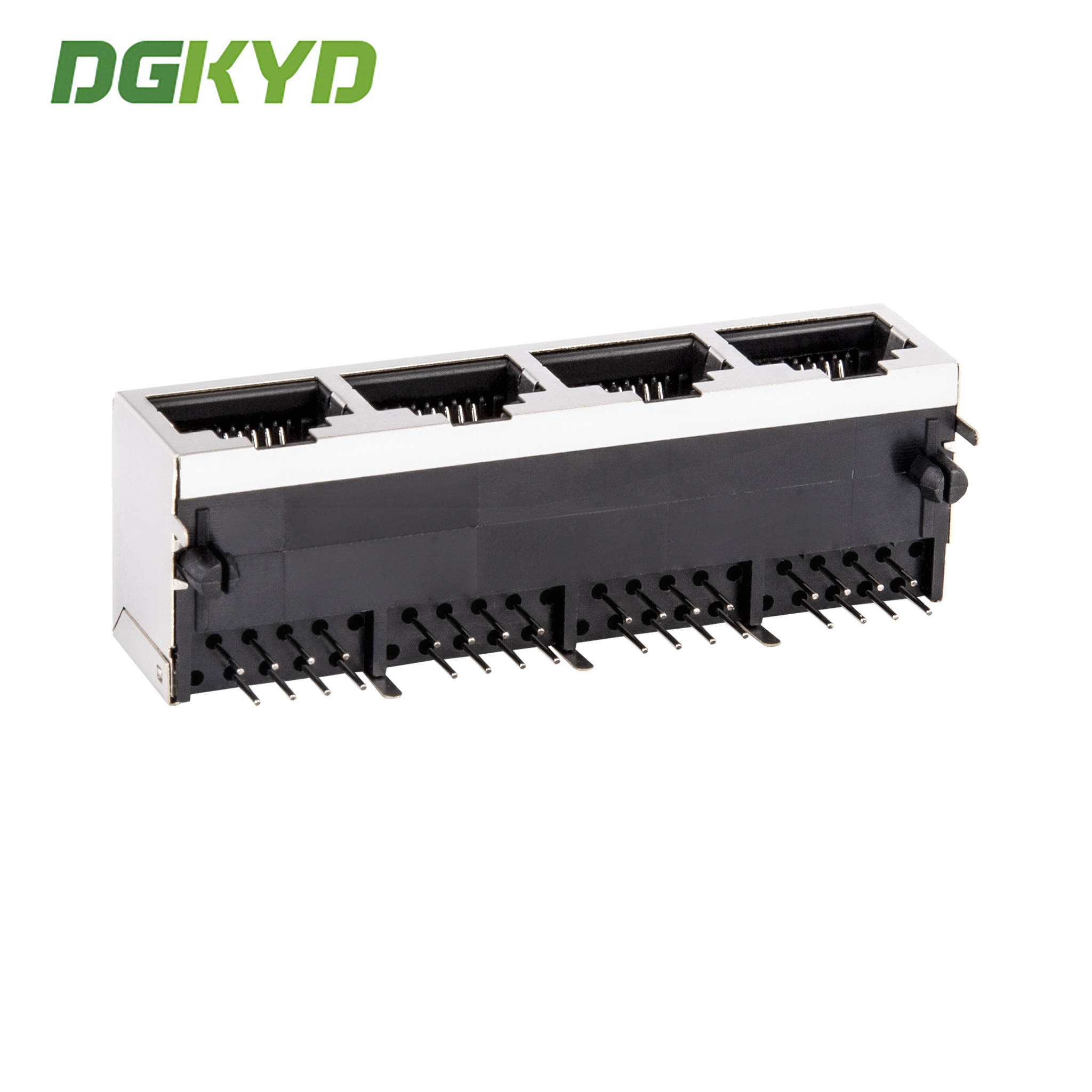

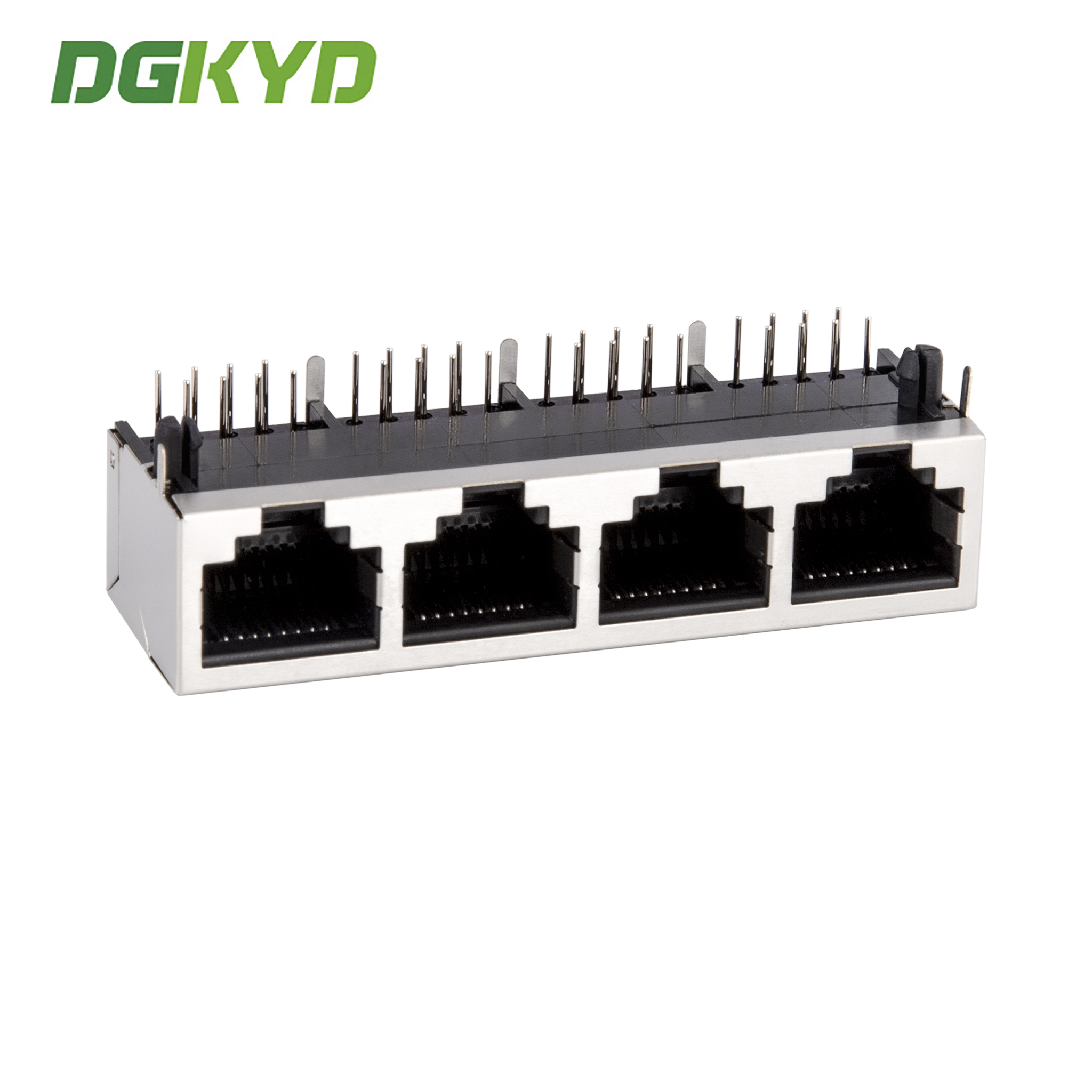

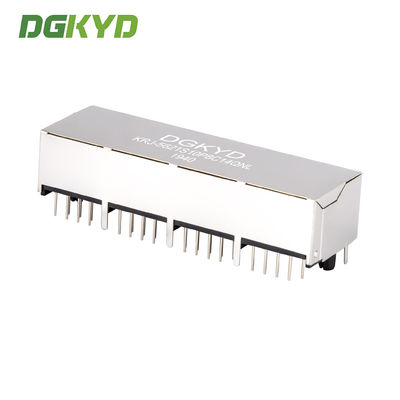

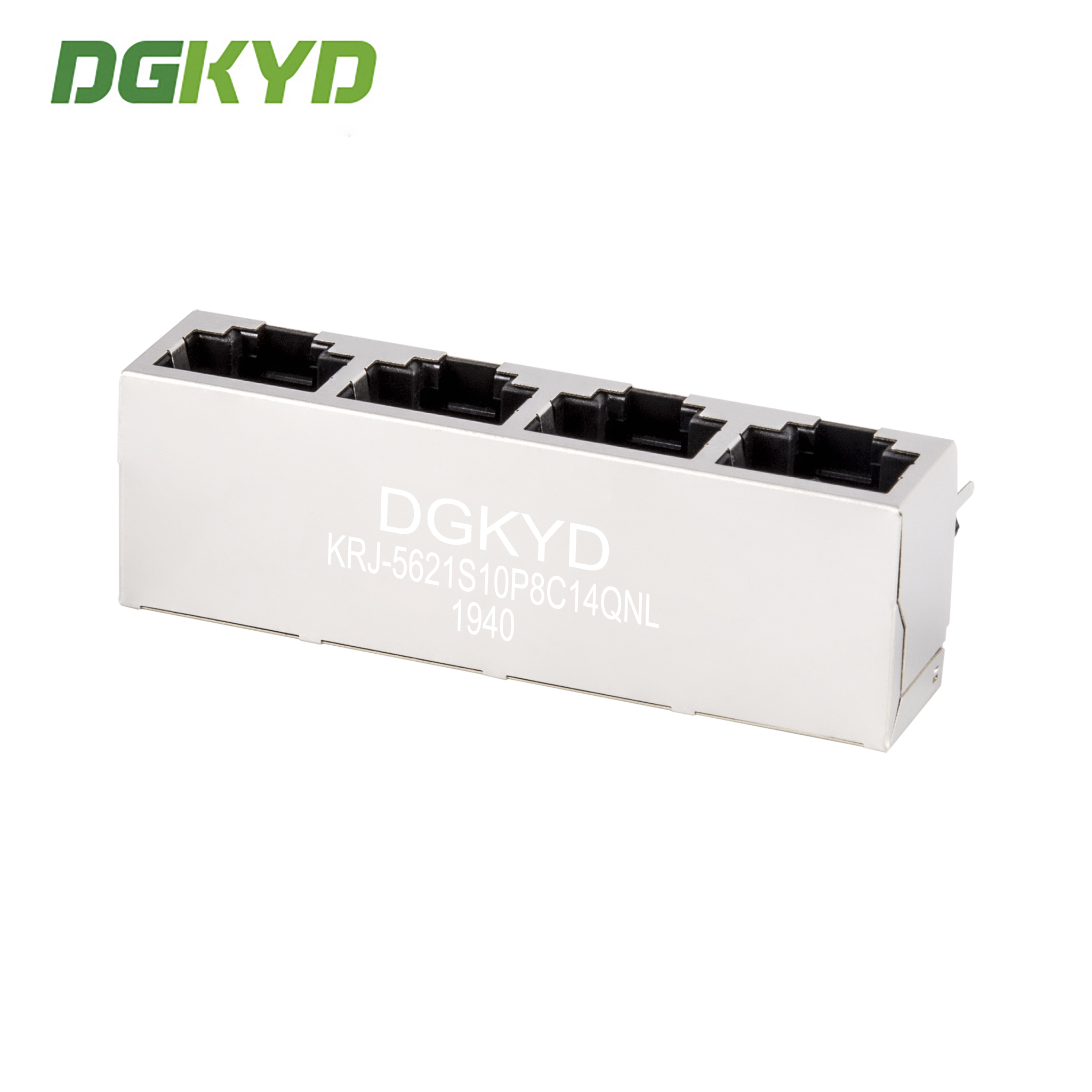

1x4 Right Angle Tab Down Shield RJ45 Connectors Quad Ports Ethernet Switch Sockets KRJ-5621S10P8C14QNL

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	Bandeja en cartón	Tiempo de entrega :	10 días
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Capacidad de la fuente :	100k PC/día

Lugar de origen:	Dongguan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	KRJ-5621S10P8C14QNL

Información detallada
Nombre del producto:	4-Port RJ45 Jack	Shieded:	Sí
Número de posiciones:	10	Número de contactos cargados:	8
Aplicación:	Comunicación,modem,homePNA,DSL/ADSL	Velocidad:	Gato 3/5
Pestillo:	Etiqueta-abajo	Estilo del soporte:	ADEREZO
Producción de equipos OEM/ODM:	Sí	Número de posiciones/contactos:	8p10c (RJ45, Ethernet)
Enchapado de oro en alfileres de contacto:	G/Fu	Temperatura de almacenamiento:	-40 ° C ~+85 ° C
Temperatura de funcionamiento:	-40 ° C ~+85 ° C
Resaltar:	right angle RJ45 connector quad port , tab down shield Ethernet switch socket , KRJ-5621S10P8C14QNL RJ45 connector without transformer

Descripción de producto

1x4 Right Angle Tab Down Shield RJ45 Connectors Quad Ports Ethernet Switch Sockets KRJ-5621S10P8C14QNL

Product Specification

1x4 Right Angle Tab Down Shield RJ45 Connectors Quad Ports Ethernet Switch Sockets KRJ-5621S10P8C14QNL

Parameters

Part Number	KRJ-5621S10P8C14QNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X4 Ports	Number of Positions	8
Jack Configuration	1X4	Terminals per Port	10
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
