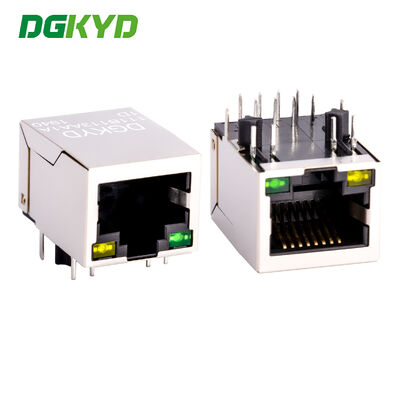

RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	Bandeja en cartón	Tiempo de entrega :	10 días
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Capacidad de la fuente :	100k PC/día

Lugar de origen:	Dongguan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	DGKYD111B113AA1A1D

Información detallada
Actuación:	gato5	Nombre del producto:	Conector del PWB RJ45
Orientación portuaria:	Entrada lateral	Estilo del soporte:	Montura de PCB
Escudo RJ45:	Sí	Tipo:	RJ45
CONDUJO:	amarillo/verde	Número de posiciones/contactos:	8P8c (RJ45, Ethernet)
Enchapado de oro en alfileres de contacto:	6U	Temperatura de funcionamiento:	-40 ° C ~+85 ° C
Almacenamiento Temperatura de almacenamiento:	- 40 ℃ ~ 85 ℃
Resaltar:	RJ45 network port socket 100Mbps , RJ45 PCB connector horizontal mount , RJ45 filter network port with warranty

Descripción de producto

Product Specifications

Part Number	DGKYD111B113AA1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

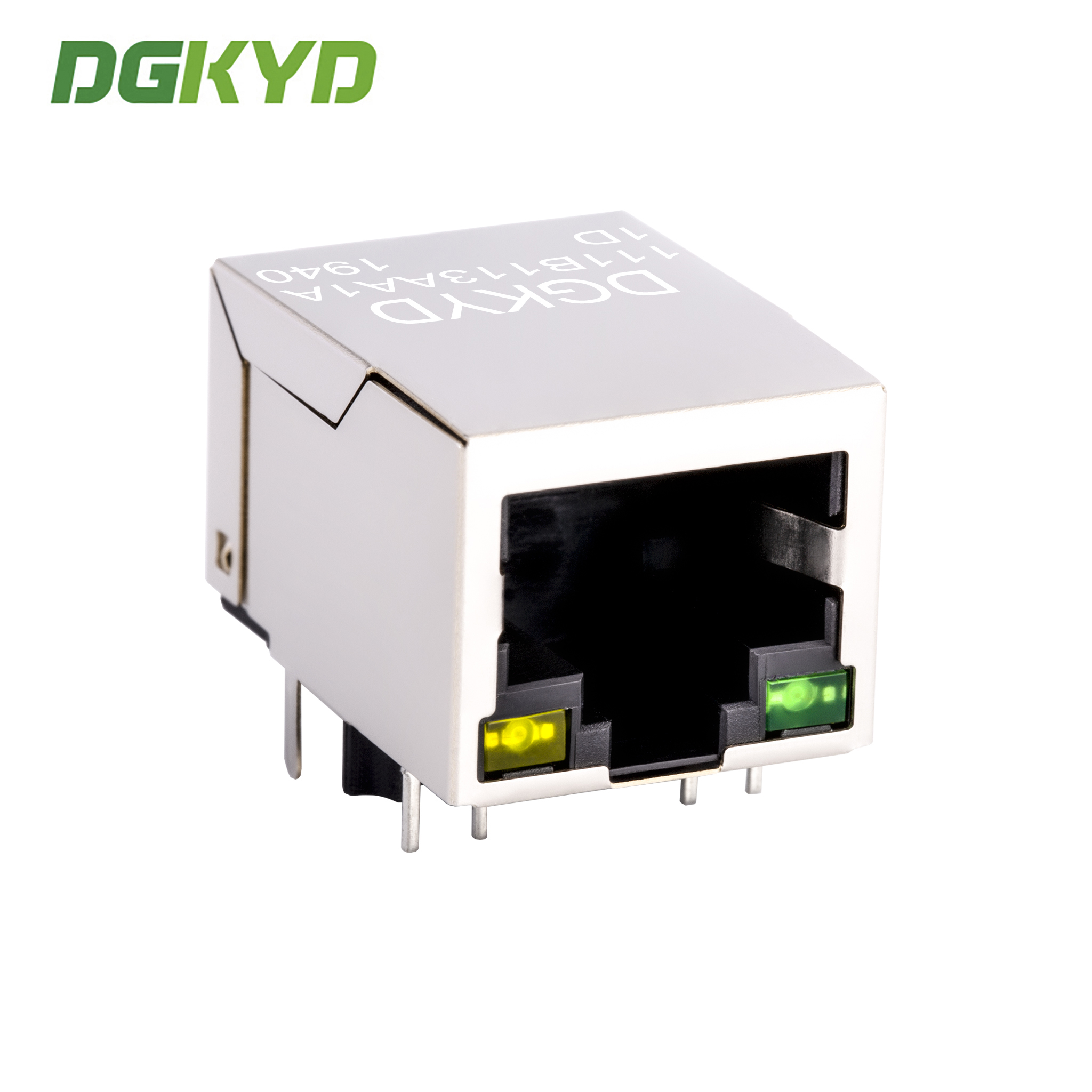

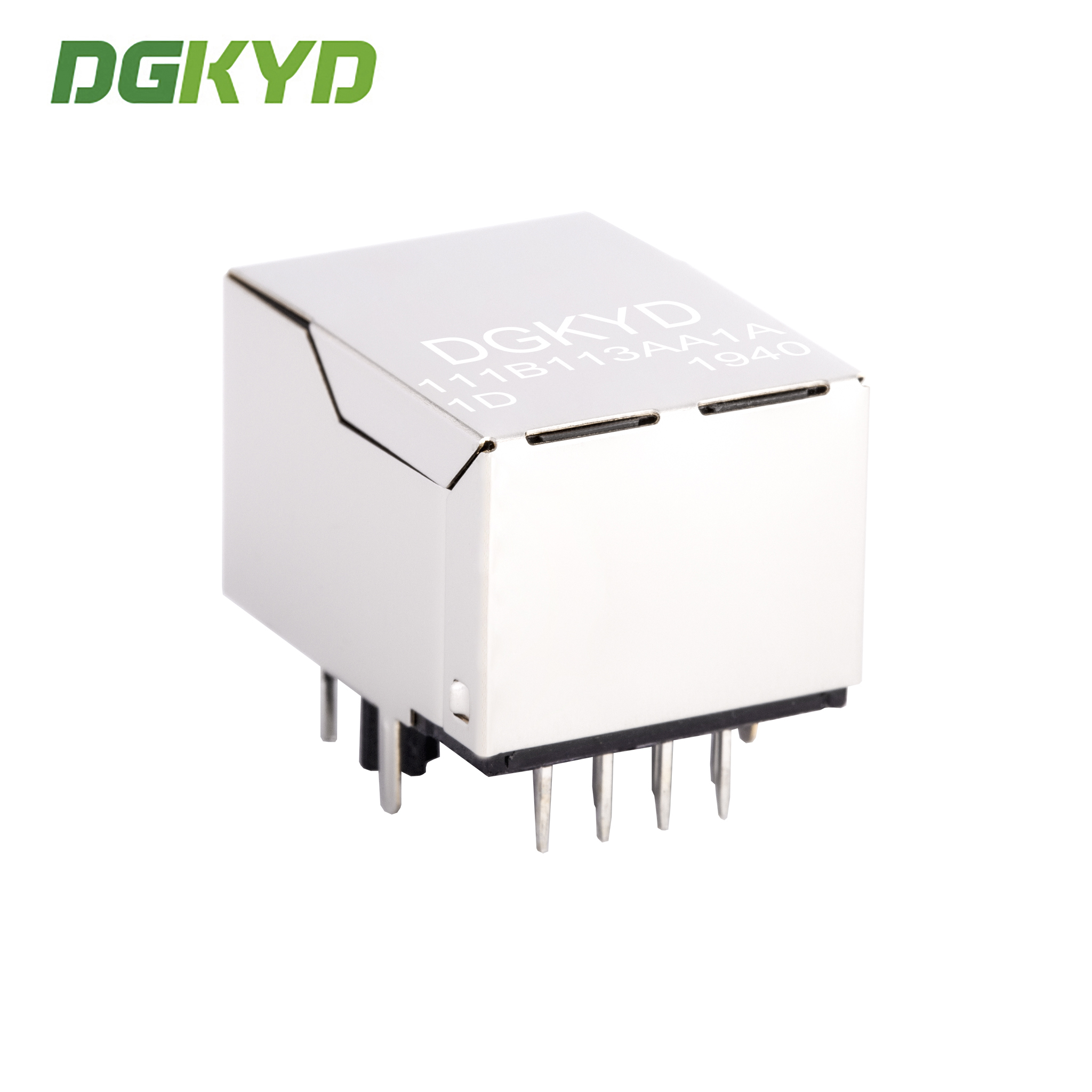

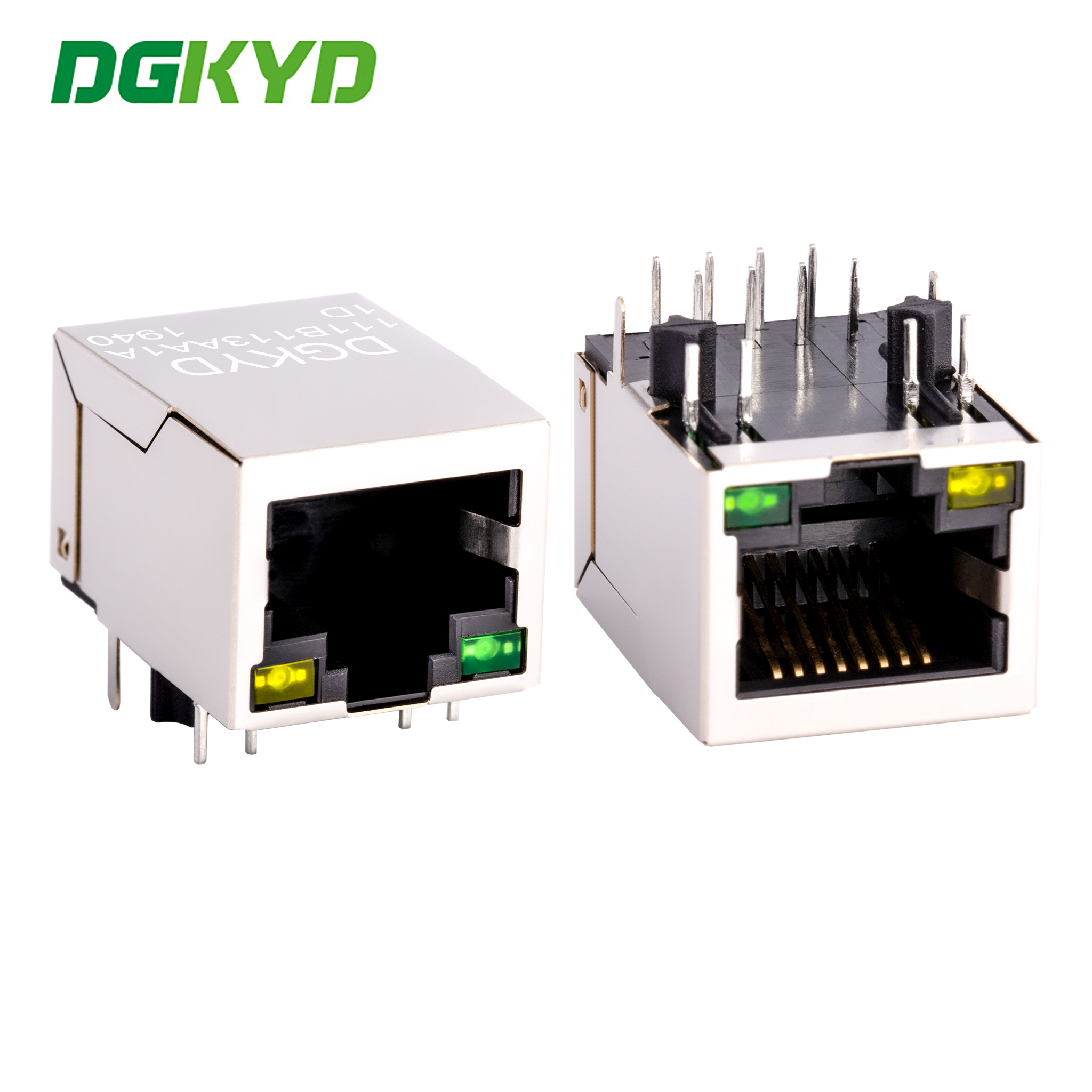

Product Images

LED Specifications

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Manufacturing Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available for LED indicator lights, shielding, magnetic core ratios, contact plating, and housing materials
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

RJ45 network port socket 100Mbps
