KRJ-1812QGGOYNL Vertical RJ45 Connector Gigabit Network Interface Industrial Ethernet Socket Vertical entry cat6 RJ45 connector Gigabit Magnetic Jack w / bi - color LED

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	Bandeja en cartón	Tiempo de entrega :	10 días
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Capacidad de la fuente :	100k PC/día

Lugar de origen:	Dongguan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	KRJ-1812QGGOYNL

Información detallada
Categoría:	Enchufes modulares	Tipo de componente:	Conector de PCB
Categoría de rendimiento:	5E&6	Tipo de Insetion:	180 grados Vtertical
Escudo RJ45:	Sí	Tipo:	RJ45
CONDUJO:	Verde/Verde-Naranja	Número de posiciones/contactos:	8p10c (RJ45, Ethernet)
Enchapado de oro en alfileres de contacto:	6U	Temperatura de funcionamiento:	-40 ° C ~+85 ° C
Almacenamiento Temperatura de almacenamiento:	- 40 ℃ ~ 85 ℃
Resaltar:	vertical RJ45 connector gigabit , industrial Ethernet socket cat6 , RJ45 magnetic jack LED

Descripción de producto

KRJ-1812QGGOYNL Vertical RJ45 Connector

Gigabit Network Interface Industrial Ethernet Socket Vertical entry cat6 RJ45 connector Gigabit Magnetic Jack with bi-color LED

Product Specifications

Part Number	KRJ-1812QGGOYNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Green-Orange	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

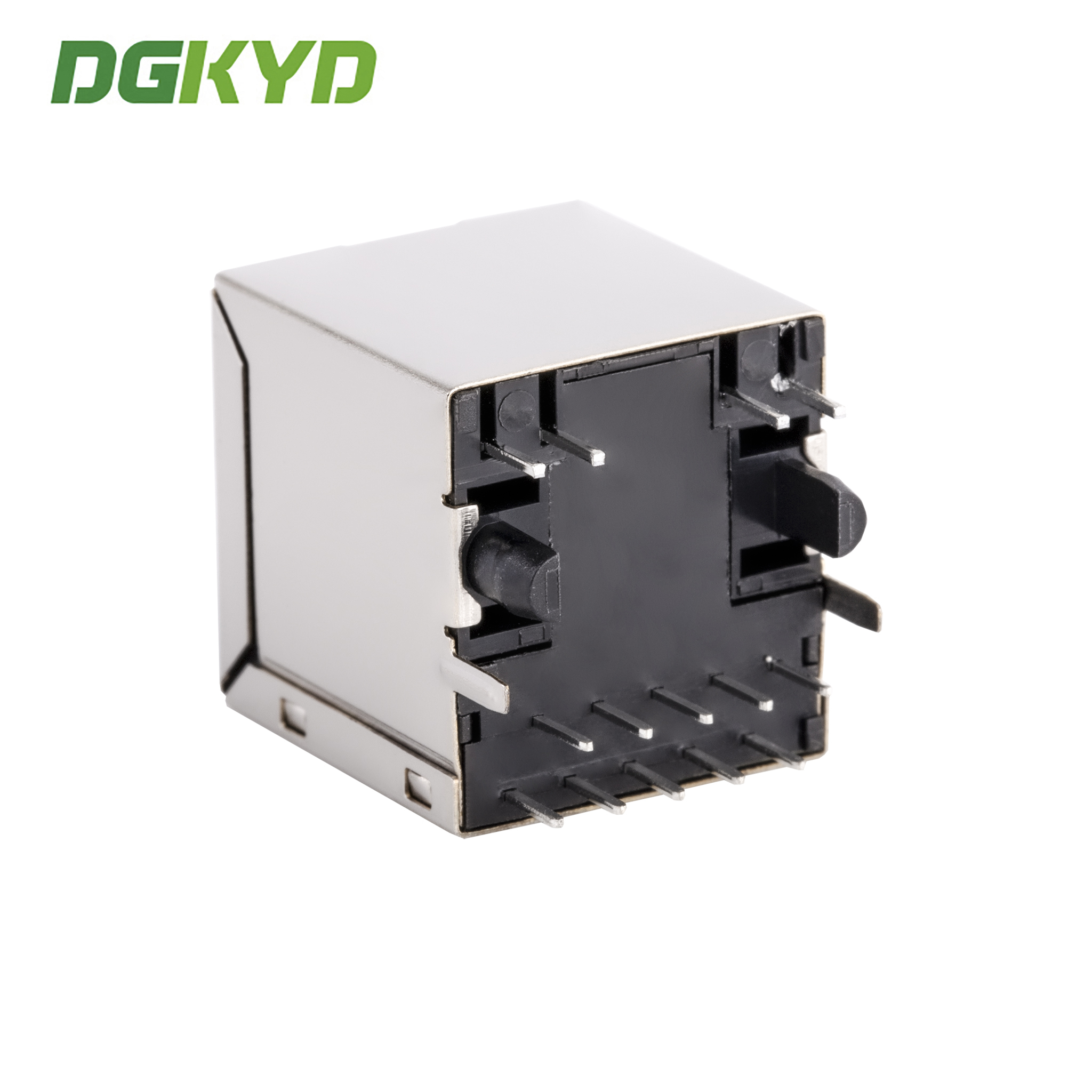

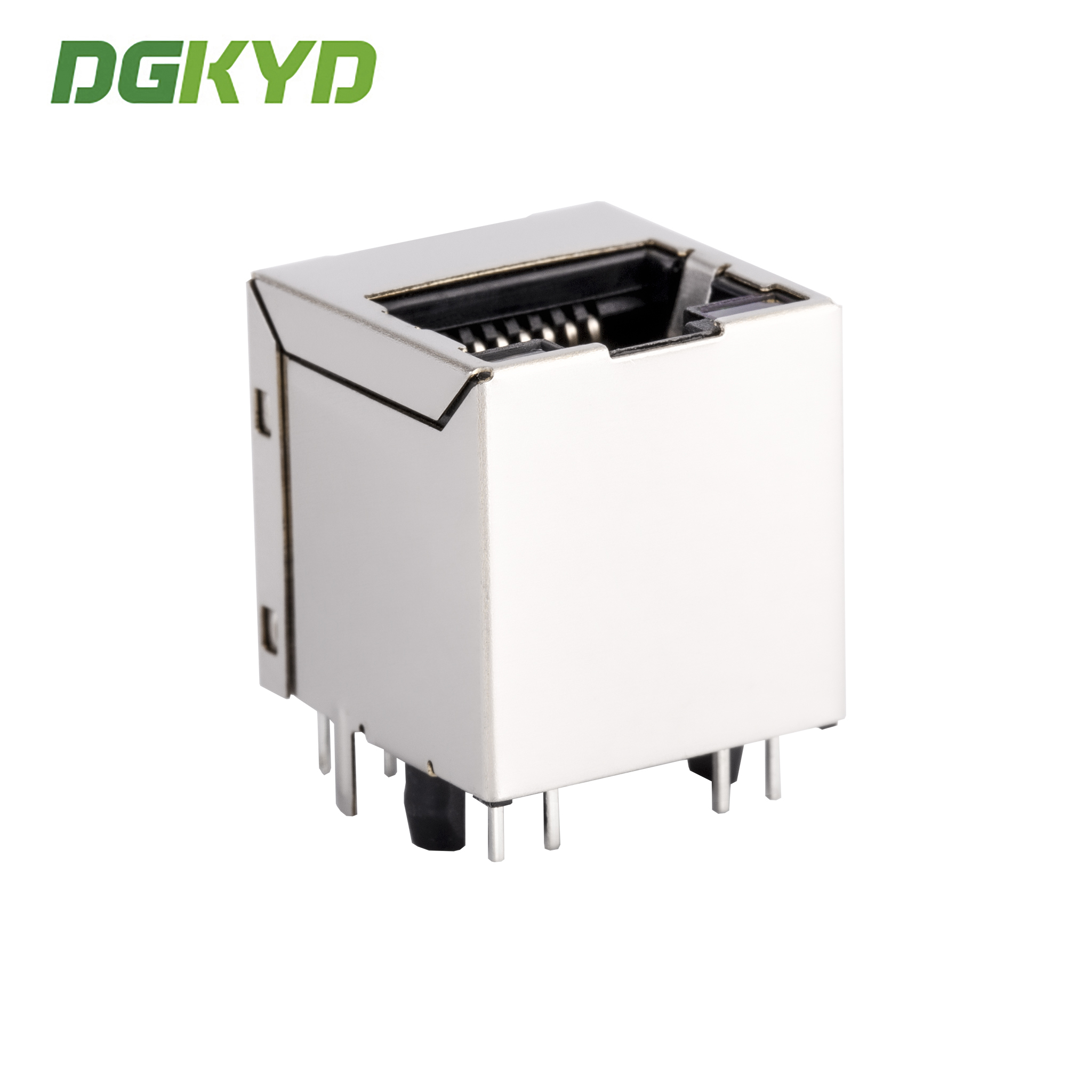

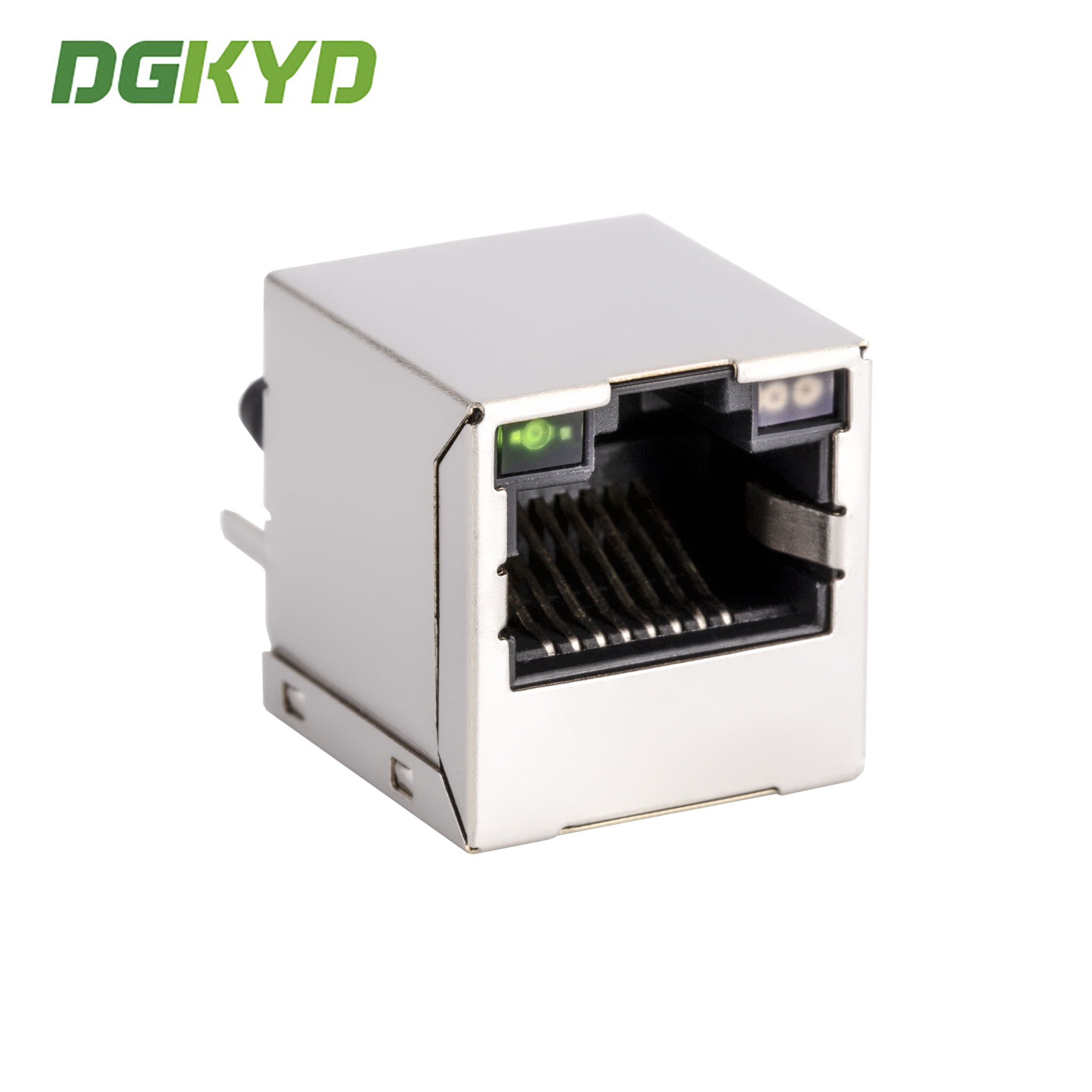

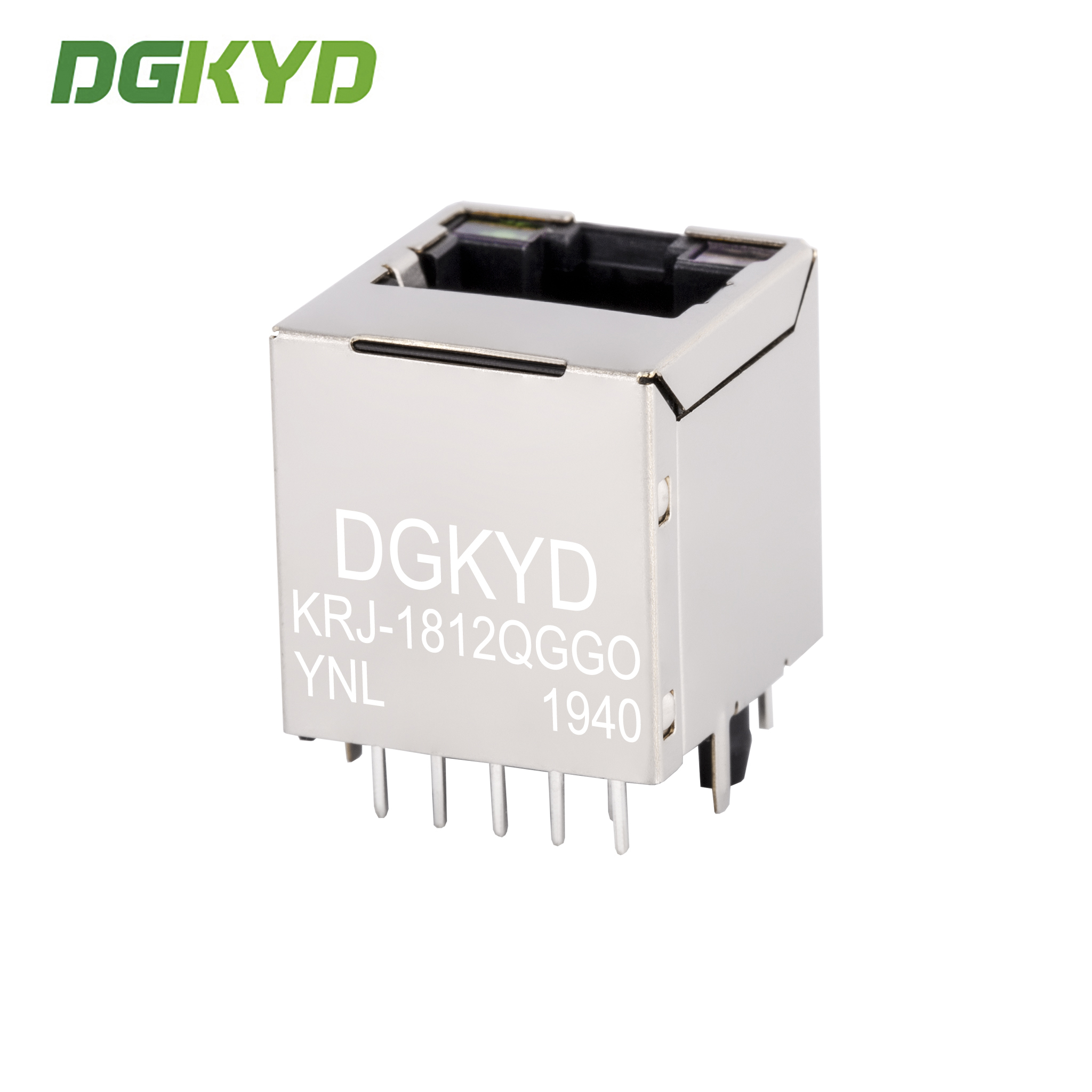

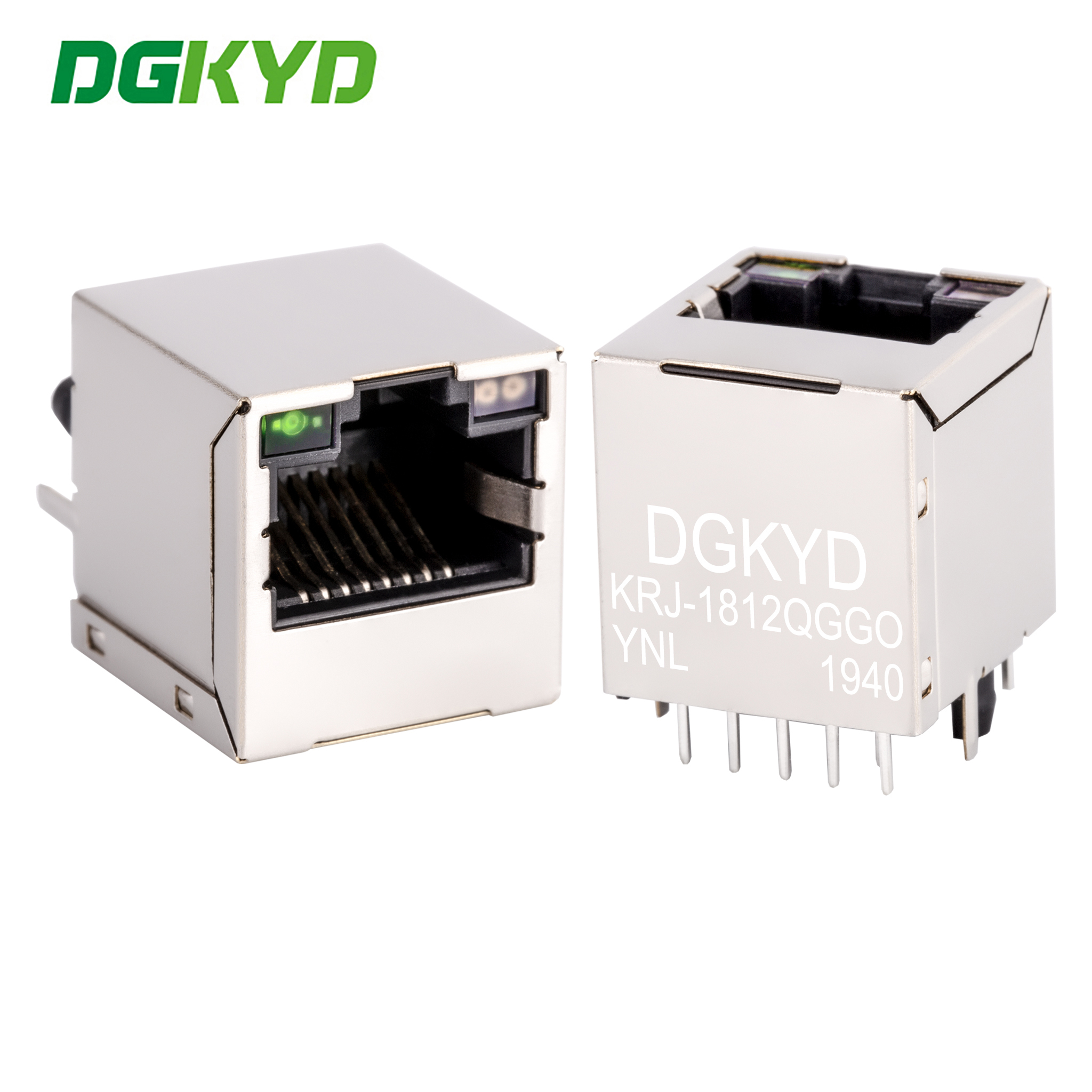

Product Images

Key Features

Interface type: RJ45 crystal head
Application: 10/100/1000BASE-T Ethernet
Type: RJ45 built-in magnetics
Working frequency: High frequency characteristic with filtering and anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering: Wave soldering height up to 265℃

Manufacturer Advantages

RJ45 full series of integrated circuit accessories
Manufacturer direct supply
Business mode: Manufacturer
Delivery time: On-time delivery, typically around two weeks
Customization options available for LED indicators, shielding, coil ratio, magnetic circuits, contact plating, and housing materials
Products meet industry standards for electrical properties, mechanical specifications, and environmental requirements
