RJ45 Without Transformer Network Port Socket 8P8C With LED Direct Insertion Vertical RJ45 DGKYD52A1188AB1A3D1Y1143

Contactar ahora

RJ45 Without Transformer Network Port Socket 8P8C With LED Direct Insertion Vertical RJ45 DGKYD52A1188AB1A3D1Y1143

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	Bandeja en cartón	Tiempo de entrega :	10 dias
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Capacidad de la fuente :	100k PC/día

Lugar de origen:	Dongguan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	DGKYD52A1188AB1A3D1Y1143

Información detallada
Tipo de interfaz modular de Jack & Plug:	RJ45 sin el transformador	Configuración de puerto:	soltero
Estilo conector:	Jacobo	Género:	Femenino
Protegido:	Ninguno	Materiales para la vivienda:	Poliéster PA46
Indicador de estado:	Sí	Control de voz:	Asistente de Google, Alexa de Amazon
Tamaño de pantalla:	52 pulgadas	Color:	Negro
Categoría:	Las conexiones telefónicas	Material:	PA46
Terminación:	ADEREZO	Temperatura de funcionamiento:	-40 ° C ~+85 ° C
Ethernet:	NO	Tipo de Insetion:	Inserción directa
Tipo:	RJ45
Resaltar:	RJ45 network port socket with LED , vertical RJ45 connector 8P8C , 52 series RJ45 socket without transformer

Descripción de producto

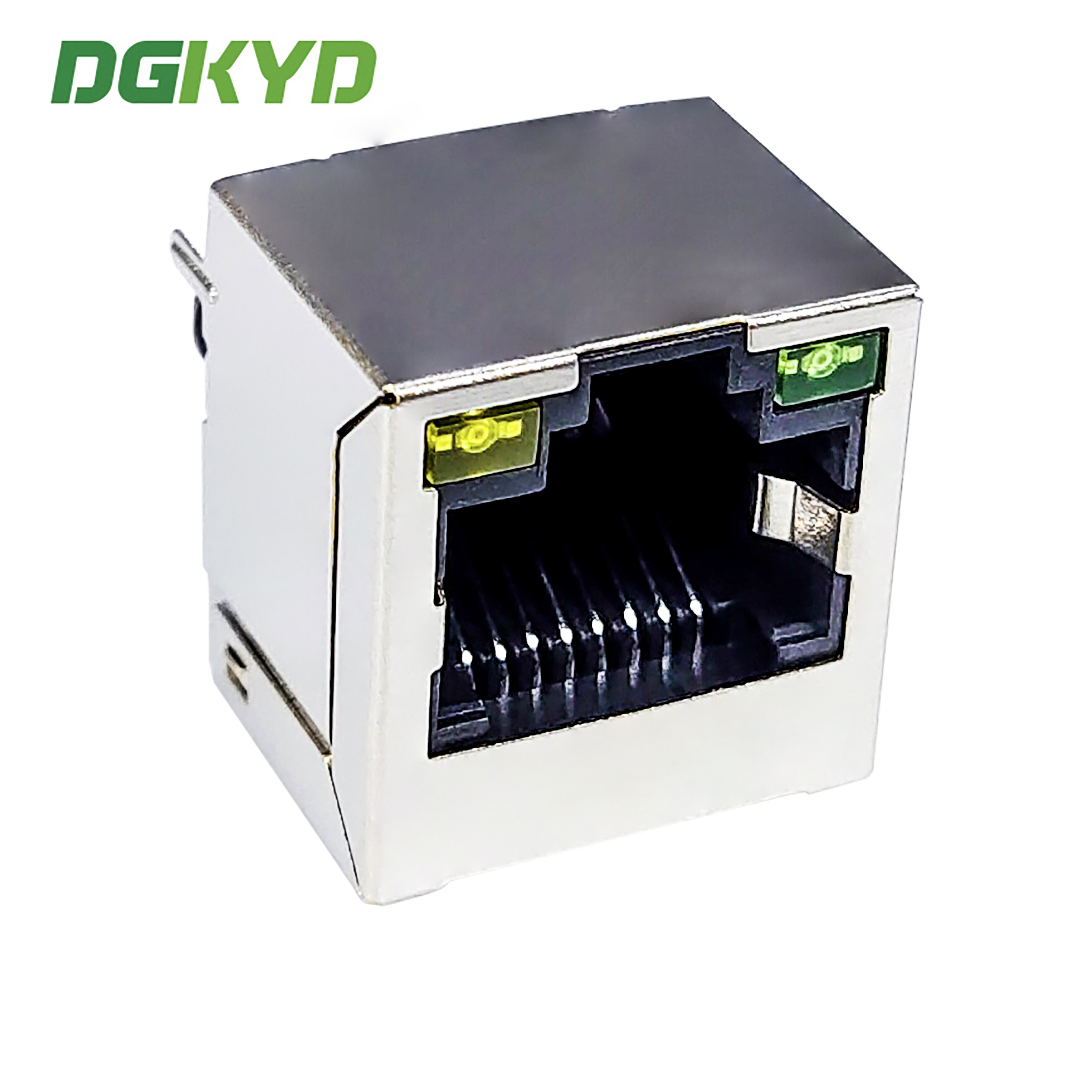

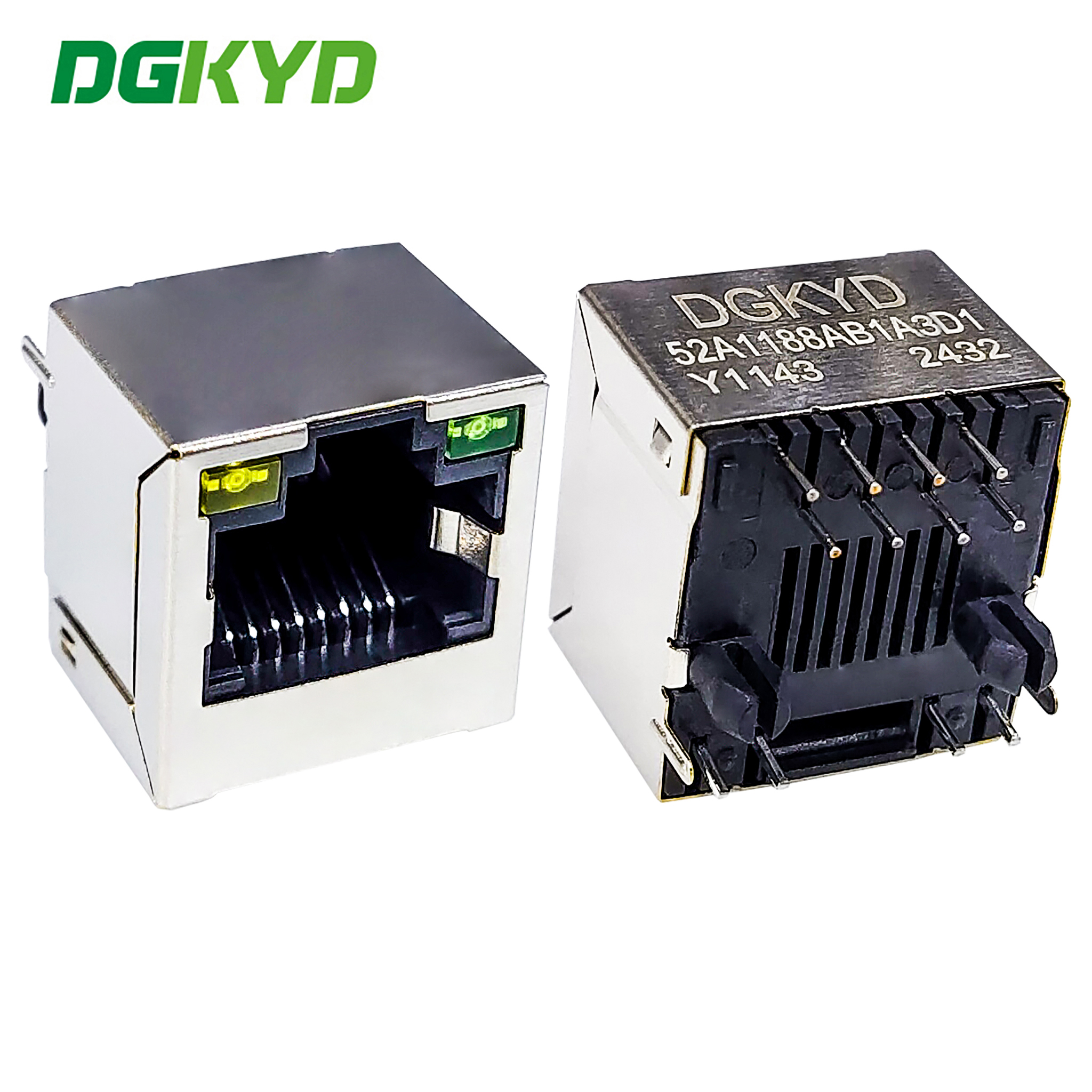

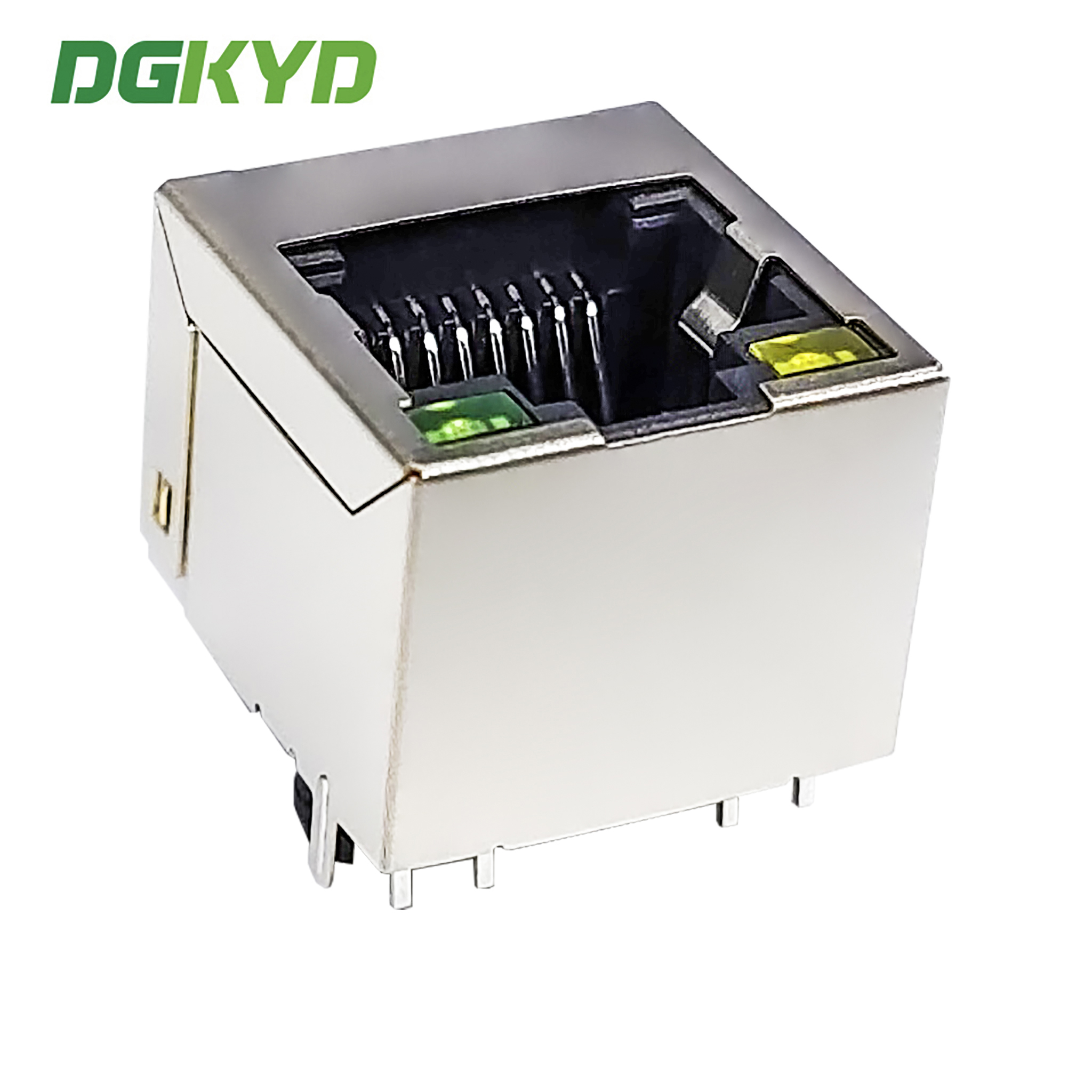

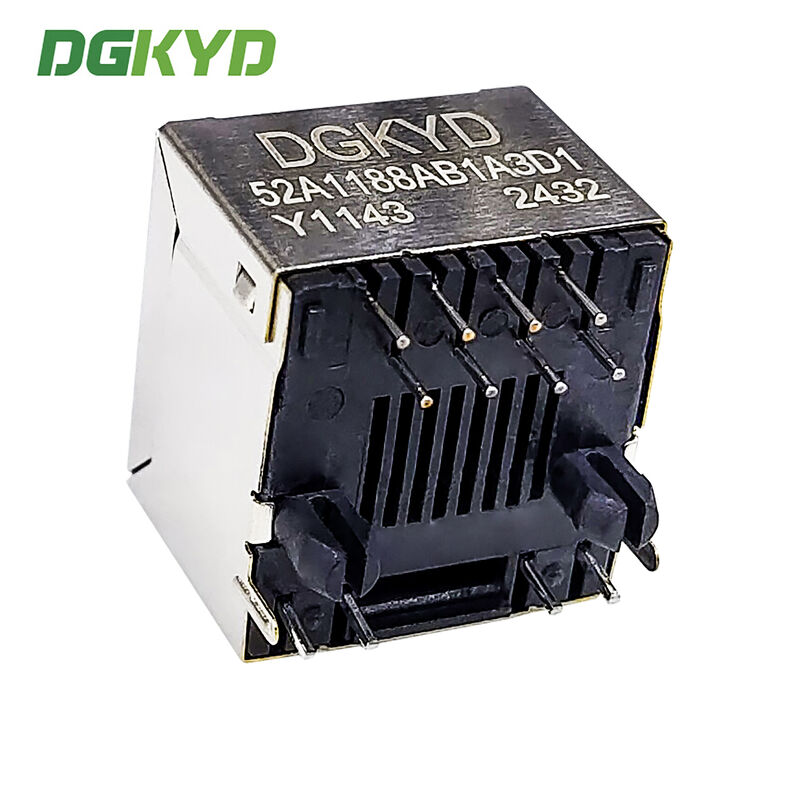

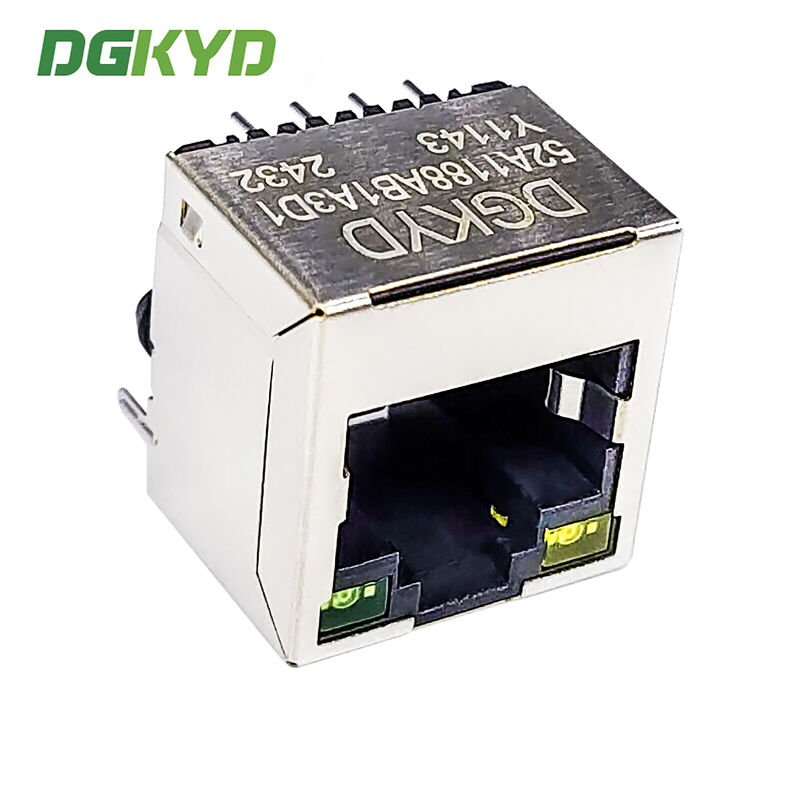

RJ45 Without Transformer Network Port Socket 8P8C With LED Direct Insertion Vertical RJ45 DGKYD52A1188AB1A3D1Y1143

RJ45 without transformer network port socket 8P8C with LED direct insertion vertical RJ45 DGKYD52A1188AB1A3D1Y1143

Key Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Technical Parameters

Parameter	Specification
Part Number	DGKYD52A1188AB1A3D1Y1143
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	Without Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX
Suitable for welding type	Reflowsolding (Alternative)
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold G/Fu
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA46 Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Company Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
