RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD

Contactar ahora

RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	Bandeja en cartón	Tiempo de entrega :	10 dias
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacidad de la fuente :	100.000 unidades/día

Lugar de origen:	Dongguan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	DGKYD611U2Q008DF5WD
Documento:	DGKYD611U2Q008DF5WD.pdf

Información detallada
Nombre del producto:	RJ45 con transformador	Tipo:	Combinación USB RJ45
Alojamiento:	Fenolicos, PBT Negro (UL94V-0)	No. Puerto:	Solo puerto RJ45
Ángulo del soporte del PWB:	Entrada lateral	Estilo del soporte:	Aunque agujero
Tipo de empujón:	RJ45+USB2.0	Enchapado de oro en alfileres de contacto:	6U
Temperatura de almacenamiento:	-40°C~+85°C	Temperatura de funcionamiento:	-40°C~+85°C
Resaltar:	RJ45 USB network connector with light , shielded RJ45 USB interface socket , RJ45 dual USB connector with shielding

Descripción de producto

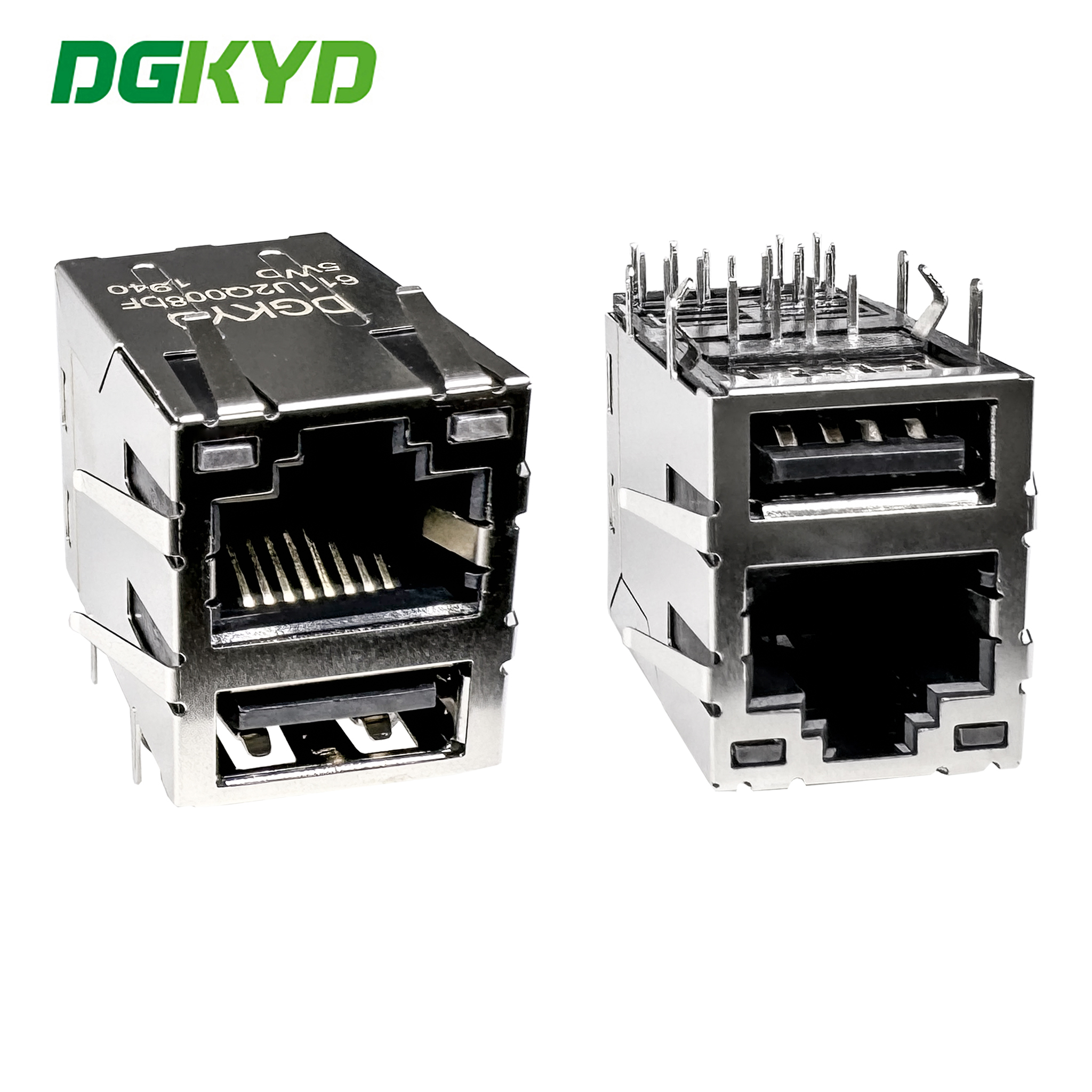

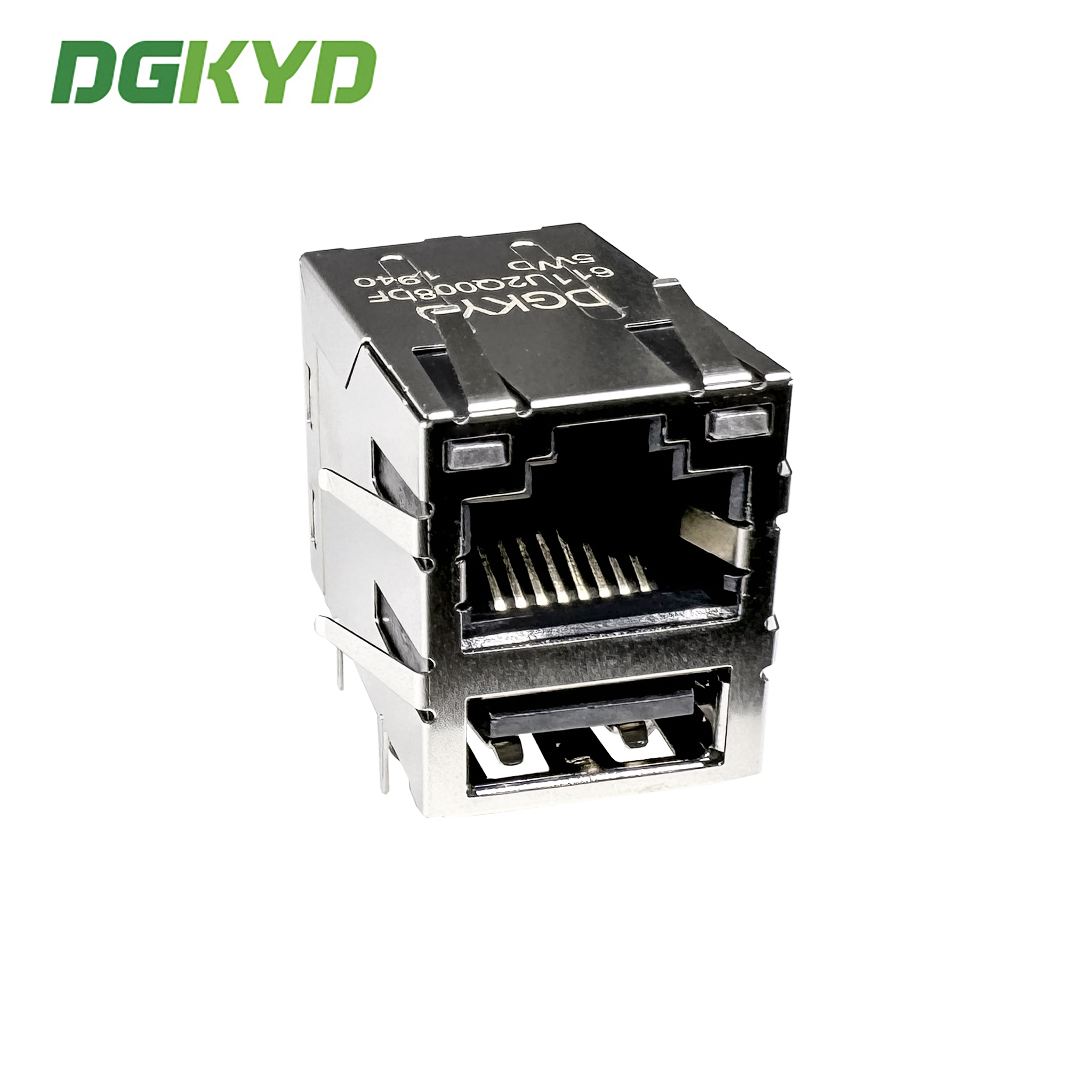

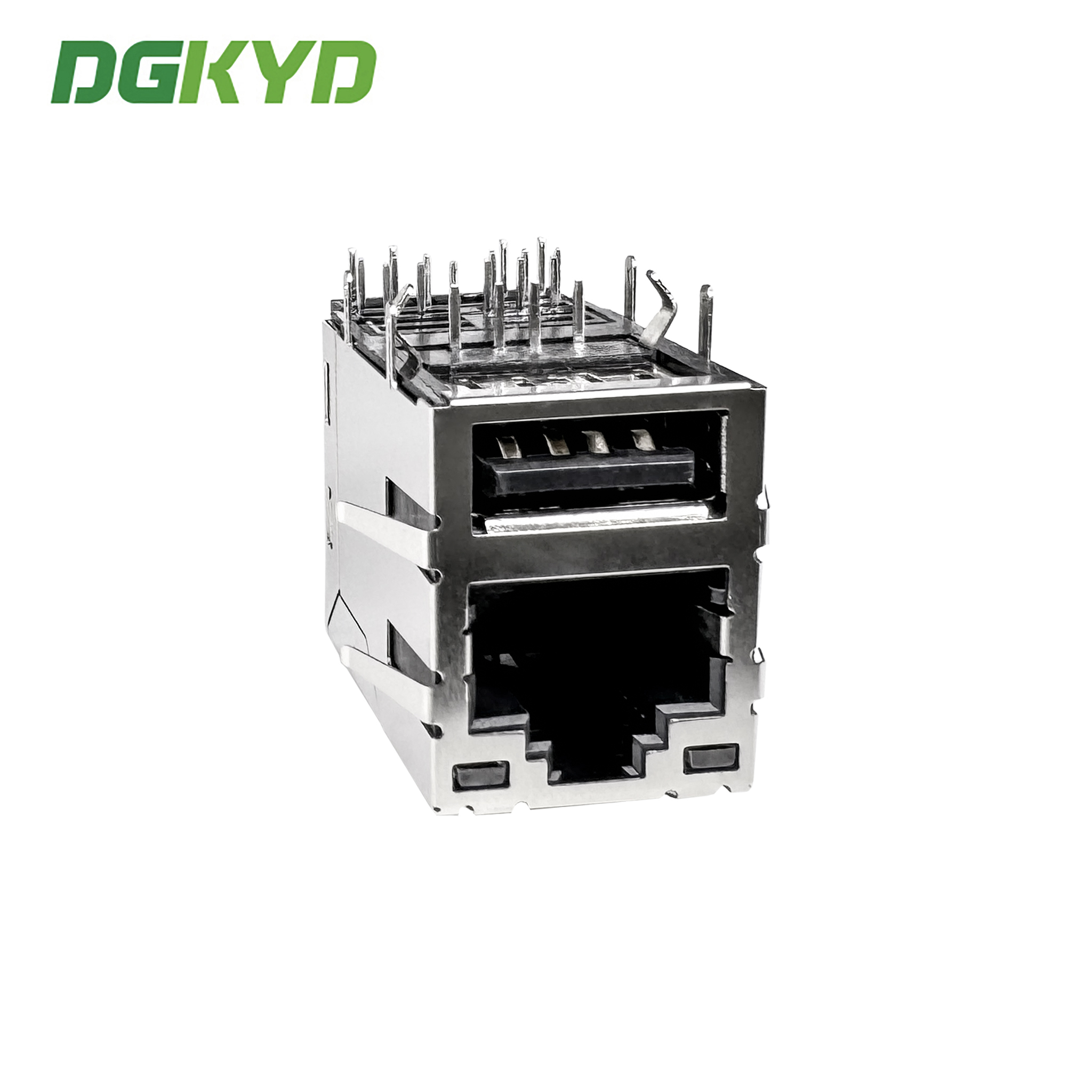

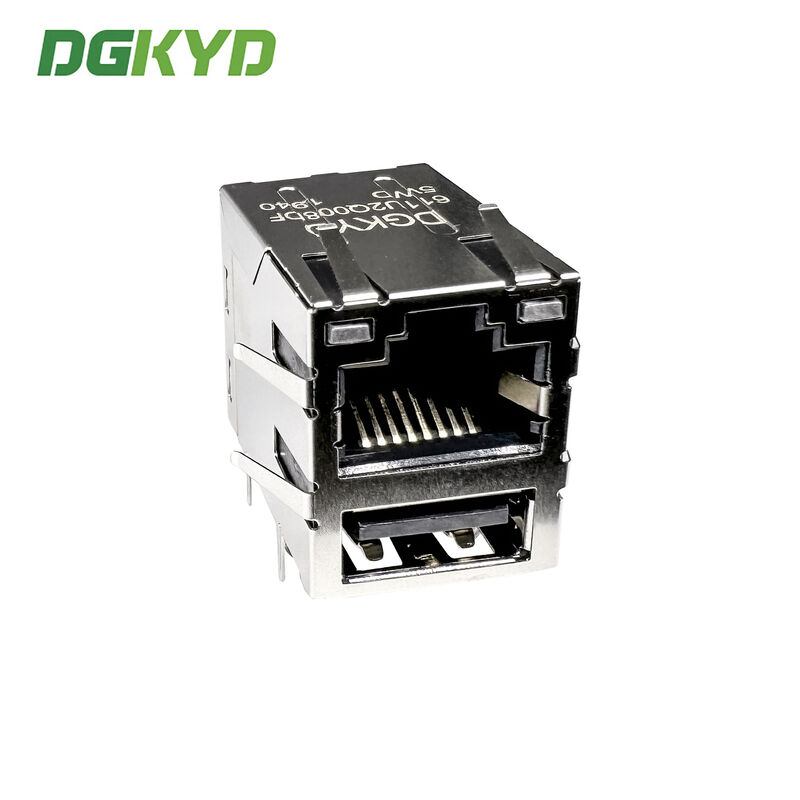

RJ45+USB2.0 Network Connector with LED and Shielding Interface

Part Number: DGKYD611U2Q008DF5WD

Product Overview

This RJ45+USB2.0 network connector features integrated LED indicators and shielding interface socket. Designed for 10/100/1000BASE-T Ethernet applications with built-in magnetics for optimal performance.

Technical Documentation

Technical Specifications

Part Number	DGKYD611U2Q008DF5WD
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	With LED (Green/Orange-Yellow)
Panel Stops	With Panel Stops
Shielded	With metal shield
PCB Mounting	Side Entry (Right Angle)
Contact Plating	Gold 6μ
Housing Material	PBT Polyester (Black)
UL Rating	UL 94V-0
Positions	12
Port Configuration	Single Ports

Product Images

Manufacturer Information

Product Features

Interface type: RJ45 connector for 10/100/1000BASE-T Ethernet applications
Built-in magnetics for filtering and anti-interference
Operating temperature: -40°C to 85°C
Storage temperature: -40°C to 85°C
Lead-free soldering compatible up to 265°C
Customizable LED indicator options (green, yellow, red, orange, blue, bi-color)
EMI shielding fingers optional
Multiple magnetic core coil ratios available
Various contact gold plating thicknesses (3μ, 6μ, 15μ, 30μ, 50μ)
Multiple housing materials (PBT, PA46, PA9T, LCP)

All electrical properties meet industry standards, with mechanical dimensions conforming to manufacturing specifications and environmental protection standards.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the manufacturer. Welcome to visit our factory.

What is your lead time?

For stock products, delivery within 5-7 working days after payment. For customized or out-of-stock items, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on the product?

Yes, as a manufacturer with 11 years of OEM experience, we can fully customize products including branding.
