RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL

Contactar ahora

RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	Bandeja en cartón	Tiempo de entrega :	10 dias
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacidad de la fuente :	100.000 unidades/día

Lugar de origen:	Dongguan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	KRJ-008QUSBNL

Información detallada
Nombre del producto:	RJ45 con transformador	tipo:	Conector combinado
Alojamiento:	Fenolicos, PBT Negro (UL94V-0)	Escudo RJ45:	Sí
No. Puerto:	Puerto único RJ45 con USB	ROHS:	Sí
Estilo de montaje de PCB:	ADEREZO	Número de pines:	8
Número de núcleos:	8	Enchapado de oro en alfileres de contacto:	6U
Temperatura de funcionamiento:	- 40 ℃ ~ 85 ℃	Temperatura de almacenamiento:	- 40 ℃ ~ 85 ℃
Resaltar:	RJ45 USB 2.0 connector with filter , Gigabit network port RJ45 USB , RJ45 USB integrated filter connector

Descripción de producto

RJ45 with USB 2.0 Socket Gigabit Integrated Filter Network Port Connector

Part Number: KRJ-008QUSBNL

Technical Parameters

Parameter	Specification
Part Number	KRJ-008QUSBNL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Port
Number of Positions	12
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
PCB Mounting Style	Through Hole
Termination Method	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
UL Flammability Rating	UL 94V-0

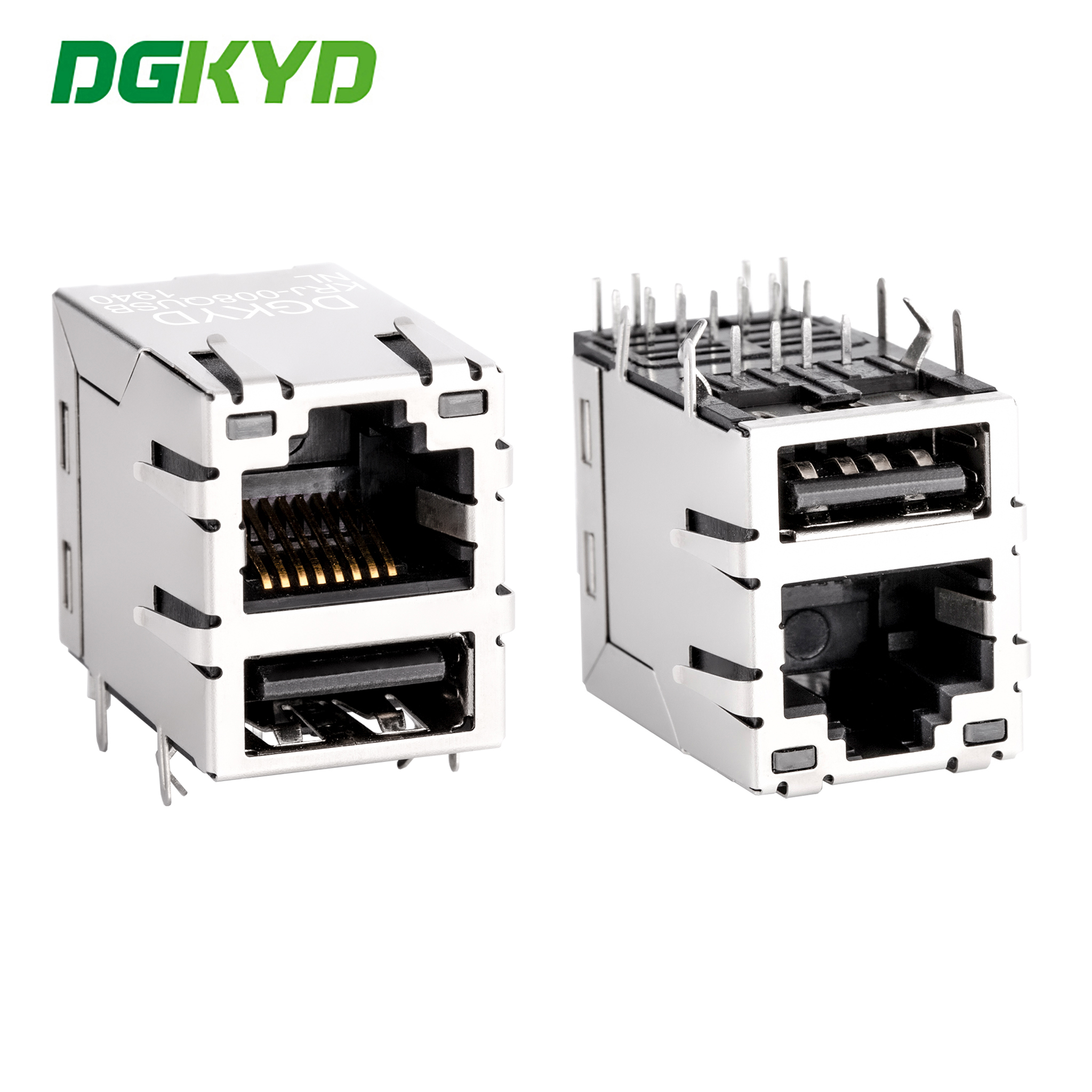

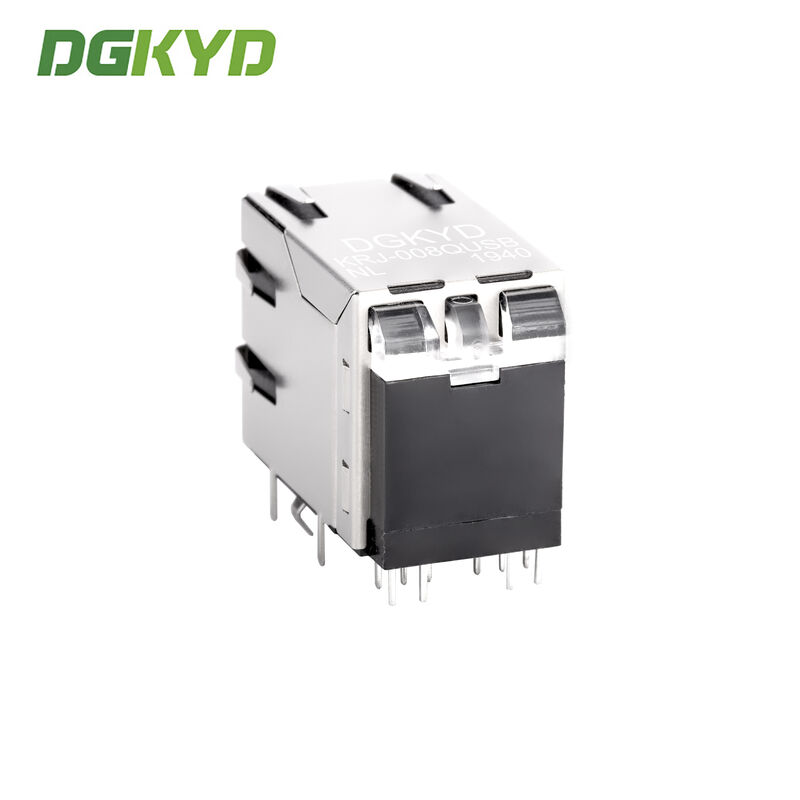

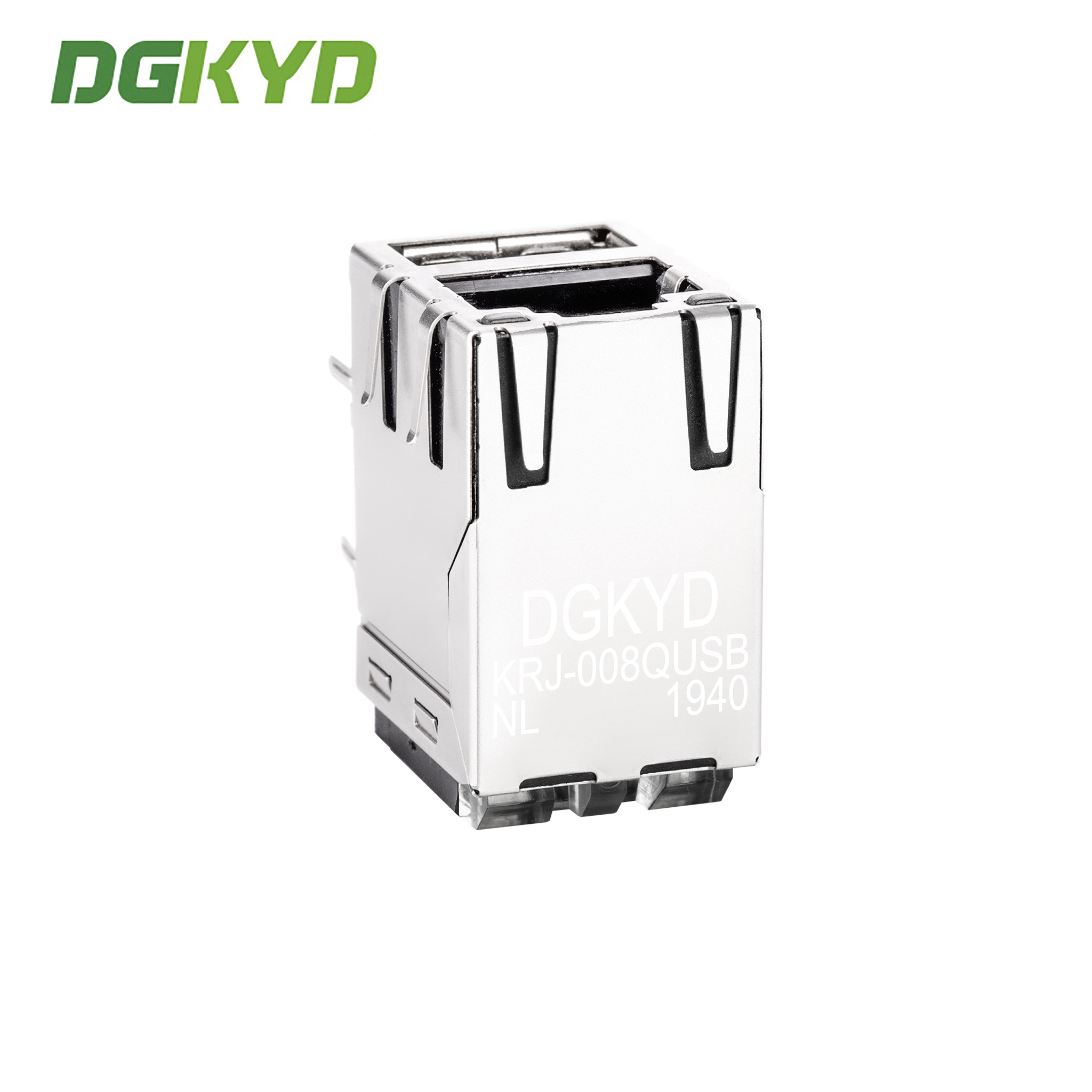

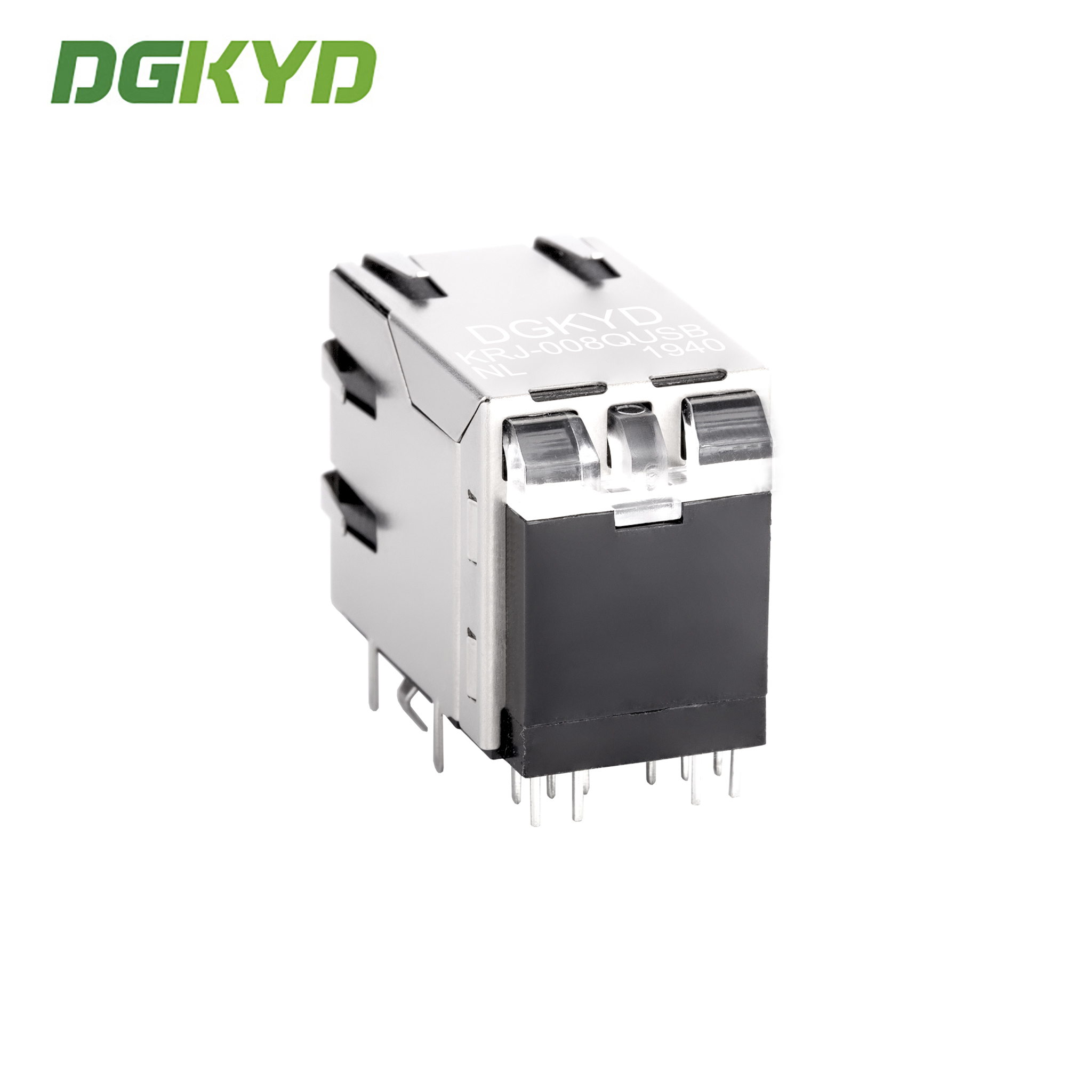

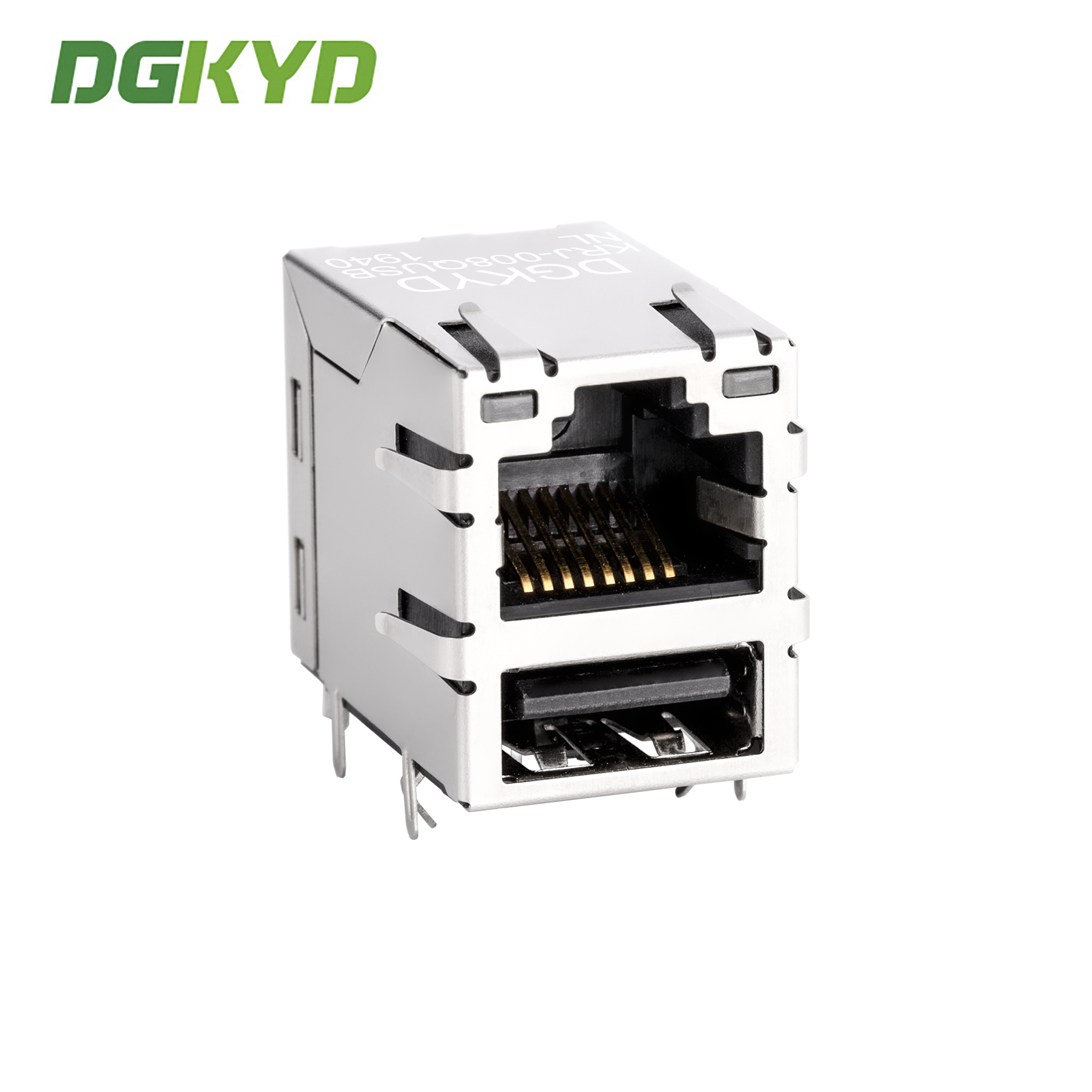

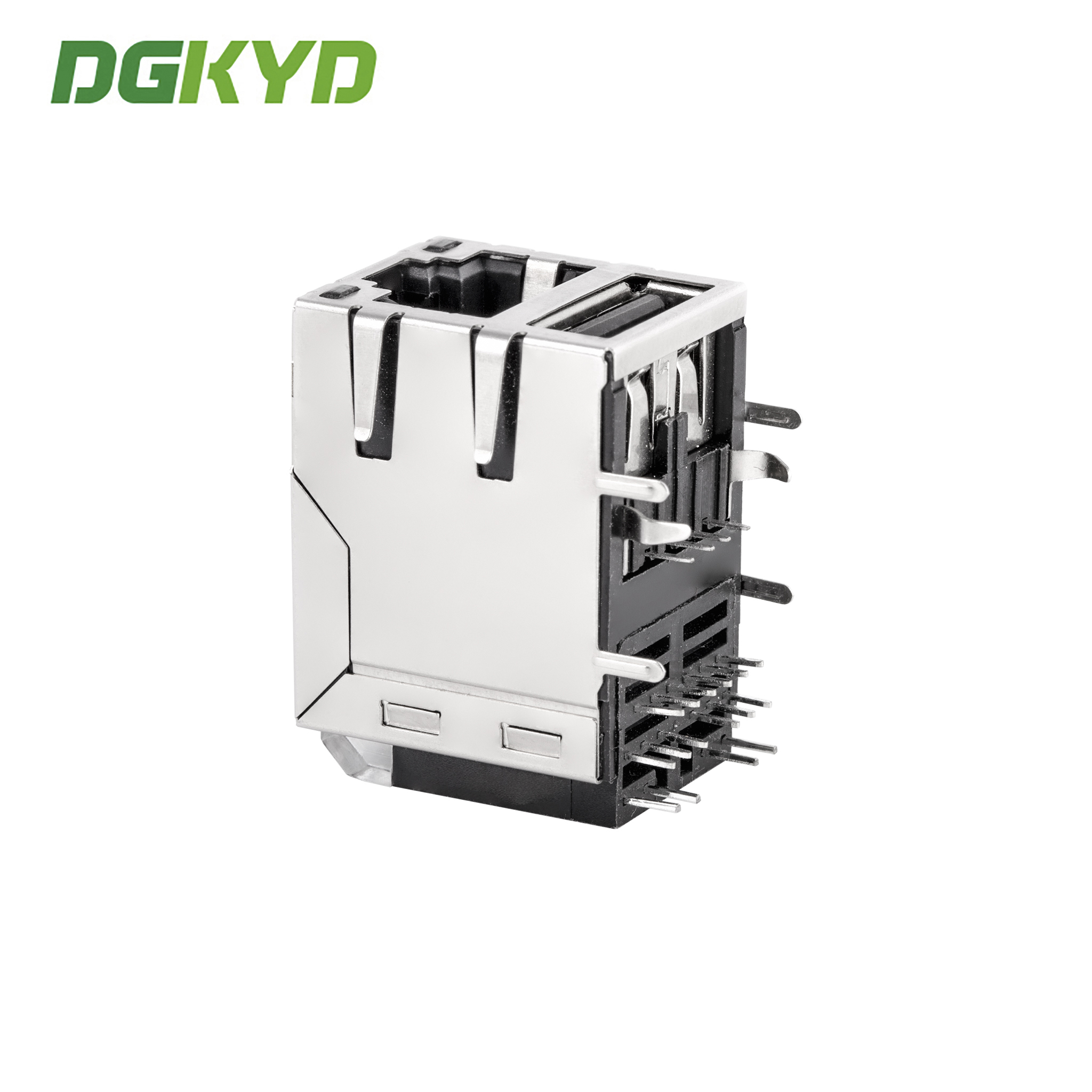

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
