RJ11 Connector All Plastic Lightless Mesh Port Connector 6P6C Without Reinforcement Ribs DGKYD59211166IWA1DY1

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD59211166IWA1DY1

Información detallada
Category:	Phone Jacks	Component Type:	PCB Jack
Type:	RJ11	Magnético:	No hay
Performance Category:	cat 5	Tipo de Insetion:	Entrada lateral
Color:	Black	Clasificación de corriente (amperios):	1.5A
Material:	PBT	Termination:	DIP
Número de modelo:	5921	operation temperature:	-40°C~+85°C
Resaltar:	6P6C RJ11 connector , lightless mesh port RJ11 connector , all plastic RJ11 connector

Descripción de producto

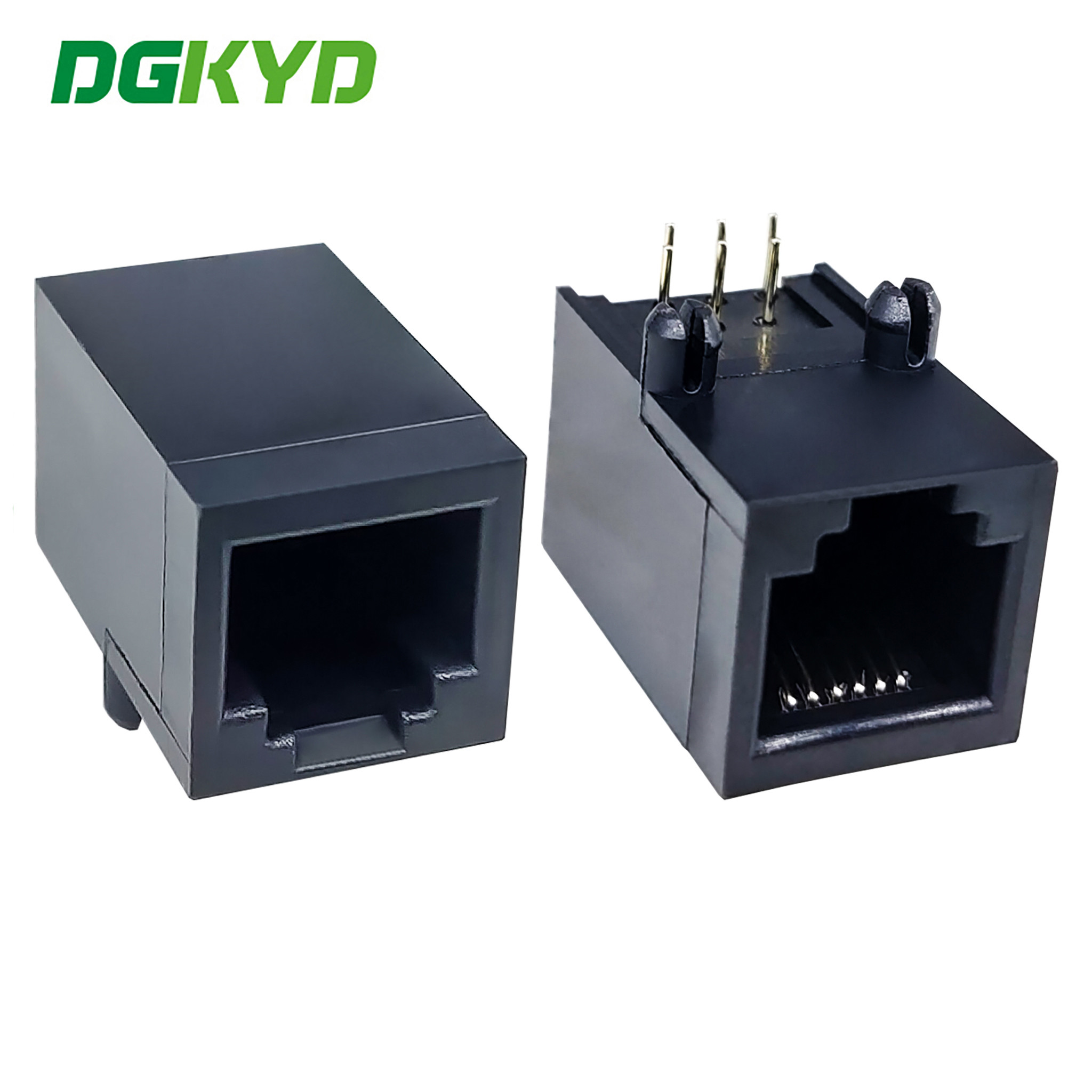

RJ11 connector all plastic lightless mesh port connector 6P6C without reinforcement ribs DGKYD59211166IWA1DY1

Product Specification Document

Parameters

Part Number	DGKYD59211166IWA1DY1	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ11	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	No	Applies To	Printed Circuit Board
Performance Speed	10/100/1000BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	6
Jack Configuration	1X1	Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 0.6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

RJ11 Connector All Plastic Lightless Mesh Port Connector 6P6C Without Reinforcement Ribs DGKYD59211166IWA1DY1 0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
