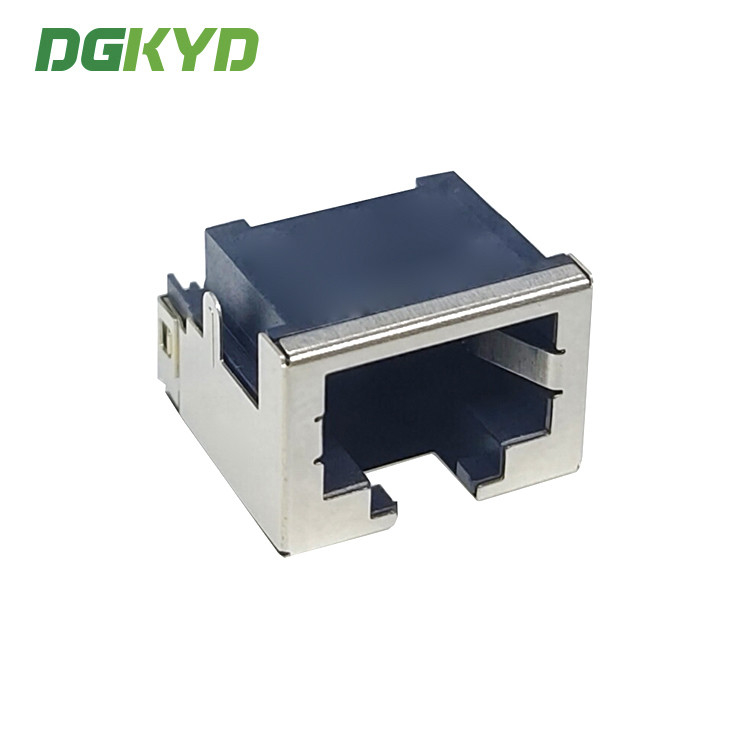

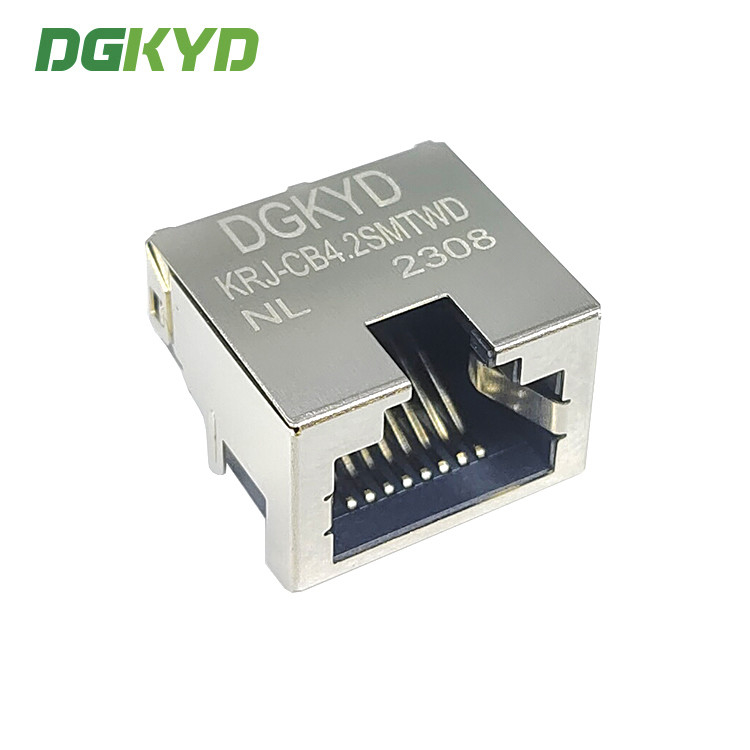

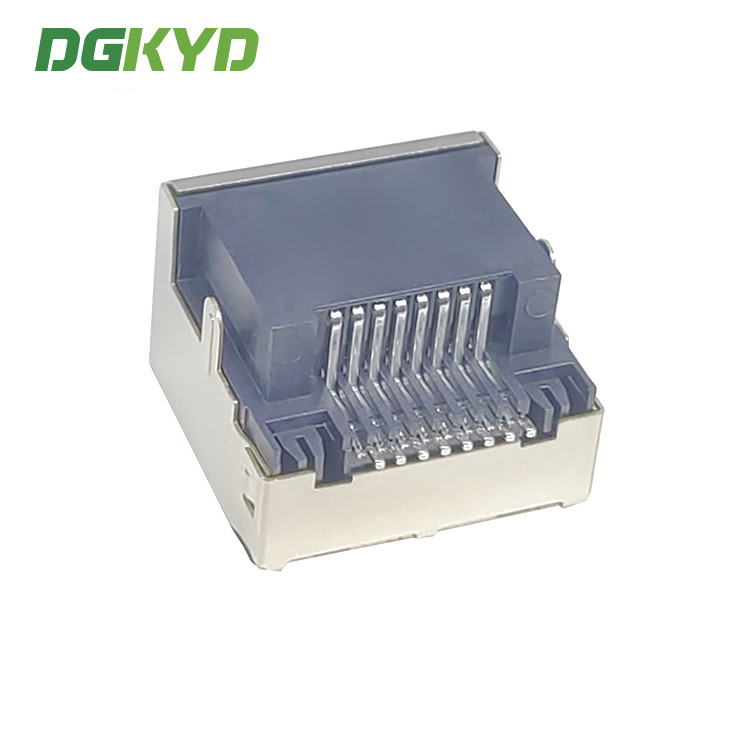

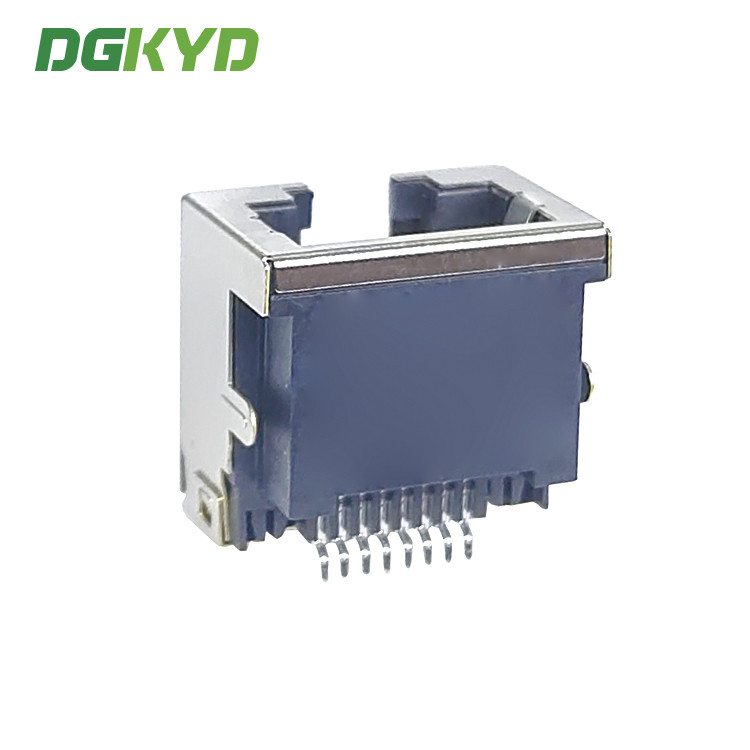

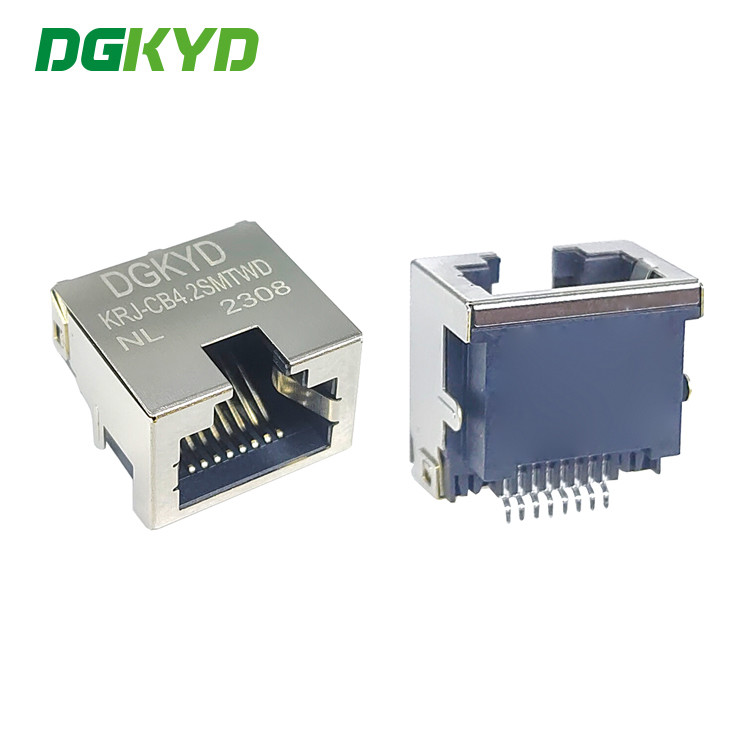

KRJ-CB4.2SMTWDNL Single Port Sink 4.2 RJ45 Network Connector SMD Interface

Cantidad de orden mínima :	1 pieza	Precio :	Please contact us to get the latest price.
Detalles de empaquetado :	bandeja en cartón	Tiempo de entrega :	10 días
Condiciones de pago :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacidad de la fuente :	100 000 piezas por día

Lugar de origen:	DongGuan de China	Nombre de la marca:	DGKYD
Certificación:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número de modelo:	KRJ-CB4.2SMTWDNL

Información detallada
Aplicación:	Los PCB	Características:	Puerto de red protegido RJ45
Sexo:	receptáculo femenino rj45	Nombre del producto:	RJ45 Jack modular
Material de la carcasa:	LCP	Color del LED:	No
El cierre:	- ¿ Por qué?	Plastificación de contacto:	Glod que platea 6u/15u/30u/50u
Resaltar:	SMD RJ45 Network Connector , RJ45 Network Connector , SMT RJ45 Network Connector

Descripción de producto

KRJ-CB4.2SMTWDNL Single-port sink 4.2 RJ45 network connector SMD interface
J45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
Parameters

Part Number	KRJ-CB4.2SMTWDNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
